Copeland Compressor in Cold Storage , Dwm Copeland Compressor D8dh-400 X

China Copeland Compressor in Cold Storage , Dwm Copeland Compressor D8dh-400 X supplier

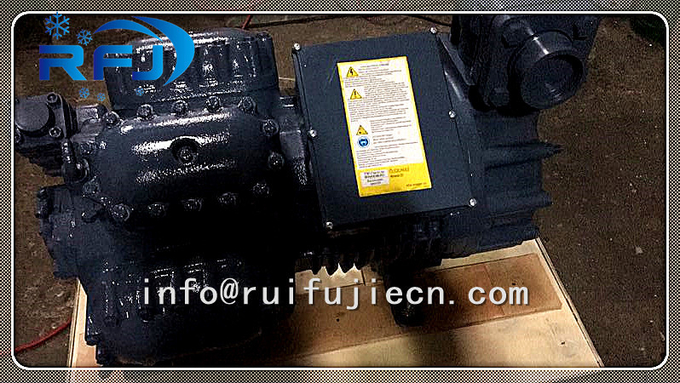

Large Image :  Copeland Compressor in Cold Storage , Dwm Copeland Compressor D8dh-400 X

Product Details:

Place of Origin: germany
Brand Name: copeland
Certification: CE
Model Number: d8dh-400x

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: discussed
Packaging Details: wooden packaging
Delivery Time: 1-7DAYS
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 60PCS
Contact Now
Detailed Product Description
Type: Semi-hermetic Refrigeration Compressor Place Of Origin: Germany
Application: Refrigeration Parts Horse Power: 40HP
Refrigerant: R404 R407C R134A Cylinder Count: 8
Brand: Copeland Power Supply: 380-420V/3/50Hz

Copeland Compressor in Cold Storage , Dwm Copeland Compressor D8dh-400 XCopeland Compressor in Cold Storage , Dwm Copeland Compressor D8dh-400 XModel: D8DH-400 X

Technical data

Cylinder count: 8
Displacement [m³/h]: 151
Weight [kg]: 351
Oil charge [dm³]: 7,7
Max. operating current [A]: 64,5
Locked rotor current [A]: 357
Power supply [V/~/Hz]: 380-420V/3/50Hz

Connections

  milimeters inches
Suction line:   2 5/8"
Discharge line:   1 5/8"



Standard equipment
  • oil pump
  • oil sight glass
  • Rotalock valves
  • thermal protections
Optional equipment
  • additional header cooling
  • oil pressure switch
  • crankcase heater
  • unload starting
  • capacity control

Application
  • high, medium and low temperatures
    (R22 from 12,5 ºC to -50 ºC)
    (R404A/R507 from 7 ºC to -50 ºC)
    (R134a from 12,5 ºC to -20 ºC)
    (R407A from 7 ºC to -45 ºC)

Technical data


Cylinder count: 8
Displacement [m³/h]: 151
Weight [kg]: 347
Oil charge [dm³]: 7,7
Max. operating current [A]: 91,6
Locked rotor current [A]: 444
Power supply [V/~/Hz]: 400V/3/50Hz

Connections

  milimeters inches
Suction line:   2 5/8"
Discharge line:   1 5/8"



Connections
Cooling capacity [kW]
tc te -35 -30 -25 -20 -15 -10 -5
30 24.08 32.02 41.35 52.17 64.57 78.65 94.48
35 21.87 29.71 38.92 49.59 61.80 75.65 91.24
40 - 27.10 36.17 46.67 58.68 72.29 87.61
45 - 24.17 33.08 43.38 55.17 68.54 83.56
50 - - 29.61 39.70 51.26 64.35 79.08
55 - - - 35.60 46.90 59.71 74.11

Power input [kW]
tc te -35 -30 -25 -20 -15 -10 -5
30 15.53 17.90 20.15 22.21 24.00 25.46 26.51
35 15.80 18.46 21.03 23.42 25.56 27.38 28.80
40 - 18.85 21.75 24.49 27.00 29.20 31.02
45 - 19.02 22.27 25.38 28.27 30.87 33.11
50 - - 22.54 26.04 29.34 32.36 35.03
55 - - - 26.42 30.14 33.61 36.74

Current [A]
tc te -35 -30 -25 -20 -15 -10 -5
30 35.56 38.19 40.81 43.29 45.51 47.34 48.65
35 35.86 38.85 41.87 44.78 47.45 49.77 51.61
40 - 39.30 42.75 46.11 49.28 52.12 54.50
45 - 39.49 43.38 47.23 50.92 54.30 57.26
50 - - 43.70 48.07 52.29 56.25 59.82
55 - - - 48.55 53.35 57.91 62.12

Mass flow [kg/s]
tc te -35 -30 -25 -20 -15 -10 -5
30 539.48 707.15 900.50 1 120.65 1 368.71 1 645.80 1 953.04
35 510.80 683.24 881.66 1 107.20 1 360.96 1 644.07 1 957.64
40 - 650.52 854.60 1 086.11 1 346.16 1 635.87 1 956.36
45 - 606.85 817.19 1 055.26 1 322.18 1 619.08 1 947.07
50 - - 767.29 1 012.51 1 286.89 1 591.56 1 927.63
55 - - - 955.73 1 238.16 1 551.18 1 895.93


Capacity : R134a



Copeland Compressor in Cold Storage , Dwm Copeland Compressor D8dh-400 X



Dimensions:




L 835 mm
B 590 mm
H 670 mm

Copeland Compressor in Cold Storage , Dwm Copeland Compressor D8dh-400 X
