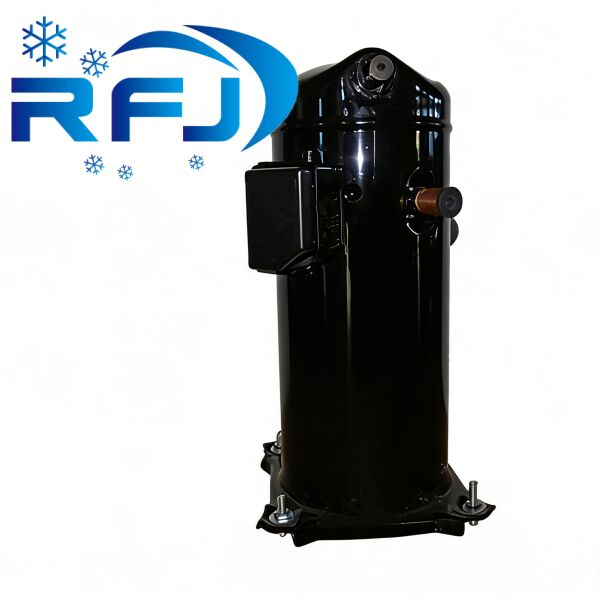

VR Series Ac Scroll Compressor Vr108ks Tfp 522
ac compressor
,commercial refrigeration compressor
90000BTU air conditioning compressor VR108KS-TFP
Product advantages
Scroll Compressor
With reliable performance, superior efficiency, quiet operation, and diagnostic capability, Emerson Climate Technologies offers the most advanced scroll technology available to support your commercial air-conditioning needs. With the widest R-410A selection available, the Scroll compressor offering ranges from 2–40 HP in singles and up to 80 HP in tandems.
Scroll Compressor 2–7 HP
Designed to power high-efficiency air conditioners with its improved scroll set and motor for higher reliability, lower noise, and compact frame;
Comes with Enhanced Vapor Injection (EVI) technology for increased heating capacity;
Allows for the best overall applied cost for high-efficiency systems.
Scroll Compressor 7–15 HP
Designed for superior R-410A efficiency and performance
Features Advanced Scroll Temperature Protection (ASTP) to guard the compressor from the scroll overheating
Light, compact design with smaller suction fittings for applied cost saving
R-410A and R-22/R-407C models in 7–15 HP (tandems up to 30 HP)
Specs table
R407C SERIES ZP/VP series scroll compressor
| Model | Phase | Capacity | Input power | W/W | Voltage | Frequency | Current | Refrigerant | ||
| Btu/hr | w | w | btu/w*hr | w/w | v | Hz | A | |||
| VR84KS-TFP | 3 | 71,000 | 20,900 | 6,000 | 11.80 | 3.50 | 380 | 50Hz | 11.90 | R22 |
| VR94KS-TFP | 3 | 79,500 | 23,300 | 6,750 | 11.80 | 3.50 | 380 | 50Hz | 12.50 | R22 |
| VR108KS-TFP | 3 | 90,000 | 26,400 | 7,550 | 11.90 | 3.50 | 380 | 50Hz | 13.70 | R22 |
| VR125KS-TFP | 3 | 106,000 | 31,100 | 9,000 | 11.80 | 3.50 | 380 | 50Hz | 15.80 | R22 |
| VR144KS-TFP | 3 | 120,000 | 35,200 | 10,100 | 11.90 | 3.50 | 380 | 50Hz | 17.60 |
ZPD Series Scroll Compressor ZPD67KCE-TF5-522
Digital Compressor ZPD61KCE-TFD-522 for Air Conditioning Product description: Scroll™ compressors are designed to deliver the highest performance in residential and commercial applications. Thanks to the widest selection of scroll compressors optimized for air conditioning and heating, it has never ...
13.2KW 5HP Ac Compressor ZPD61KCE-TFD-522
Digital Compressor ZPD61KCE-TFD-522 for Air Conditioning Product description: Scroll Digital compressor increases HVAC system efficiency via capacity modulation and provide energy savings by precisely matching compressor output to your heating or cooling needs. This technology is perfect for ...
12.2A 7HP Air Conditioning Compressor ZPD83KCE-TFD-250
Air Conditioning Digital Compressor ZPD83KCE-TFD-250 for 7 Ton Technical data: Nominal motor power [HP]: 7 Displacement [m³/h]: 13.4 Net Weight [kg]: 45 Gross weight [kg]: 48 Oil charge [dm³]: 1.8 Electrical data: Power supply [V/~/Hz]: 380-420V/3/50Hz Locked rotor current [A]: 74 Max. operating ...
5.5HP Hermetic Digital Compressor ZRD68KC-TFD-433 For Refrigeration
1PH R22 200V Digital Compressor ZRD68KC-TFD-433 for HVAC Description: Scroll Digital ZRDKC Quantum compressor increases HVAC system efficiency via capacity modulation and provide energy savings by precisely matching compressor output to your heating or cooling needs.With the broadest product line ...
