Product Details:
Payment & Shipping Terms:
|
| Type: | Refrigeration Compressor | Application:: | Refrigeration Parts |
|---|---|---|---|
| Shipment Term: | FOB Or Ex-factory | Net Oil Pressure: | 20-60L |
| CYLINDERS: | 6 | NET WEIGHT: | 464 |
| Oil Grade: | 150 | Power Supply [V/~/Hz: | 1 |
| Suction Line: | 2 1/8" | Discharge Line: | 1 3/8" |
| High Light: | copeland semi hermetic compressor,semi hermetic reciprocating compressor |
||

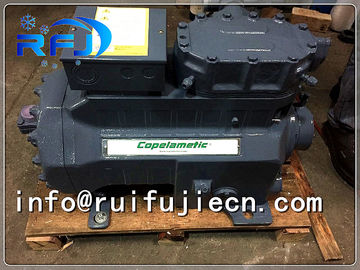

Discus semi hermetic compressor D2DC-500 copeland price refrigerator compressor for sale
| Mechanical Data | |||
| Number of cylinders | 6.0 | Displacement @ 50 Hz, cu.m/h | 127.0 |
| Bore/Stroke, mm | 74.6/55.6 | Length/Width, mm | 760/580 |
| Height, mm | 545.0 | Net Weight, kg | 261.0 |
| Gross Weight, kg | 277.0 | Rotalock Discharge, inch | 1 3/8 |
| Suction, inch | 2 1/8 | Oil Quantity, l | 6.8 |
| Frequency Range, Hz | 25 - 60 | Base mounting (hole dia), mm | 381 x 305 (18.0) |
| High Side PS, bar(g) | 32.5 | Low Side PS, bar(g) | 22.5 |
| Electrical Data | |||
| Maximum Operating Current, A | 83.0 | Locked Rotor Current, A | 304.0 |
| Default Enclosure Class | IP 54 (IEC 34) | ||
| Accessoires | |||
| Mounting Springs | 4 | ||
| Crankcase Heater | 200W Internal | ||
| Additional Cooling | 70W Vertical Air Flow Fan | ||
| Unloaded Start | Available | ||
| Capacity Control | Capacity Steps 66/33% | ||
| Oil Pressure Switch | OPS2 Electronic Switch | ||
| Oil Pressure Switch | OPS2 Sensor | ||
| Enclosure Class | IP56 | ||
| Deep Oil Sump | Mounted | ||
| Adapter Kit | For Parallel Operation | ||
| Check Valve (NRV) | For unloaded start operation | ||
| Oil Control System | ALCO Trax-Oil OM3 | ||
| Related Documentation | |||
|
|||||||||||||||||||||||
| Cylinder count: | 2 | |
| Displacement [m³/h]: | 16,8 | |
| Weight [kg]: | 141 | |
| Oil charge [dm³]: | 2,3 | |
| Max. operating current [A]: | 9 | |
| Locked rotor current [A]: | 55 | |
| Power supply [V/~/Hz]: | 380-420V/3/50Hz |
| milimeters | inches | ||
| Suction line: | 1 3/8" | ||
| Discharge line: |
