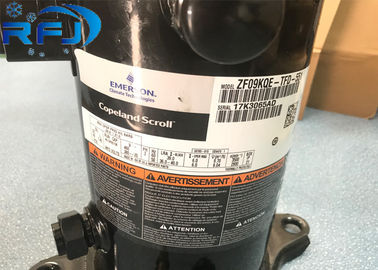

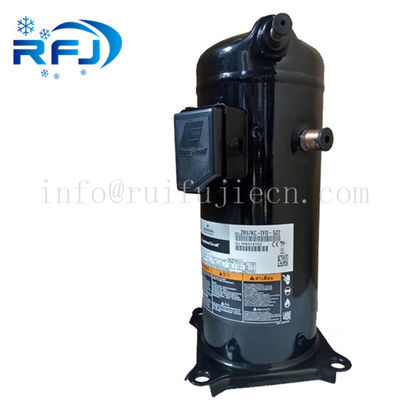

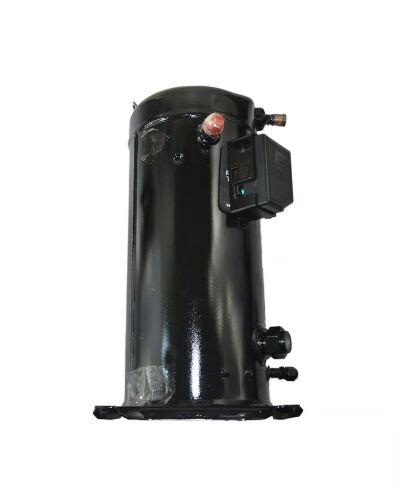

ZF Electric Scroll Compressor , Industrial Refrigeration Compressor ZF09KQE-TFD-551

China ZF Electric Scroll Compressor , Industrial Refrigeration Compressor ZF09KQE-TFD-551 supplier
ZF Electric Scroll Compressor , Industrial Refrigeration Compressor ZF09KQE-TFD-551 supplier ZF Electric Scroll Compressor , Industrial Refrigeration Compressor ZF09KQE-TFD-551 supplier

Large Image :  ZF Electric Scroll Compressor , Industrial Refrigeration Compressor ZF09KQE-TFD-551

Product Details:

Place of Origin: China
Brand Name: Copeland
Certification: CE/SGS
Model Number: ZF09KQE-TFD-551

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Wooden case / Pallet
Delivery Time: 7-10 working days after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Piston Type: Scroll Configuration: Stationary
Power Source: AC Power Drive Mode: Electric
Voltage: 380V Brand: Copeland
Horse Power: 2.8HP Displacement [m3/: 7.3
Refrigerant: R404A/R507 Guarantee: One Year
Net Weight: 27.0kgs Max Operating Curr: 6.0A

Copeland ZF Scroll compressor Model ZF09KQE-TFD-551 for cold room

  1. copeland scroll compressor.
  2. Model number:ZF25KQE-TFD-551.
  3. working R134a and R404a refrigerant.
  4. 380V.
  5. with sight glasses.
  6. up to -40 degree.



ZF Compressor Specifications:

  • Refrigerant: R404/R22 50Hz
  • Low Temperature
  • 2-15HP
  • One model for multi-refrigerants R-404A, R-407A, R-134A certain models and R-22
  • High tolerance to liquid slugging thanks to its axial and radial scroll compliance
  • Large Operating envelope and low condensing capabilities down to 10° C
  • Easy, efficient and reliable liquid injection with Discharge Temperature Control Valve (DTC)
  • Availability of Copeland Scroll Digital® Technology



Description



1.The most competitive price by agency directly



2.High-quality compressor by Emerson



3.High efficiency, low noise



4.used for cold room



Please find more ZF types below and contact us for more information:

ZF Electric Scroll Compressor , Industrial Refrigeration Compressor ZF09KQE-TFD-551



Model No. Nom HP Displ. cc/rev evaporating temperature: °c
-40 -35 -25 -15 -5 0
ZF06KQE TFD550 2 34 900 1134 1600 2450 3300 3960
ZF08KQE TFD550 2.5 41.9 1100 1433 2100 3150 4200 5040
ZF09KQE TFD550 3 46.4 1200 1500 2300 3300 4700 5600
ZF11KQE TFD550 3.5 57.5 1500 1800 2800 4100 5800 7000
ZF13KQE TFD551 4 67.8 1700 2100 3200 4800 6900 8200
ZF15KQE TFD551 5 83.3 2100 2600 3900 5800 8300 10000
ZF18KQE TFD551 6 98.8 250 3100 4800 6900 10000 12000
ZF24KQETWD551 7.5 126 3060 3800 580 8500 12300 14700
ZF33KQETWD551 10 166 4350 5300 8200 12200 17500 20800
ZF40KQETWD551 13 204 5200 6400 10000 14800 21300 25500
ZF48KQETWD551 15 244 6000 7400 11400 16900 24500 29300



Vapor injection is a versatile method of improving system capacity and efficiency in many commercial refrigeration applications. Traditionally the only way to enjoy the added benefits of this type of mechanical subcooling was with a large screw compressor or two semi-hermetic reciprocating compressors. Now the Copeland Scroll® compressor enables significant performance gains with a single compressor. Injecting vapor in the middle of the compression process boosts capacities and efficiencies significantly. Scroll Compressors in Refrigeration Building on the success of scroll compressors in the refrigeration market world-wide, Emerson Climate Technologies, Inc. includes the ZF*KVE family of high efficiency refrigeration scrolls with vapor injection dedicated to low temperature applications. Vapor Injection Circuit for Low Temperature Applications The new scroll range includes 6 models from 4 to 15 HP and is designed to offer high efficiency levels at low evaporating temperatures with R404A and R507. It is the ideal choice for condensing units, parallel racks and distributed refrigeration systems. Copeland Scroll with Vapor Injection The ZF*KVE scroll compressor cycle is similar to a two-stage cycle with interstage cooling but with one single compressor. The high stage consists of extracting a portion of the condenser liquid and expanding it through an expansion valve into a heat exchanger acting as a subcooler. The superheated vapor is then injected into an intermediate port in the scroll compressor. The additional subcooling increases evaporator capacity.
