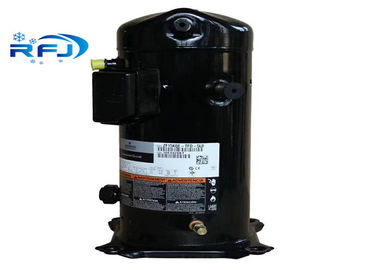

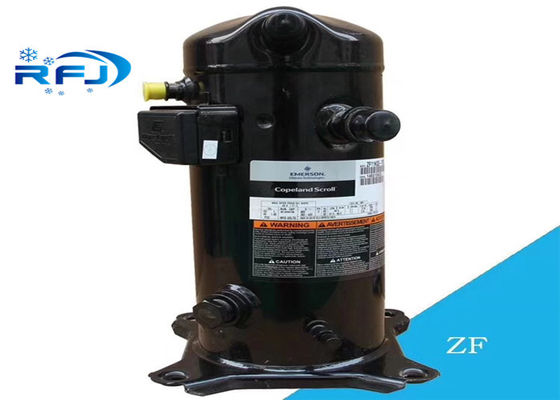

Air Injection Copeland Reciprocating Compressor 10hp ZFI50KQE-TFD CE Certificated

Air Injection Copeland Reciprocating Compressor 10hp ZFI50KQE-TFD CE Certificated
Air Injection Copeland Reciprocating Compressor 10hp ZFI50KQE-TFD CE Certificated Air Injection Copeland Reciprocating Compressor 10hp ZFI50KQE-TFD CE Certificated

Large Image :  Air Injection Copeland Reciprocating Compressor 10hp ZFI50KQE-TFD CE Certificated

Product Details:
Model Number: ZFI50KQE-TFD
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 1USD
Packaging Details: 16PCS / Pallet
Delivery Time: 1-7 working days after receiving payment
Payment Terms: T/T
Supply Ability: 5,000pcs per month
Detailed Product Description
Place Of Origin: Belgium Brand Name: Copeland
Certification: CE Applicable Industri: Hotels, Garment Shops, Building Material Shops, Machinery R
Type: Refrigeration Compressor, Hermetic Scroll Compressor Application: Refrigeration Parts
Horse Power: 10HP Refrigerant: R404A/R507
Evaporating Tempe: Medium And Low Displacement [m3/h: 2
Power Supply [V/~/: 380-420V/3/50Hz Net Weight [kg: 2
Displacement [m3/: 29.1
High Light:

copeland ac compressor

,

copeland a c compressor

10hp copeland compressor with air injection ZFI50KQE-TFD



ZF Compressor Specifications:

  • Refrigerant: R404/R22 50Hz
  • Low Temperature
  • 2-15HP
  • One model for multi-refrigerants R-404A, R-407A, R-134A certain models and R-22
  • High tolerance to liquid slugging thanks to its axial and radial scroll compliance
  • Large Operating envelope and low condensing capabilities down to 10° C
  • Easy, efficient and reliable liquid injection with Discharge Temperature Control Valve (DTC)
  • Availability of Copeland Scroll Digital® Technology


Description

1. The most competitive price by agency directly

2. High-quality compressor by Emerson

3. High efficiency, low noise

4. used for cold room

Air Injection Copeland Reciprocating Compressor 10hp ZFI50KQE-TFD CE Certificated 0

Model ZFI20KQE-TFD-551 ZFI26KQE-TFD-551 ZFI36KQE-TFD-551 ZFI50KQE-TFD-551
Diaplacement 9.0 13.7 16.0 25.0
(M3/one hour)
LRA(A) 40 46 64 74
RLA(A) 5 6.4 8.6 8.9
MCC(A) 7 9 12 12.5
Crank heater(W) 70W 70W 70W 70W
Discharge 1 1/4" 1 1/4" 1 1/4" 1 3/4"
Suction 1" 1" 1 1/4" 1 1/4"
Sizes(mm)
L 257 308 308 363
W 246 246 246 312
H 438 438 438 546
Oil fill(L) 1.89 1.89 1.89 3.37
Gross weight(kgs) 39 39 39



63


Model No. Nom HP Displ. cc/rev evaporating temperature: °c
-40 -35 -25 -15 -5 0
ZFI20KQE-TFD 4HP 11.7



3.46



4.31 6.33 8.93 12.20 14.05
ZFI26KQE-TFD 6HP 17.1 5.20 6.40 9.31 27.10 36.80 42.30
ZFI36KQE-TFD 7.5HP 21.4 6.52 8.06 11.85 16.35 22.20
ZFI50KQE-TFD 10HP 29.1 8.94 11.05 16.00 22.40 30.40
ZFI59KQE-TFD 13HP 35.3 11.05 13.65 19.80 27.10 36.80
ZFI68KQE-TFD 15HP 42.4 12.55 15.50 21.50



Vapor injection is a versatile method of improving system capacity and efficiency in many commercial refrigeration applications. Traditionally the only way to enjoy the added benefits of this type of mechanical subcooling was with a large screw compressor or two semi-hermetic reciprocating compressors. Now the Copeland Scroll® compressor enables significant performance gains with a single compressor. Injecting vapor in the middle of the compression process boosts capacities and efficiencies significantly. Scroll Compressors in Refrigeration Building on the success of scroll compressors in the refrigeration market world-wide, Emerson Climate Technologies, Inc. includes the ZF*KVE family of high efficiency refrigeration scrolls with vapor injection dedicated to low temperature applications. Vapor Injection Circuit for Low Temperature Applications The new scroll range includes 6 models from 4 to 15 HP and is designed to offer high efficiency levels at low evaporating temperatures with R404A and R507. It is the ideal choice for condensing units, parallel racks and distributed refrigeration systems. Copeland Scroll with Vapor Injection The ZF*KVE scroll compressor cycle is similar to a two-stage cycle with interstage cooling but with one single compressor. The high stage consists of extracting a portion of the condenser liquid and expanding it through an expansion valve into a heat exchanger acting as a subcooler. The superheated vapor is then injected into an intermediate port in the scroll compressor. The additional subcooling increases evaporator capacity.



Air Injection Copeland Reciprocating Compressor 10hp ZFI50KQE-TFD CE Certificated 1

Air Injection Copeland Reciprocating Compressor 10hp ZFI50KQE-TFD CE Certificated 2
