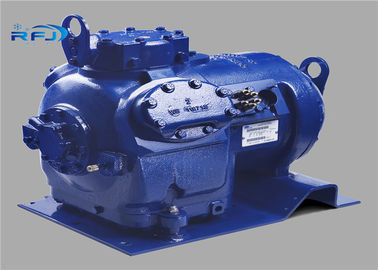

Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge

China Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge supplier
Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge supplier Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge supplier Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge supplier Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge supplier

Large Image :  Commercial Refrigeration Condensing Units 69NT40-511-318 3.6 Liters Oil Charge

Product Details:

Place of Origin: USA
Brand Name: Carrier
Certification: CE
Model Number: 69NT40-511-318

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Discussed
Packaging Details: Wooden package
Delivery Time: 7-12 working days
Supply Ability: 1000 pieces a month
Contact Now
Detailed Product Description
Cylinders: 6 CFM: 41
Weight (Dry): 118 Kg Approved Oil: Mobil ST32
Oil Charge: 3.6 Liters (7.6 U.S. Pints) Brand: Carrier
Type: Condensing Unit

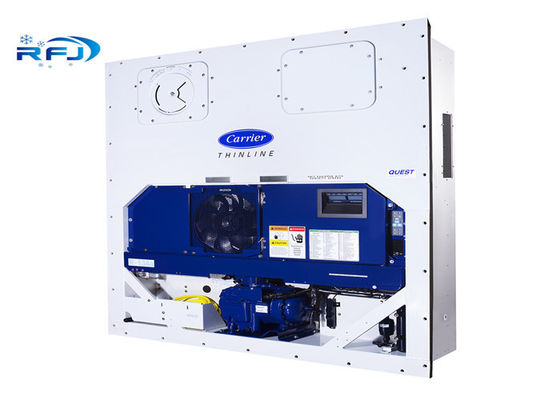

Carrier Transicold Container Refrigeration Units 69NT40-511-318



  The unit is designed so that the majority of the components are accessible. The upper access panels allow entry into the evaporator section, and the center access panel allows access to the thermostatic expansion valve and evaporator coil heaters. The unit model number, serial number and parts identification number can be found on the serial plate to the left of the compressor.

ELECTRICAL DATA

Compressor Motor Full Load Amps (FLA) 17.6 amps @ 460 vac
(with current limiting set at 21 amps)
Condenser Fan Motor   380 vac, Single Phase,50 hz 460 vac, Single Phase,60hz
Full Load Amps 1.3 amps 1.6 amps
Horse Power 0.43hp 0.75hp
Rotations Per Minute 1425 rpm 1725 rpm
Voltage and Frequency 360 - 460 vac ± 2.5 hz 400 - 500 vac ¦± 2.5 hz
Bearing Lubrication Factory lubricated, additional grease not required.
Rotation Counter-clockwise when viewed from shaft end.
Drain Pan Heaters Number of Heaters 0 or 1
Rating 750 watts +5 / - 10 % @ 460 vac
Resistance (cold) 285 ± 7.5% ohms @ 20 _C (68 _F)
Type Sheath
Evaporator Coil Heaters Number of Heaters 4 or 6
Rating 750 watts +5/ - 10% each @ 230 vac
Resistance (cold) 66.8 to 77.2 ohms @ 20 _C (68 _F)
Type Sheath
Evaporator Fan Motor   380 vac/50 hz 460 vac/50 hz
Full Load Amps
High Speed
1.6 2
Full Load Amps
Low Speed
0.8 1
Nominal Horsepower
High Speed
0.7 0.84
Nominal Horsepower
Low Speed
0.09 0.11
Rotations Per Minute
High Speed
2850 rpm 3450 rpm
Rotations Per Minute
Low Speed
1425 rpm 1750 rpm
Voltage and Frequency 360 - 460 vac ± 1.25 hz 400 - 500 vac ± 1.5 hz
Voltage & Frequency using power autotransformer 180 - 230 vac ± 1.25hz 200 - 250 vac ± 1.5 hz
Bearing Lubrication Factory lubricated, additional grease not required
Rotation CW when viewed from shaft end

F&Q

1. Where is your company?

we are located in Shenzhen, Guangdong Province, near to Hong Kong, very convenient for shipping.



2. How about the MOQ?

1 unit is ok.


3. Shipping methods and lead time?

By Express: 5-7 working days to your door (DHL, UPS, TNT, FedEx...).

By Air: 7-10 working days to your airport.

By Sea: Pls advise your port of destination, the exact days will be confirmed by our forwarders, and the following lead time is for your reference.

Europe and America (25 - 35 days), Asia (3-7 days), Australia ( 16-23 days).





Our main compressor lines are :
· Bitzer compressors,

Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

· performer compressors: SM, SZ, SH SERIES

· commercial compressors: FR, SC SERIES

· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

Secop compressor, Carrier(Carlyle) compressor

Hitachi compressor,Daikin compressor, Sanyo compressor

Tecumseh compressor, LG compressor, Mitsubishi compressor,

Toshiba compressor, Panasonic compressor, Embraci Aspera compressor



Also , Bitzer, Carel, Dixell original valves, controls and selected parts

· TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES

· ETS SERIES EXPANSION VAVLES,
· EVR SERIES ECPANSION VAVLES AND

· KP1,KP5,KP15 SERIES PRESSURE CONTROLS

· DCL DML LIQUID LINE FILTER DRIERS
