Product Details:
Payment & Shipping Terms:
|
| Brand: | Maneurop | Refrigerant: | R22 |
|---|---|---|---|
| Power Supply [V/Ph/Hz: | 2 | Net Weight: | 23 Kg |
| Colour: | Blue | Configuration Code: | Single |
| High Side TS Max: | 150 °C | High Side TS Min: | -35 °C |
| Low Side TS Max: | 50 °C | Low Side Volume: | 7.5 L |
| High Light: | scroll compressor refrigeration,copeland refrigeration compressors |
||

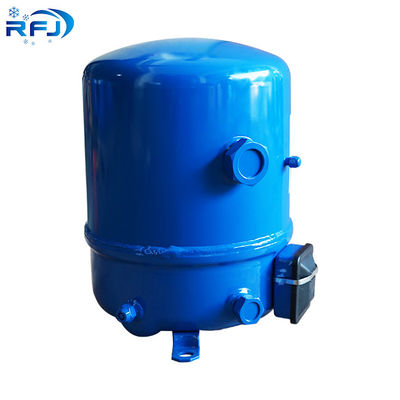

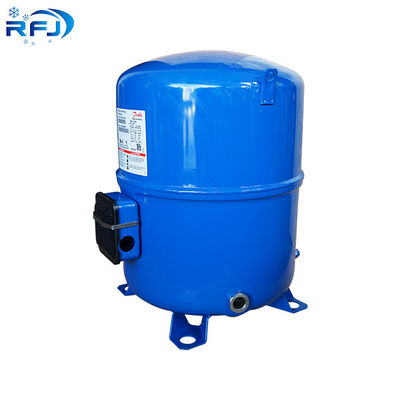

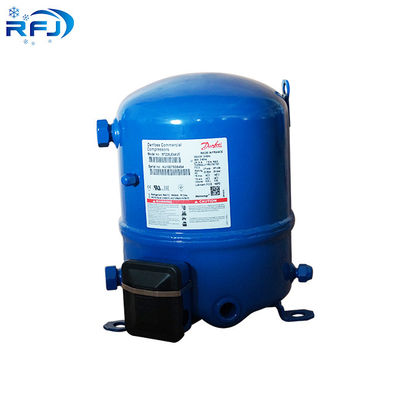

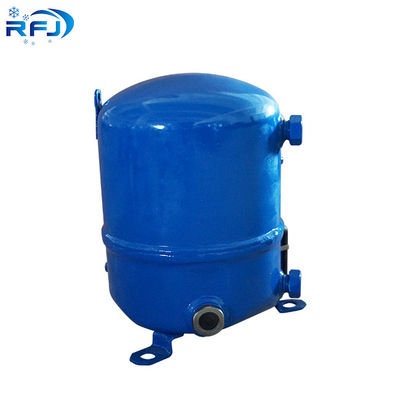

50/60HZ Maneurop Reciprocating MT series Compressors MT22-4VM for Air conditioning
1, Product Description:
Motor protection:Internal overload protector
Compressor power supply [V/Ph/Hz]:380-400/3/50 460/3/60
Capacity control:Fixed speed
Power connections:Spade
Power Source: AC Power
Frequency [Hz]:50/60
Colour:Blue
Phase:3
Transport Package: Wood Package
Lubrication Style: Lubricated
2.product feature and application:
High Temperature. BtuH Capacity @ 45°F Evap. 78103. Compressor
Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications. Refrigerant: R134a; R404A; R407A; R407C; R407F; R448A; R449A; R452A; R507A; R513A, Segment usage: Air conditioning;Refrigeration MT, Compressor power supply [V/Ph/Hz]: 400/3/50 460/3/60
3.Product details
| Model | Swept Volume (cm3/rev) | Cylinder Number |
Oil change (dm3) |
Net weight (kg) |
| MTZ018 | 30 | 1 | 0.95 | 21 |
| MTZ022 | 38 | 1 | 0.95 | 21 |
| MTZ028 | 48 | 1 | 0.95 | 23 |
| MTZ032 | 54 | 1 | 0.95 | 24 |
| MTZ064 | 108 | 2 | 1.80 | 39 |
| MTZ080 | 136 | 2 | 1.80 | 40 |
| MTZ160 | 272 | 4 | 3.90 | 67 |
4. Our main compressor lines are:
· compressors
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Copeland compressors: VR, ZR, ZB, ZH SERIES
· Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
