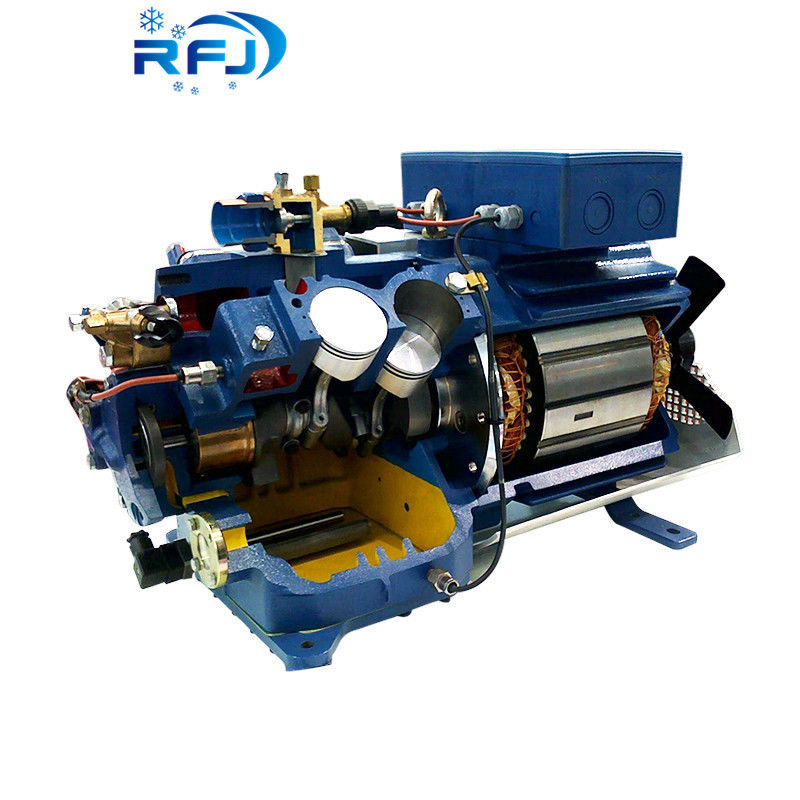

sermi hermetic Compresor BOCK GEA HG series of model HG34e/215-4 de 3CV in refrigeration
1, Product Description:
Model:HG34e/215-4 de 3CV
Place of Origin:Germany
Certification:CE
Weight:92 kg
Motor protection:INT69 G
Displacemint:5.4/6.4m³/h
Dimension:415mm/220mm/280m
2.product feature and application:
Blog ESS soft boot (electronic soft starter), 400 v-3-50/60 Hz, IP20 (connection clip IP00), installed in the electric control box. 5)
Energy regulator 230 v-1-50/60 Hz, IP65
1 regulating valve = 50% refrigeration capacity regulation
Blog EFC stepless speed converter (electronic converter),
Compact installation on the compressor, connected, in standby state.The HA/HG12P: IP65HA22P/HG22e, HA34P/HG34e: IP54Cylinder cover for valve adjustmentTank heater110-240 v-1-50/60 Hz, 50-120 W, IP66,PTC heater, automatic adjustmentOil pressure protection safety switch MP 55 230 v-1-50/60 Hz, IP205)Exhaust thermal protection for all cylinder heads 6)Additional fan 230 V D / 400 V Y (± 10%) -3-50 Hz, 120 W,230-265 V D / 400-460 V Y (± 10%) -3-60 Hz, 190 W, IP545) Special voltage/frequency (available on request)
3.Product details
|
Application:
|
Heater Parts
|
|
Voltage
|
380v-420v /3 Ph / 50Hz
|
|
Weight
|
49kg
|
|
Running current:
|
40/23A B
|
|
Motor protection
|
INT69 G
|
|
Oil charge
|
0,8 Ltr.
|
This compressor is imported from Germany. HG series has the following features: 1. Generality a compressor can be used with a variety of standard refrigerants, such as: Everything, R404A, R507, R407C, R22 is suitable for air conditioning, refrigeration and cryogenics applications - maximum allowable operating pressure for 28 bar 2 -, high energy efficiency ratio optimization of air flow channel - efficient valve plate - relatively xiao yu gap volume - three powerful energy saving motor, application range, without additional cooling cooling compressor suction type (HG) using R404A, R507 four and reliable valve plate can be used for low temperature freezing design - universal valve plate design, vacuum exhaust valve type of tongue, One-side fixing -- the valve plate is made of high quality impact resistant spring steel. Motor maintenance compressor can be replaced on site. 6. 6 cylinders: 33%66%; 8 cylinders: 25%, 50%, 75%- stepless speed regulation (25-70hz) can be realized by using external inverter EFC/EFCe. Refer to "blog semi-enclosed compressor - electronic control" (7), relatively small installation space, especially small installation height and width requirements (8), silent and low vibration - large size crankshaft - optimal dynamic balance - large volume exhaust chamber, effective vibration reduction and noise reduction - starting from 19m3h displacement can be provided with a 4-cylinder machine
4. Our main compressor lines are:
· compressors
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Copeland compressors: VR, ZR, ZB, ZH SERIES
· Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
