Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Brand: | DIXELL |
|---|---|---|---|
| Displacement: | 6.8cc/rev | Capacity: | 10kBtu/h |
| COP: | 7.5W/W | Power Supply: | 110-220V/3/50Hz |
| Weight [kg: | 2 | Winding Resistance [Ω: | 2 |
| High Light: | refrigeration and air conditioning tools and equipment,refrigerator tools |
||

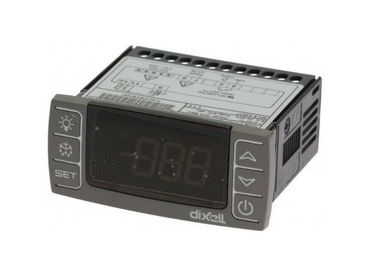

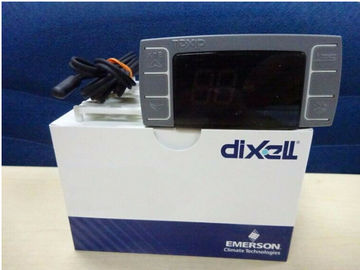

Dixell Intelligent Digital temperature Controllers XR06CX-5N0C1 for cooling equipment
1, Product Description:
Model NO: XR06CX-5N0C1Cooling System: Air Cooling
Cylinder Position: Vertical
Nominal motor power [HP]: depends on compressor
Displacement [m³/h]:1.8
Weight [kg]: 0.65
Oil charge [dm³]:No
Electrical data :
Power supply [V/~/Hz]: 110-220V/3/50Hz
Locked rotor current [A]:2.15
Max. operating current [A]: 5
Winding resistance [Ω]: 1.26
Connections:
Suction line: 5/8"
Discharge line: 1/2"
2,product feature and application:

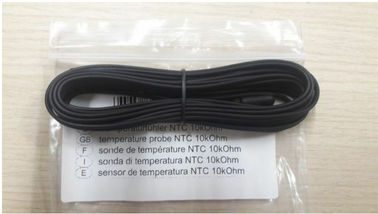

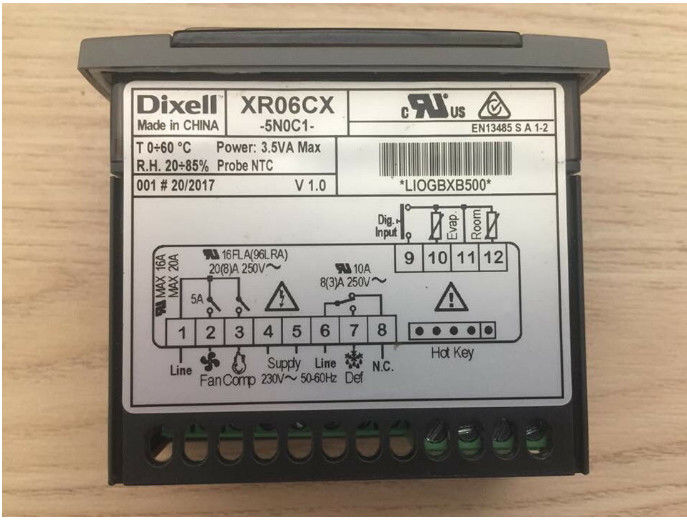

Technical parameters: ABS matte color flame retardant plastic; External dimension: front 32x74mm; Deep 60 mm; Mounting dimension: fixed on the panel with an opening of 71x29mm; Overall protection level: IP20; Front panel protection grade: IP65; Terminal: bolt compression, wire diameter ≤ 2.5mm2; Power supply: according to the model: 12Vac/dc,±10%; 24 vac/dc, plus or minus 10%; 230 vac plus or minus 10%, 50/60 hz; 110 vac plus or minus 10%, 50/60 hz. Please refer to the name tag on the product. Power consumption: Max. 3VA; Display: 2-bit red digital tube, 14.2 mm high; Input: up to 2 NTC input digital input: passive switch output relay: compressor, 8 (3) A SPST, Italy elf electronic thermostat XR06CX instruction) _word document read online and download _ document https://www.wendangwang.com/doc/8e010377ca47a278d089f82c/3 250 vac or SPST 16 (6) A (8), 20 A 250 vac or 250 vac defrosting: SPDT 8(3) A, 250Vac evaporator fan: SPST 8(3) A, 250Vac or SPST 5(2) A data storage: electrically erasable electrically writable memory (EEPROM). Control level: 1B;
General alarm (iF=EA) once the digital input alarm is activated and the thermostat waits for the "di" parameter setting time, the "EA" alarm information will be displayed iF the digital input is still valid. All relay output state is unchanged, when the digital input is invalid, the alarm will stop immediately. Serious alarm (iF=bA) once the digital input alarm is activated, the thermostat waits for the time when the "di" parameter is set, and iF the digital input is still valid, the "CA" alarm information will be displayed.
3.Product details
| Model | XR06CX-5N0C1 |
| Brand |
DIXELL
|
| Power | 110-220V/3/50Hz |
| Displacement | 6.8cc/rev |
| Capacity | 10kBtu/h |
| COP | 7.5W/W |
| Package | 1pc/box package |
| Certification | CE |
| Application | Air conditioning, HVAC system |
4. Product qualification
Certificate, certification, patent certificate:
1)."Quality Management System Certification"
2)."Shenzhen Science and Technology Enterprise Certification"
3)."Refrigeration Equipment Air Conditioning Maintenance and Installation Enterprise Qualification Certificate"
5. FAQ
1). What is your MOQ?
---Our MOQ is usually 1 set.
2). What is the price?
---The price is depends on the quantity
3). What is your delievery time?
---The time of delievery is 3-10 working days after payment.
4).What is your main products?
1.Scroll:Copeland, performer,hitachi,Daikin,Sanyo
2.Piston:Maneurop MT,NTZ,MTZ series.
3.Semi-hermetic:Copeland,
4.Freezer compressor:Tecumseh
5.Rotary compressor:Toshiba,Panasonic
