| Package: | 16pcs/pallet | Application: | HVAC System |
|---|---|---|---|
| Nominal Motor Power: | 2HP | Locked Rotor Current: | 26A |
| MOC: | 5A | Displacement: | 7.1m³/hr |
| High Light: | scroll compressor refrigeration,copeland refrigeration compressors |
||

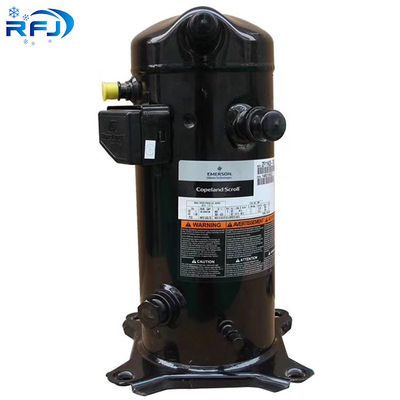

Low Temperature Copeland Scroll Compressor ZF06KQE-TFD-551 for Refrigeration POE oil
Product description:
ZF Series Copeland Scroll Compressor
Model NO.: ZF06KQE-TFD-551 2HP
Cooling System: Air Cooling
Cylinder Position: Vertical
Compress Level: Single-Stage
Performance: Low Noise
Drive Mode: Electromagnetic
Power Source: AC Power
Mute: Mute
Transport Package: Pallet
Origin: China
Technical data:
Nominal motor power [HP]: 2
Displacement [m³/hr]: 7.1
Weight [kg]: 25
Oil charge [dm³]: 1.3
Electrical data :
Power supply [V/~/Hz]: 380-420V/3/50Hz, 460V/3/60Hz
Locked rotor current [A]: 26
Max. operating current [A]: 5
Winding resistance [Ω]: 7.15
Connections:
Suction line: 1/4"
Discharge line: 1"
| Model | ZF06KQE-TFD-551 |
| Application | Refrigeartion |
| MOQ | 1 SET |
| Gross weight | 25kg |
| Gross deminsion | 40*40*70cm |
The new scroll range includes 6 models from 4 to 15 HP and is designed to offer high efficiency levels at low evaporating temperatures with R404A and R507. It is the ideal choice for condensing units, parallel racks and distributed refrigeration systems. Copeland Scroll with Vapor Injection The ZF*KVE scroll compressor cycle is similar to a two-stage cycle with interstage cooling but with one single compressor. The high stage consists of extracting a portion of the condenser liquid and expanding it through an expansion valve into a heat exchanger acting as a subcooler. The superheated vapor is then injected into an intermediate port in the scroll compressor. The additional subcooling increases evaporator capacity.
