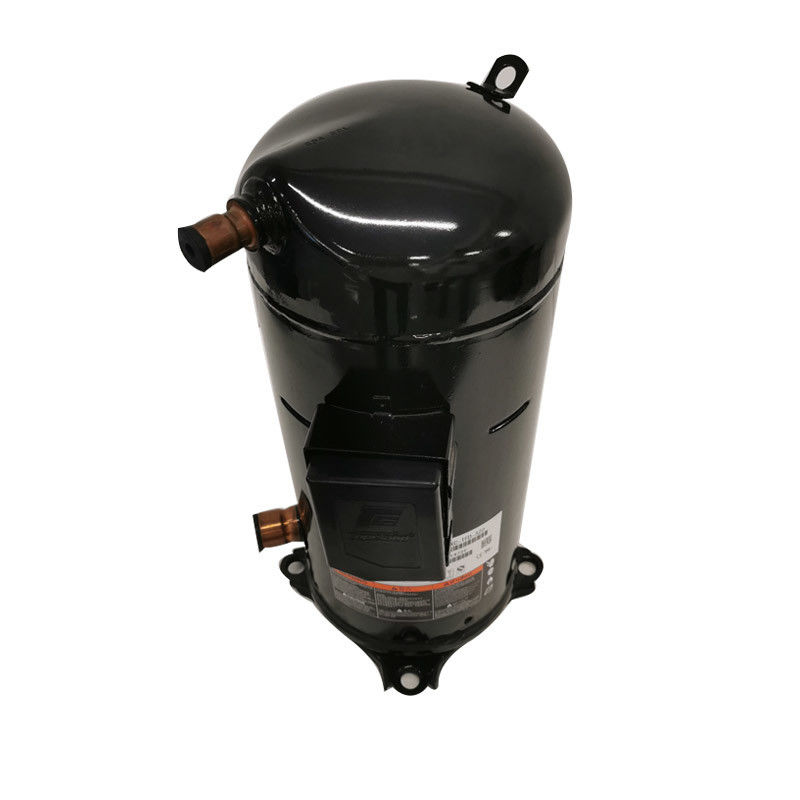

Zh30K4e-Tfd 3.5HP Copeland Air Conditioning Compressors

Zh30K4e-Tfd 3.5HP Copeland Air Conditioning Compressors
Zh30K4e-Tfd 3.5HP Copeland Air Conditioning Compressors

Large Image :  Zh30K4e-Tfd 3.5HP Copeland Air Conditioning Compressors

Product Details:
Place of Origin: china
Brand Name: copeland
Certification: CE
Model Number: Zh30K4e-Tfd
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: community
Packaging Details: wooden box
Delivery Time: 5-8 days after payment
Payment Terms: T/T, Western Union
Supply Ability: 10000pcs /week
Detailed Product Description
Type: Refrigerator Compressor Nominal Engine Power: 4
Volumetric Capacity: 11.7 Weight [kg: 2
Oil Charge: 1,5 Power Supply: 380-420V/3/50Hz
Winding Resistance: 3.64 Displacement: 8.04 M³/h
High Light:

Copeland Hermetic Compressors

,

Zh30K4e-Tfd

3.5HP High Efficiency Zh30K4e-Tfd - Copeland Zh - Hermetic Compressors for Air Conditioning



1, Product Description:




Technical data
Type: Hermetic piston compressors
Producer: Copeland
Series: ZH  Model: ZH30K4E-TFD

Technical data

Nominal engine power [KM ]: 4
Volumetric capacity [m³ / h ]: 11.7
Sound pressure : 59
Weight [kg ]: 41
Oil filling [dm³ ]: 1.89

Electrical data

Power supply [V / ~ / Hz ]: 380-420V / 3 / 50Hz
Short-circuit current [A ]: 51.5
Max. current consumption [A ]: 11
Winding resistance ]: 3.64

Connections
  millimeters all
Suction port:   7/8 "
Discharge port:   1/2 "
High quality copeland heat pump compressor
brand Copeland
model ZH30K4E-TFD
horse power 3.5 HP
refrigerant R407C/R134a
COP 3.1
Capacity (KW) 8.2
Color Black
Connection Brazed
TYPE Copeland heat pump compressor
Displacemet (m3/h) 10.0


Zh30K4e-Tfd 3.5HP Copeland Air Conditioning Compressors 0

2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency




3.Drawings



Zh30K4e-Tfd 3.5HP Copeland Air Conditioning Compressors 1



ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price

3.High Efficiency

ZH heating compressors with Enhanced Vapor Injection have
been further optimized to ensure best-in-class performances
in dedicated heating applications. This technology allows
replacement of traditional boilers in new building and retrofit
applications, without the need of substituting existing heating
elements in the building.ZH Copeland Scroll heating compressors with Enhanced Vapor
Injection have an additional port to inject vapor within the
compression process. This improves system performances
by increasing the heating capacity for a given compressor
displacement. Additional benefits are the reduction of the gas



4, Our main compressor lines are :

· compressors,

· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

· performer compressors: SM, SZ, SH SERIES

· commercial compressors: FR, SC SERIES

· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

· Secop compressor, Carrier(Carlyle) compressor

· Hitachi compressor,Daikin compressor, Sanyo compressor

·Tecumseh compressor, LG compressor, Mitsubishi compressor,

·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
