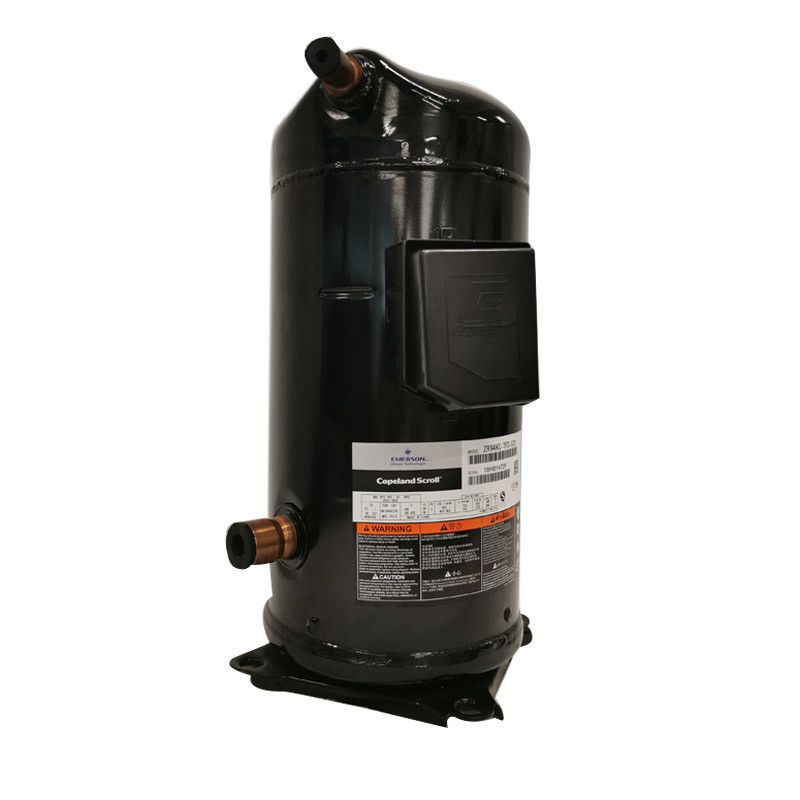

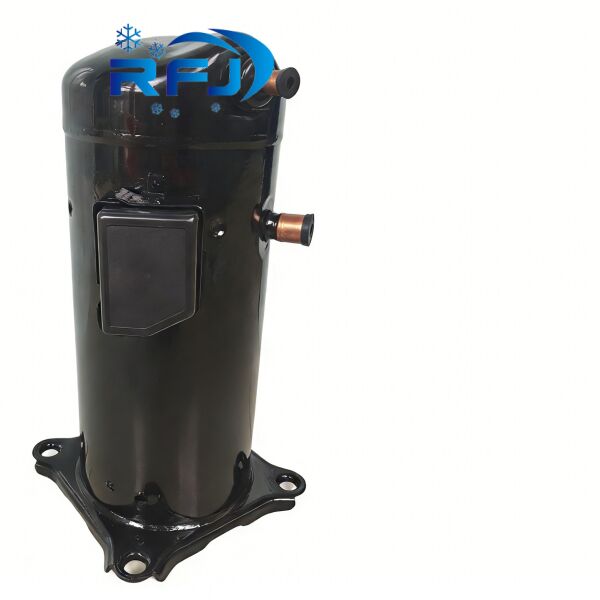

Low Vibration Zh45K4e-Tfd Refrigeration Scroll Compressor

Name: Low Vibration Zh45K4e-Tfd Refrigeration Scroll Compressor
Brand: copeland
SKU: Zh45K4e-Tfd
Rating: 4.5 (157 reviews)

Large Image : Low Vibration Zh45K4e-Tfd Refrigeration Scroll Compressor

Product Details:

Place of Origin:	china
Brand Name:	copeland
Certification:	CE
Model Number:	Zh45K4e-Tfd

Payment & Shipping Terms:

Minimum Order Quantity:	1pcs
Price:	community
Packaging Details:	wooden box
Delivery Time:	5-8 days after payment
Payment Terms:	T/T, Western Union
Supply Ability:	10000pcs /week

Contact Now

Detailed Product Description

Type:	Refrigerator Compressor	Displacement [m³/h:	2
Sound Power [dBA:	2	Net Weight [kg:	2
Gross Weight [kg:	2	Oil Charge [dm³:	2
Power Supply [V/~/Hz:	2	Winding Resistance [Ω:	2
High Light:	Low Vibration Refrigerator Compressor , Zh45K4e-Tfd

Zh Copeland Scroll Compressor Zh45K4e-Tfd with Best Price for Heat Pump

1, Product Description:

Type: Hermetic scroll compressors

Producer: Copeland

Series: ZHModel: ZH45K4E-TFD

Technical data


Displacement [m³/h]:	17,1
Sound power [dBA]:	75
Sound pressure level [dB]:	64
Net Weight [kg]:	40
Gross Weight [kg]:	44
Oil charge [dm³]:	1,9
Maximum high pressure [bar]:	32
Maximum standstill pressure [bar]:	20
Maximum lowside temperature [°C]:	50
PED category:	1

Electrical data


Power supply [V/~/Hz]:	380-420V/3/50Hz
Locked rotor current [A]:	74
Max. operating current [A]:	11,8
Winding resistance [Ω]:	2,3

Connections

		inches
Suction connection with supplied sleeve:		7/8"
Discharge connection with supplied sleeve:		1/2"

Low Vibration Zh45K4e-Tfd Refrigeration Scroll Compressor 0

2.Features
Copeland Scroll axial and radial compliance for high reliability
High efficiency and increased heating capacity
High water temperature for all applications
Low sound and low vibration level
Tandem combination for superior seasonal efficiency

3.Drawings

Low Vibration Zh45K4e-Tfd Refrigeration Scroll Compressor 1

ZH12K4E to ZH45K4E,ZH56K4E to ZH11M4E, ZH06KVE to ZH18KVE PFS-582,ZH04K1P to ZH19K1P , etc.
1,refrigerant: R134a,R407C,R410a
2,Quiet Operation- ZH heating compressors have been designed for low sound levels, a specific requirement for indoor heat pumps.High efficiency,Low price

3.High Efficiency

The ZH compressor range is optimized for reversible and heat
pump applications. In addition to the existing R407C range, a
complete new range optimized for R410A has been developed.
Both ranges are based on three platform sizes and cover a capacity
of 4kW to 38kW.
ZH heating compressors have been optimized for reversible
heating systems, they deliver higher capacity and efficiency at low
evaporating (heat source) temperatures and are therefore better
adapted to heating requirements than standard air conditioning
compressors. Due to their larger operating map they also require
less additional heating (electrical or gas) to cover the full heating
demand on the coldest days and therefore further improve the
system seasonal efficiency

4, Our main compressor lines are :

· compressors,

· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES

· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES

· performer compressors: SM, SZ, SH SERIES

· commercial compressors: FR, SC SERIES

· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES

· Secop compressor, Carrier(Carlyle) compressor

· Hitachi compressor,Daikin compressor, Sanyo compressor

·Tecumseh compressor, LG compressor, Mitsubishi compressor,

·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
