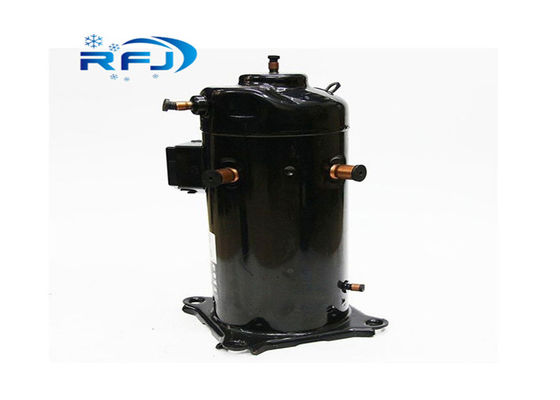

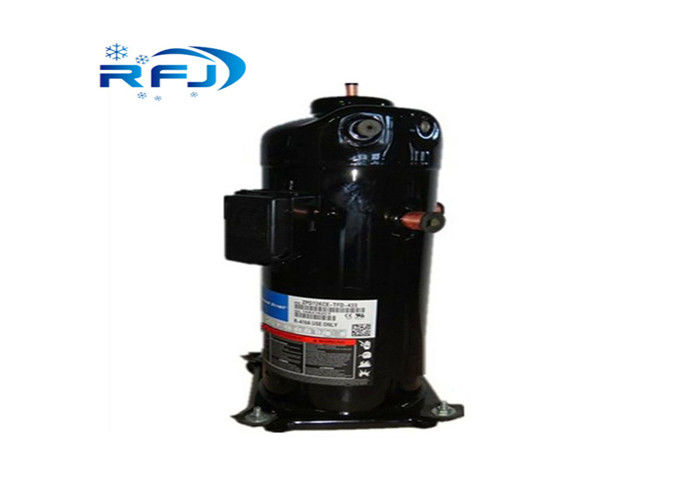

Copeland 380V R140A Hermetic Scroll Compressor ZPD72KCE-TFD-130

Stepless capacity modulation in air conditioning applications:

Flexible solution for R407C and R410A.

In many cooling and heating systems, the load and the operating conditions vary over a wide range thus requiring the use of capacity modulation. Digital Scroll assures stepless modulation down to 10% of the nominal capacity, enabling precise temperature control, superior comfort and energy saving.

Digital Scroll compressors are the preferred choice for process cooling, refrigeration racks, refrigeration units, VRF, rooftop and air handling unit systems.

Technical data:

ZPD72KCE-TFD-130

Z = Scroll Compressor

P = A/C Duty - R410A

D = Digital

72K = 72000 BTU

C = Model Series

E = POE Oil - AK/DA or 3MA

T = 3 Phase

F = Internal Inherent Protection - One protector, use with contactor

D = 380/420-3-50 / 460-3-60

130 = Bill of Material Product Variation

Standard Features:

High efficiency – EER 11.0 plus

Low Noise & Vibration levels

Inherent motor protection

Centrifugal oil pump

For Heat Pump & Air Conditioning duty

POE Oil
