Product Details:
Payment & Shipping Terms:
|
| Cooling Capacity: | 16.7KW | Net Weight: | 39.0kg |
|---|---|---|---|
| Displacement: | 93.0cc/ Rev | Power Supply: | 380-420V/3PH/50HZ, 460V/3PH/60HZ |
| EER: | 11.0Btu/Wh | ||
| High Light: | 5.5HP Hermetic Digital Compressor,Copeland Refrigeration Hermetic Digital Compressor,ZRD68KC-TFD-433 |
||

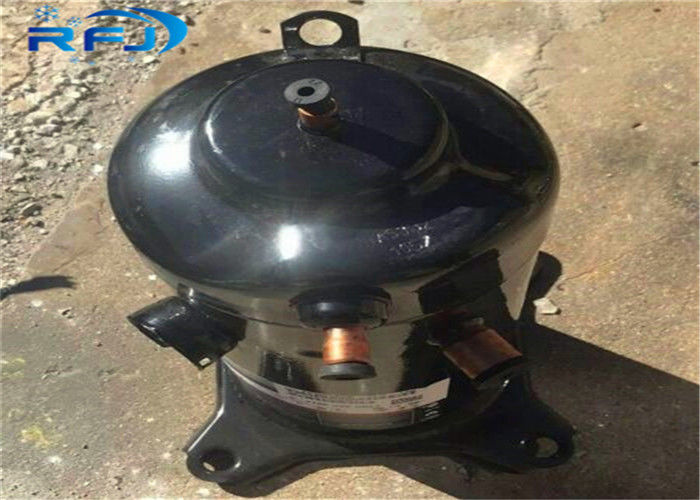

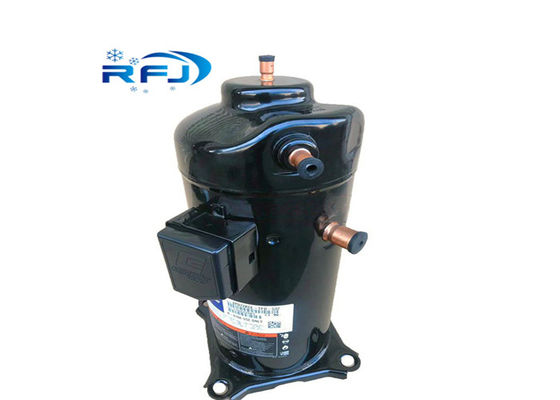

1PH R22 200V Digital Compressor ZRD68KC-TFD-433 for Copeland HVAC
Copeland Scroll Digital ZRDKC Quantum compressor increases HVAC system efficiency via capacity modulation and provide energy savings by precisely matching compressor output to your heating or cooling needs.
With the broadest product line in the industry, Copeland Scroll compressors range from1-60 HP and are installed in more than100 million installations around the world. They have become the compressor of choice to lead the industry through major transitions, including the13 SEER minimum-efficiency requirement and R-22 phaseout. Copeland Scroll compressors can be used in single or tandem configurations and can also be modulated for increased efficiency and homeowner comfort.
Product parameter:
Horse Power: 5.5HP
Net weight: 39.0kg
Input power: 5.15KW
Oil charge: 2.01L
Current: 23.9A
COP: 3.22W/W
EER: 11.0Btu/Wh
Displacement: 93.0cc/ Rev
LRA: 124.0A
Color: Black
Power supply: 380-400V/3PH/50HZ,, 460V/3PH/60HZ
Warranty: 1 year
Cooling Capacity: 16.7KW
| Product name | Copeland digital scroll compressor |
| Model |
ZRD68KC-TFD-433 |
| Brand | Copeland |
| Application | HVAC |
| MOQ | 1 piece |
