Product Details:
Payment & Shipping Terms:
|
| • Piston Type: | Scroll | • Configuration: | Stationary |
|---|---|---|---|
| • Power Source: | AC Power | Lubrication Style: | Lubricated |
| • Gas: | R410 | • Drive Mode: | Electric |
| Model: | SH161A4ALB | Voltage: | 400V |
| Brand: | Performer | ||
| High Light: | SH161A4ALB scroll compressor refrigeration,400V copeland refrigeration compressors,SH161A4ALB Performer Scroll Compressor |
||

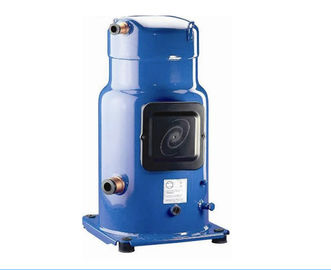

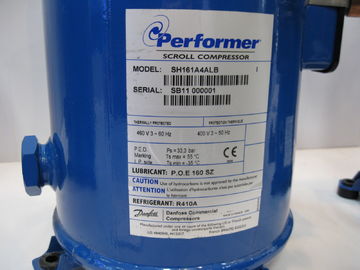

Performer Scroll Compressor R410 400V/3/50HZ SH161A4ALB for Air Conditioning
Specification:
| Displacement [m³/h]: | 26,4 | |
| Swept volume [cm³/rev]: | 151,7 | |
| RPM [min-1]: | 2900 | |
| Weight [kg]: | 69 | |
| Oil charge [dm³]: | 3,3 | |
| Oil type: | 160SZ | |
| Maximum system test pressure low side / high side: | 33/45 | |
| Maximum number of starts without softstart [1/h]: | 12 | |
| Refrigerant charge limit [dm³]: | 7,9 | |
| Sound power [dB]: | 73,5 | |
| Refrigerant: | R410A |
| milimeters | inches | ||
| Suction connection with supplied sleeve: | 35 | 1 3/8'' | |
| Discharge connection with supplied sleeve: | 22 | 7/8'' |
|
Performer compressors is a type of scroll compressors used for both 50Hz and 60Hz,
can be used for R22a,R407c
1. SM/SY series for R22
2. SZ series for R407c
3. Horse power range from 7 HP to 25 hp
SM/SZ series.
*7 to 25 HP.
*R22/R407C refrigerant
| FOR R22 | FOR R407C |
| SM084 | SZ084 |
| SM090 | SZ090 |
| SM100 | SZ100 |
| SM110 | SZ110 |
| SM115 | SZ115 |
| SM120 | SZ120 |
| SM125 | SZ125 |
| SM148 | SZ148 |
| SM160 | SZ160 |
| SM161 | SZ161 |
| SM175 | SZ175 |
| SM185 | SZ185 |
| SY240 | SZ240 |
| SY300 | SZ300 |
| SM series | Horse power | SZ seires | Horse power |
| SM084-4VM | 7HP | SZ084-4VM | 7HP |
| SM090-4VM | 7.5HP | SZ090-4VM | 8HP |
| SM100-4VM | 8HP | SZ100-4VM | 8HP |
| SM110-4VM | 9HP | SZ110-4VM | 9HP |
| SM115-4VM | 9.5HP | SZ120-4VM | 10HP |
| SM120-4VM | 10HP | SZ148-4VM | 12HP |
| SM125-4VM | 10HP | SZ161-4VM | 13HP |
| SM148-4VM | 12HP | SZ/Y185-4VM | 15HP |
| SM160-4VM | 13HP | ||
| SM185-4VM | 15HP |
We can supply more compressor models as below:
| Model | Refrigerant | Power | Net Weight |
| SZ100-3/9VM | R134A/R407C | 8HP | 72KG |
| SZ110-3/9Vm | 9HP | 72KG | |
| SZ120-3/9VM | 10HP | 80KG | |
| SZ125-3RM | 10HP | 80KG | |
| SZ148-3/9VAM | 12HP | 86KG | |
| SZ161-T3/9VC | 13HP | 86KG | |
| SZ/Y185-3/9CAM | 15HP | 103KG | |
| SZ240A3/9CBM | 20HP | 160KG | |
| SZ300A3/9CBM | 25HP | 160KG | |
| SM084-4VM | R22 | 7HP | 72KG |
| SM090-4VM | 7.5HP | 72KG | |
| SM100-4VM | 8HP | 72KG | |
| SM110-4VM | 9HP | 80KG | |
| SM112A4ACB | 9HP | 80KG | |
| SM115-4CAM | 9.5HP | 80KG | |
| SM120-4VM | 10HP | 80KG | |
| SM148-4VAM | 12HP | 86KG | |
| SM125-4CAM | 10HP | 80KG | |
| SM124A4ACB | 10HP | 80KG | |
| SM147A4ACB | 12HP | 86KG | |
| SM161-4VAM | 13HP | 86KG | |
| SM160-4CBM | 13HP | 93KG | |
| SM175-4CAM | 14HP | 103KG | |
| SM175-4RM | 14HP | 103KG | |
| SM185-4CAM | 15HP | 103KG | |
| SM185-4RM | 15HP | 103KG | |
| SY240A4CBM | 20HP | 160KG | |
| SY300ACBM | 25HP | 160KG | |
| SY300A4CAM | 25HP | 160KG | |
| SY380A4CBM | 31HP | 225KG |
