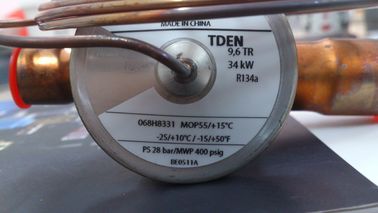

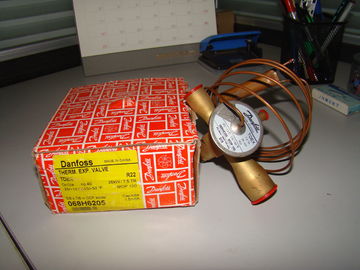

Thermostatic expansion Valves Model TDE/TDEX TDEBX - R22 TDES - R404A/R507 TDEZ/TDEBZ - R407C TDEN 068H8331

Thermostatic expansion Valves Model TDE/TDEX TDEBX - R22 TDES - R404A/R507 TDEZ/TDEBZ - R407C TDEN 068H8331
Thermostatic expansion Valves Model TDE/TDEX TDEBX - R22 TDES - R404A/R507 TDEZ/TDEBZ - R407C TDEN 068H8331
video play

Large Image :  Thermostatic expansion Valves Model TDE/TDEX TDEBX - R22 TDES - R404A/R507 TDEZ/TDEBZ - R407C TDEN 068H8331

Product Details:
Place of Origin: China/Europ
Brand Name: original
Certification: CE/ROHS/FCC/SGS
Model Number: TDE/TDEX TDEBX TDES TDEZ/TDEBZ Valves
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Carton box
Delivery Time: 7-10 working days after received your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Refrigerant: R404A/R22/R507/R407C Export Markets: Global
Application: Refrigeration Parts Material: Brass
Packing: Export Carton Box
High Light:

refrigeration and air conditioning tools and equipment

,

danfoss expansion valve

TDE/TDEX TDEBX - R22 TDES - R404A/R507 TDEZ/TDEBZ - R407C



Specifications:



  1.  Regriratant:R404A/R22/R507/R407C
  2. Thermostatic expansion valve regulate the flow of refrigerant liquid into The evaporator.
  3. The flow is controlled by the valve is thermal bulb which is Attached to the suction line at the outlet of the evaporator.
  4. The thermal Bulb senses the evaporator heat and adjusts the valve to admit refrigerant Liquid in accordance with the refrigerating load.
Part
Number		 Model No. Solder
Connection		 Nominal
Capacity
(kW)		 Evaporating Temperature: °C
-30 -20 -10 -5 0 5
Rated Capacity (kW)
TDE/TDEX & TDEBX - R22
068H7054 TDEX4 1/2 x 7/8 14 6.4 8.5 10.8 12.1 13.5 14.8
068H7058 TDEX6 1/2 x 7/8 21 9.6 12.6 16.2 18.1 20.1 22.1
068H8106 TDEX8 5/8 x 7/8  28 17.8 20.7 24 25.8 27.6 29.5
068H8108 TDEX11 5/8 x 7/8 38 21.9 26.5 31.8 34.6 37.4 40.4
068H8112 TDEX12.5 5/8 x 7/8 44 24.2 29.7 36 39.3 42.7 46.3
068H8116 TDEX16 5/8 x 1-1/8 56 29.3 36.7 45.2 49.7 54.3 59
068H8118 TDEX16 7/8 x 1-1/8 56 29.3 36.7 45.2 49.7 54.3 59
068H7080 TDEBX20# 7/8 x 1-1/8 70 38.6 47.5 57.5 62.9 68.4 74
068H7086 TDEBX30# 1-1/8 x 1-3/8 106 52.7 67.2 83.5 92.5 102 110
068H7088 TDEBX40# 1-1/8 x 1-3/8 140 69 88.4 110 122 135 147
　 MODEL TDES - R404A/R507
068H8750     TDES4.4 1/2 x 7/8 15.3 7.8 10.2 12.9 14.3 15.6 16.9
068H8751 TDES5.5 1/2 x 7/8 19.3 9.5 12.5 15.9 17.6 19.3 21.1
068H8752 TDES8.0 5/8 x 7/8 28 16.8 20.4 24.3 26.3 28.3 30.2
068H8753 TDES9.1 5/8 x 7/8 32 18.7 23 27.6 30 32.3 34.4
068H8754 TDES11.7 7/8 x 1-1/8 41 22.7 28.4 34.6 37.8 40.9 43.9
068H8755 TDES13.9 7/8 x 1-1/8 49 26.5 33.4 40.8 44.4 48.8 52
068H8756 TDES14.6 7/8 x 1-1/8 51 29.6 35.4 43.8 47.6 51.3 55
068H8757    TDES19.0 7/8 x 1-3/8 66 36.8 46.1 56.2 61.3 66.5 71.4
068H8758 TDES22.0 7/8 x 1-3/8 75 40.4 51.4 63.3 69.5 75.7 81.7
068H8759 TDES29.0  7/8 x 1-3/8 101 53.7 68.6 84.9 93.3 101.4 110
MODEL TDEZ/TDEBZ - R407C
068H7004  TDEZ4  1/2 x 7/8  14 6.2 8.4 10.8 12.2 13.5 14.9
068H7008  TDEZ6  1/2 x 7/8 21 9.3 12.5 16.2 18.2 20.2 22.3
068H8260 TDEZ8  5/8 x 7/8 28 17.5 20.6 24.1 25.9 27.8 29.7
068H8264 TDEZ11  5/8 x 1-1/8  38.5 21.5 26.3 31.8 34.7 37.7 40.7
068H8268 TDEZ12.5  5/8 x 1-1/8 44 23.8 29.5 36.1 39.5 42.9 46.5
068H8272  TDEZ16  7/8 x 1-1/8 56 28.7 36.4 45.2 49.8 54.6 59.4
068H7030 TDEBZ20# 7/8 x 1-1/8 70 37.9 47.1 57.5 63.1 68.8 74.6
068H7032 TDEBZ26# 7/8 x 1-3/8 91 46.6 59.2 73.4 81 88.8 96.7
068H7036 TDEBZ30# 7/8 x 1-3/8 105 51.5 66.4 83.5 92.7 102 112
068H7038 TDEBZ40# 7/8 x 1-3/8 140 67.4 87.4 110 122 135 148

Thermostatic expansion Valves Model TDE/TDEX TDEBX - R22 TDES - R404A/R507 TDEZ/TDEBZ - R407C TDEN 068H8331 0
