Scroll Piston 12HP Copeland A C Compressor ZB88KQ-TFD-551 380V/50Hz 12HP

China Scroll Piston 12HP Copeland A C Compressor ZB88KQ-TFD-551 380V/50Hz 12HP supplier
Scroll Piston 12HP Copeland A C Compressor ZB88KQ-TFD-551 380V/50Hz 12HP supplier Scroll Piston 12HP Copeland A C Compressor ZB88KQ-TFD-551 380V/50Hz 12HP supplier Scroll Piston 12HP Copeland A C Compressor ZB88KQ-TFD-551 380V/50Hz 12HP supplier

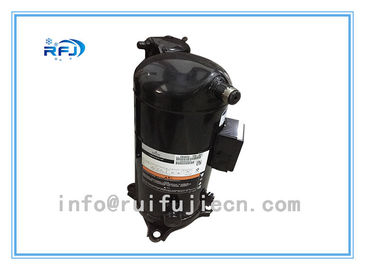

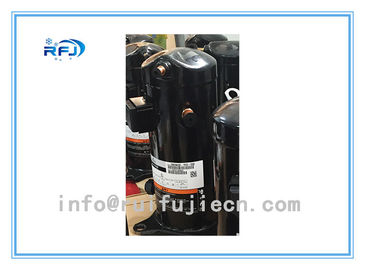

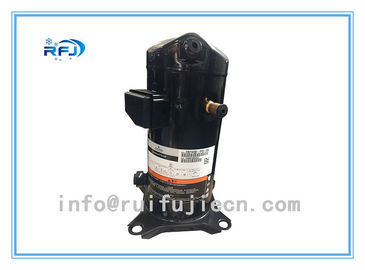

Large Image :  Scroll Piston 12HP Copeland A C Compressor ZB88KQ-TFD-551 380V/50Hz 12HP

Product Details:

Place of Origin: China
Brand Name: Copeland
Certification: CE, ROHS, UL
Model Number: ZB88KQ-TFD

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wooden case or 16 units in one pallet
Delivery Time: 7-10 working days after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Detailed Product Description
Piston Type: Scroll Power Source: AC Power
Configuration: Stationary Drive Mode: Electric
Horse Power: 12HP Temperature: Med Temperature
Refrigerant: R22 Sightglass: Compressor With Sightglass
Qty/one Pallet: 16pcs Voltage: 380V/50HZ
Application: Middle Refrigeration,-25 Dgree To 5 Degree Color: Black
Net Weight: 62KG Gross Weight: 65KG
L*W*H: 264*284*546

Copeland refrigeration scroll Compressor ZB88KQ-TFD,380V/50Hz 12HP

Specifications:

  • Model:ZB88KQ-TFD-551.With sightglass
  • Three phase,380V,50Hz
  • Working R22 refrigerant.


Copeland:

1.All models on sale
2.Competitive Price
3.Continuous Supply Capacity

Copeland Features:

1.Low energy consumption

2.Stable operating

3.Easy to dismantle and install

Description:

  • Refrigerant: R404/R22 50Hz
  •
  • Med Temperature
  •
  • Large operating envelope
  •
  • Fast temperature pull down capabilities
  •
  • Light weight and compactness


Copeland Scroll Digital® Technology for simple, step-less capacity modulation.

Applications:

The ZB series is optomized for high and medium temperature applications in the right choise for:

1.Medium temperature:Cold rooms,beverage cooling, vegetable cooling,display cases,plastic molding.

2.High temperature: Process cooling,milk production,grain drying, food preparation areas,flower preservation.

We can supply more ZB models as below


No

Model

Qty/Pallet

Refrigerant

1

ZB15KQ-PFJ-558-2HP/R22

16

R22

2

ZB15KQ-TFD-558-2HP/R22

16

R22

3

ZB21KQ-PFJ-558-3HP/R22

16

R22

4

ZB21KQ-TFD-558-3HP/R22

16

R22

5

ZB26KQ-PFJ-558-3.5HP/R22

16

R22

6

ZB26KQ-TFD-558-3.5HP/R22

16

R22

7

ZB29KQ-TFD-558-4HP/R22

16

R22

8

ZB38KQ-TFD-558-5HP/R22

16

R22

9

ZB45KQ-TFD-558-6HP/R22

16

R22

10

ZB48KQ-TFD-558-7HP/R22

16

R22

11

ZB58KQ-TFD-551-8HP/R22

12

R22

12

ZB66KQ-TFD-551-9HP/R22

12

R22

13

ZB76KQ-TFD-551-10HP/R22

12

R22

14

ZB88KQ-TFD-551-12HP/R22

12

R22

15

ZB114KQ-TFD-551-15HP/R22

12

R22

16

ZB15KQE-PFJ-558-2HP/R404

16

R404

17

ZB15KQE-TFD-558-2HP/R404

16

R404

18

ZB19KQE-PFJ-558-2.5HP/R404

16

R404

19

ZB19KQE-TFD-558-2.5HP/R404

16

R404

20

ZB21KQE-PFJ-558-3HP

16

R404

21

ZB21KQE-TFD-558-3HP

16

R404

22

ZB26KQE-TFD-558-3.5HP

16

R404

23

ZB26KQE-PFJ-558-3.5HP

16

R404

24

ZB29KQE-TFD-558-4HP

16

R404

25

ZB38KQE-TFD-558-5HP

16

R404

26

ZB45KQE-TFD-558-6HP

16

R404

27

ZB48KQE-TFD-558-7HP

16

R404

28

ZB58KQE-TFD-551-8HP

12

R404

29

ZB66KQE-TFD-551-9HP

12

R404

30

ZB76KQE-TFD-551-10HP

12

R404

Scroll Piston 12HP Copeland A C Compressor ZB88KQ-TFD-551 380V/50Hz 12HPScroll Piston 12HP Copeland A C Compressor ZB88KQ-TFD-551 380V/50Hz 12HP

Model NO.

Cindensate Temperature

The Evaporation Temperature ° C (R22/50HZ)

-12

-10

-5

0

5

10

ZB15KQ

40

3300

3550

4350

5200

6250

7400

ZB19KQ

40

3650

3950

4850

5850

7000

8300

ZB21KQ

40

4650

5050

6200

7450

8850

10500

ZB26KQ

40

5100

5500

6800

8200

9850

11700

ZB29KQ

40

6230

6790

8290

9970

11800

14070

ZB38KQ

40

7300

8000

9950

12200

14650

17300

ZB45KQ

40

9400

10200

12400

14900

17800

21000

ZB48KQ

40

10390

11285

13700

16436

19574

23199

ZB58KQ

40

11800

12950

16100

19600

19574

28000

ZB66KQ

40

13950

15100

18400

22200

26500

31500

ZB76KQ

40

16400

17800

21700

28500

30500

35500

ZB88KQ

40

18800

20400

24900

30000

36000

42000

ZB95KQ

40

19500

21400

26500

32000

38200

45200

ZB114KQ

40

23200

25500

31700

38500

41600

54500

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model ZB66KQ ZB66KQE ZB76KQ ZB76KQE ZB88KQ ZB95KQ ZB114KQ
Motor type TFD
Nominal power(HP) 9 10 12 13 15
Displacement(m³/h) 25.7 28.8 33.2 36.4 43.4
Starting current(LRA)(Amp.)
TFD 100~111 110~118 110~118 140 174
PFJ
Rated Load Current(RLA)(Amp.)
TFD 17.3 19.2 22.1 22.1 27.1
PFJ
Max. operating current (MCC)(Amp.)
TFD 24.2 26.9 31 31 38
PFJ
Crankcase heater power(W) 90
Adapter outer diameter(in.)
Discharge Size 7/8 7/8 7/8 7/8 7/8
Suction Size 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8
Dimenson(mm.)
Length(L)
Width(W) 284 284 284 285 285
Height(H) 546 546 546 552 553
Sole angles (aperture) 190X190 (8.5)
Oil Charge(L) 3.25 3.25 3.25 3.3 3.3
Weight(Kg)
Net Weight 59 62 62 62 63
Gross Weight 62 65 65 65 66

Model NO.

Cindensate Temperature

The Evaporation Temperature ° C (R404/50HZ)

-25

-20

-15

-10

-5

0

5

ZB15KQE

40

1870

2430

3000

3700

4450

5350

6350

ZB19KQE

40

2490

3050

3750

4550

5450

6500

7700

ZB21KQE

40

3000

3700

4550

5000

6600

7900

9350

ZB26KQE

40

3500

4300

5250

6350

7650

9100

10800

ZB29KQE

40

4070

5040

6160

7460

8960

10680

12650

ZB38KQE

40

5100

6250

7700

9300

11200

13350

15800

ZB45KQE

40

6000

7400

9050

10950

13150

15700

18600

ZB48KQE

40

6579

8150

9969

12074

14500

17287

20471

ZB58KQE

40

7050

9250

11700

14400

17500

21000

24900

ZB66KQE

40

8900

11100

13500

16400

19600

23400

27600

ZB76KQE

40

10900

13300

16100

19400

23300

27800

33000

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model ZB15KQ ZB15KQE ZB19KQ ZB19KQE ZB21KQ ZB21KQE ZB26KQ ZB26KQE ZB29KQ ZB29KQE ZB38KQ ZB38KQE ZB45KQ ZB45KQE ZB48KQ ZB48KQE
Motor type TFD
  PFJ PFJ PFJ PFJ PFJ
Nominal power(HP) 2 2.5 3 3.5 4 5 6 7

Displacement(m³/h) 5.9 6.8 8.6 9.9 11.4 14.5 17.2 18.8

Starting current(LRA) (Amp.)
TFD 24.5~26 30~32 36~40 41~46 50 58.6~65.5 67~74 101
PFJ 53~58 56~61 75~82 89~97 113

Rated Load Current(RLA) (Amp.)
TFD 4.30 4.30 5.70 7.10 7.90 8.90 11.50 12.1
PFJ 11.4 12.9 16.4 18.9 19.3

Max. operating current (MCC) (Amp.)
TFD 6.0 6.0 8.0 10.0 11.0 12.5 16.1 17.0
PFJ 16 18 23 24 27

Operating capacitance

(single-phase)

40μF/370V 45μF/370V 50μF/370V 60μF/370V 60μF/370V
Crankcase heater power(W) 70

Adapter outer diameter(in.)
Discharge Size 1/2 1/2 1/2 1/2 1/2 1/2 1/2 3/4
Suction Size 3/4 3/4 3/4 3/4 7/8 7/8 7/8 7/8

Dimenson(mm.)
Length(L) 242 242 243 243 242 242 242 242
Width(W) 242 242 244 244 242 242 242 242
Height(H) 383 389 412 425 430 457 457 457
Sole angles (aperture) 190X190 (8.5)

Oil Charge(L) 1.18 1.45 1.45 1.45 1.36 1.89 1.89 1.80

Weight(Kg)
Net Weight 23 25 27 28 33 38 40 40
Gross Weight 26 29 30 31 37 41 44 44
