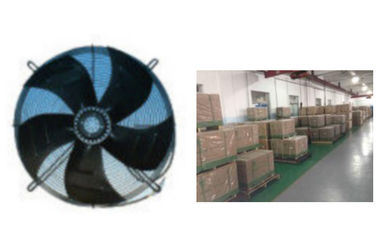

Electric Wall Mounted Axial Flow Fan YWF Series of Stainless Steel

China Electric Wall Mounted Axial Flow Fan YWF Series of Stainless Steel supplier

Large Image :  Electric Wall Mounted Axial Flow Fan YWF Series of Stainless Steel

Product Details:

Place of Origin: China
Brand Name: Weiguang
Certification: CE, CCC, RoHS, UL
Model Number: YWF

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Carton box
Delivery Time: 7-10 working days after received your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Installation: Wall Mounted Type: Axial Flow Fan
Power Supply: Electric Material: Stainless Steel
Speed: Stepless Speed Regulation Application: Refrigeration Industry
Voltage: 380V/220V

CCC And CE Certification YWF Series Axial Fan

Specifications:

* 4/6 motor poles
* 220V/50Hz, 380V/50Hz 230V/50Hz
* Temperatre:-30-+60 degrees Celsius
* Average lifetime : 30000 hours

1.YWF series axial fan motors are external rotor fan motors. These motors have characteristics of compact structure,convenient installation,energy convervation and high efficiency.

2.The insulation class of the YWF series axial fans motors is B, and the protection class of that is Ip54.All the motors have thermal protector in the winding.

3.The applicable ambient temperature of the fan motors used in condenser is from 0 to -+60 degree. The applicable ambient temperature of the fan motors in evaporators is -30 to 0 degree.

4.The average service life of of motors is over 30000 hours.

5.All motors have got CE approval in Europe and CCC safty certificate in China.

For more model details please check below:

TypeVoltageFrequencyCurrent Power inputSpeedAir volumeNoise LevelCapacitorApprox
N.W
Size(mm)
VHZAWr/minm³/hDbauFkgHLC
YWF2D-250380500.31002650180060 3Φ55Φ250Φ320
YWF2E-2502200.5510025001800603
YWF4D-2503800.2701400146055
YWF4E-2502200.37014001460553
YWF2D-3003800.351402550280060 3.3Φ80Φ300Φ360
YWF2E-3002200.6514025302800604
YWF4D-3003800.24801380183158
YWF4E-3002200.48013801743584
YWF4D-3303800.31001300255062 4Φ80Φ315Φ380
YWF4E-3302200.510013002550624
YWF4D-3503800.41501380317062 4.9Φ90Φ350Φ422
YWF4E-3502200.715013802973624
YWF6D-3503800.3590920210056
YWF6E-3502200.42909202000563
YWF4D-4003800.51801380450068 5.6Φ90Φ400Φ470
YWF4E-4002200.818013804400686
YWF6D-4003800.38110920320058
YWF6E-4002200.51109203200584
YWF4D-4503800.62501360560068 7.2Φ90Φ450Φ522
YWF4E-4502201.225013505507688
YWF6D-4503800.4150920460060
YWF6E-4502200.81609204600606
YWF4D-5003800.94501300624672 9.5Φ90Φ500Φ570
YWF4E-5002201.85420130060467210
YWF6D-5003800.6230900580068
YWF6E-5002201.223090058006810
YWF4D-5503801.26001300848775 10.5Φ100Φ550Φ622
YWF4E-5502202.4500130082687510
YWF6D-5503800.8330900650970
YWF6E-5002201.733090063487010
YWF4D-6003801.683013501250078 14Φ100Φ600Φ679
YWF4E-60022036501300105007810
YWF6D-6003801.5520900940072
YWF6E-6002202.452090094007210
YWF4D-6303801.888013201300078 15Φ100Φ630Φ740
YWF4E-6302203.27001300110007810
YWF6D-6303801.6560900950075
YWF6E-6302202.556090095007510
