Product Details:
Payment & Shipping Terms:
|
| Packing: | Carton | Export Markets: | Global |
|---|---|---|---|
| Power: | Manual | Refrigerant: | R22,R134a,R404A,R12,R502 |
| Material: | Brass | Application: | Refrigeration Parts |
| High Light: | refrigerator tools,danfoss expansion valve |
||

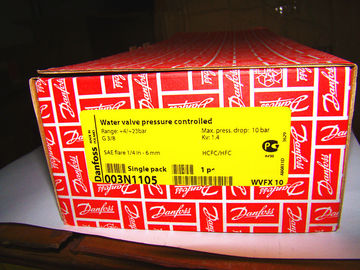

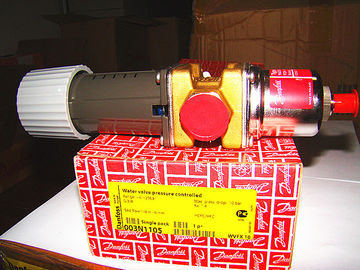

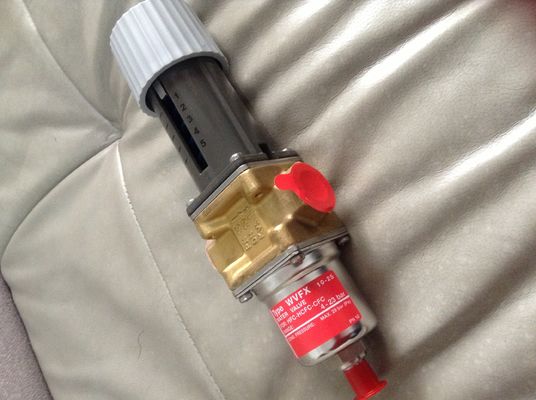

Water Valves Condensing Pressure Refrigeration Controls Wvfx10 003n1105
Specifications:
Pressure controlled water valves types WVFX are used for regulating the flow of water in refrigeration plant with water-cooled condensers.
The water valves give modulating regulation of the condensing pressure and so maintain it constant during operation.
When the refrigeration plant is stopped, the cooling water flow is shut off automatically.
Please find More Models as below:
|
Type
|
Connection | Code no. | ||
| Water side ISO288/1 | Condenser side | Range 3.5-16.0 | Range 4.0-23.0 | |
| WVFX10 | G3/8 | 1/4in. /6mm, Flare | 003N1105 | |
| WVFX15 | G1/2 | 1/4in. /6mm, Flare | 003N2105 | |
| WVFX20 | G3/4 | 1/4in. /6mm, Flare | 003N3105 | |
| WVFX25 | G1 | 1/4in. /6mm, Flare | 003N4105 | |
| WVFX32 | G1 1/4 | 1/4in. /6mm, Flare | 003F1232 | |
| WVFX40 | G1 1/2 | 1/4in. /6mm, Flare | 003F1240 | |
| Waterregulating valves | |||||||
| - pressure actuated | |||||||
| Part Number |
Model No. |
Refrig. | Connections | Condenser side | Liquid side | ||
| water side |
Cond. Side |
adjust. Closing Pressure (kPa) |
Max. working Pressure (kPa) |
Max. working Pressure (kPa) |
|||
| Type WVFX | |||||||
| 003N1100 | WVFX10 | R22,R134a,R404A,R12,R502 | 3/8" | 1/4" FL | 350 to 1600 | 2640 | 1600 |
| 003N1105 | WVFX10 | 3/8" | 1/4" FL | 400 to 2300 | |||
| 003N2100 | WVFX15 | 1/2" | 1/4" FL | 350 to 1600 | |||
| 003N3100 | WVFX20 | 3/4" | 1/4" FL | ||||
| 003N3105 | WVFX20 | 3/4" | 1/4" FL | 400 to 2300 | |||
| 003N4100 | WVFX25 | 1" | 1/4" FL | 350 to 1600 | |||
| 003F1232 | WVFX32 | 1-1/4" | 1/4" FL | 1000 | |||
| 003F1240 | WVFX40 | 1-1/2" | 1/4" FL | ||||
