7.5hp Copeland Refrigeration ZR90K3E-TWD-961 scroll compressor

7.5hp Copeland Refrigeration ZR90K3E-TWD-961 scroll compressor
7.5hp Copeland Refrigeration ZR90K3E-TWD-961 scroll compressor 7.5hp Copeland Refrigeration ZR90K3E-TWD-961 scroll compressor

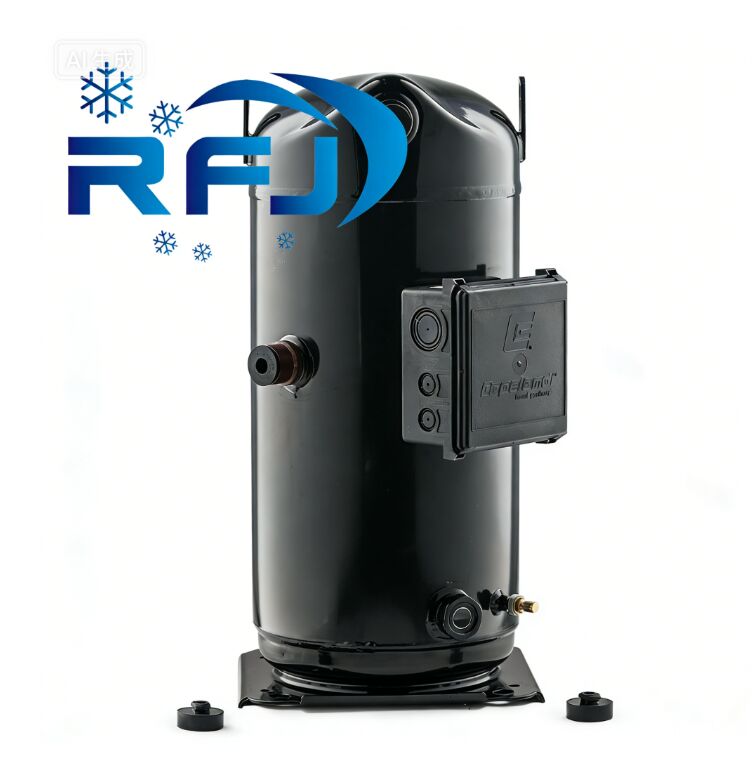

Large Image :  7.5hp Copeland Refrigeration ZR90K3E-TWD-961 scroll compressor

Product Details:

Place of Origin: Thailand
Brand Name: Copeland
Certification: CE/UL
Model Number: ZR90K3E-TWD-961

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Wooden case or 12 units in one pallet
Delivery Time: 7-10 working days after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Detailed Product Description
Piston Type: Scroll Power Source: AC Power
Drive Mode: Electric Horse Power: 7.5HP
Configuration: Stationary Mute: Yes
Voltage: 380/420v Connection: Rotalock
Electric Supply: 3ph 50hz
High Light:

copeland a c compressor

,

commercial refrigeration compressor

7.5hp Copeland Refrigeration ZR90K3E TWD 961 scroll compressor



Specifications:



  •  Power: 1.5-15 HP
  •
  •  Med/High Temperature
  •
  •  Superior efficiency
  •
  •  Outstanding reliablity
  •
  •  Fewer moving parts
  •
  •  Very low noise/gas pulsation
  •

Copeland Scroll Compressor 20–40 HP



  •  R-410A and R-22/R-407C models in 20–40 HP (tandems up to 80 HP)
  •  Optimized for large rooftop and chiller applications
  •  Designed to provide highest R-410A efficiency in this capacity range
  •  Qualified for use in trio applications

7.5hp Copeland Refrigeration ZR90K3E-TWD-961 scroll compressor 0

7.5hp Copeland Refrigeration ZR90K3E-TWD-961 scroll compressor 1

Brand: Copeland
Connection: Rotalock
Dim 1 (mm): 525
Model Number: ZR 90K3E TWD 961
Voltage: 380/420
Warranty: 1 Year
Depth With Decoration Panel (mm): 319
Displacement CC: 20,9
Electric Supply: 380-420V / 50Hz / 3ph
Electrical Rating: 17
Phase: Three Phase
Refrigerant: Refer to Copeland literature for approved refrigerants
Refrigerant Suitability: R407C;R134A;R22
Tube Connection Size (mm): -
Valve Connections: 1.1/8
Width With Decoration Panel (mm): 357
Horse Power: 7,5
Application Temperature (C): -
Application Temperature (C): -






Phase   Model Horse Power/HP Displacement (m3/h) ARI  7.2/54.4°C Weight/Kg Height /mm
Cooling (W) Input (W)
1 Phase ZR16K3-PFJ 1.33 3.97 4010 1320 25.9 370.4
ZR18K3-PFJ 1.5 4.37 4400 1440 25.9 370.4
ZR20K3-PFJ 1.69 4.76 4890 1600 25.9 370.4
ZR22K3-PFJ 1.83 5.34 5330 1730 25.9 382.8
ZR24K3-PFJ 2 5.92 5920 1870 26.3 382.8
ZR26K3-PFJ 2.17 6.27 6330 2000 25.9 382.8
ZR28K3-PFJ 2.33 6.83 6910 2150 27.2 382.8
ZR30K3-PFJ 2.5 7.3 7380 2290 28.6 405.5
ZR32K3-PFJ 2.67 7.55 7760 2410 28.1 405.5
ZR34K3-PFJ 2.83 8.02 8200 2520 29.5 405.5
ZR36K3-PFJ 3 8.61 8790 2700 29.5 405.5
ZR40K3-PFJ 3.33 9.43 9670 2970 29.9 419.3
ZR42K3-PFJ 3.5 9.94 10100 3120 29.9 419.3
ZR47K3-PFJ 3.92 11.16 11500 3530 30.4 436.6
3 Phase ZR22K3-TFD 1.83 5.34 5330 1650 25.9 382.8
ZR24K3-TFD 2 5.92 5920 1840 25.9 382.8
ZR26K3-TFD 2.17 6.27 6330 1960 25.9 382.8
ZR28K3-TFD 2.33 6.83 6910 2150 26.3 405.5
ZR30K3-TFD 2.5 7.3 7380 2290 26.3 405.5
ZR32K3-TFD 2.67 7.55 7760 2410 26.3 405.5
ZR34K3-TFD 2.83 8.02 8200 2500 28.6 405.5
ZR36K3-TFD 3 8.61 8790 2680 27.2 405.5
ZR40K3-TFD 3.33 9.43 9670 2950 28.6 419.3
2ZR42K3-TFD 3.5 9.94 10100 3090 28.6 419.3
ZR45KC-TFD 3.75 10.73 11000 3380 28.6 436.3
ZR46KC-TFD 3.83 10.95 11100 3390 34.9 456.9
ZR47KC-TFD 3.92 11.16 11500 3500 28.6 436.3
ZR49KC-TFD 4.08 11.45 11700 3600 35.4 456.9
ZR54KC-TFD 4.5 12.73 12900 4030 35.4 456.9
ZR57KC-TFD 4.75 13.42 13700 4160 35.4 456.9
ZR61KC-TFD 5.08 14.34 14600 4430 35.8 456.9
ZR68KC-TFD 5.75 16.18 16400 4970 38.1 456.9
ZR72KC-TFD 6 17.05 17400 5250 38.1 456.9
ZR81KC-TFD 6.75 19.2 19690 5830 40.9 462.4
ZR84KC-TFD 7 19.75 20330 6140 56.7 495.3
ZR94KC-TFD 8 22.14 22940 7000 58 495.3
ZR108KC-TFD 9 25.15 26250 7830 72.6 533.4
ZR125KC-TFD 10 28.77 30470 9060 78 533.4
ZR90K3-TWD 7.5 20.9 21540 6620 91 542
ZR11M3-TWD 9 24.9 25840 7805 91 542
ZR12M3-TWD 10 28.8 29890 8955 92 542
ZR16M3-TWD 13 35.6 37330 11175 98 557
ZR19M3-TWD 15 42.1 45170 13400 112 596
