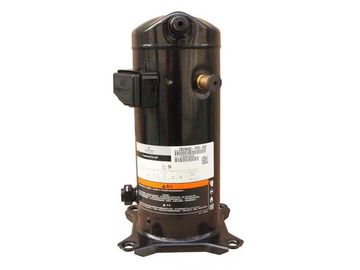

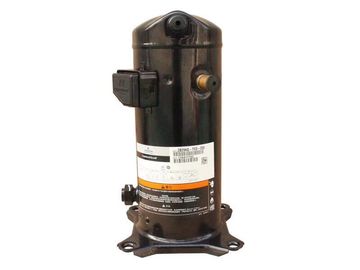

Stationary 1 Phase Copeland Scroll Compressor For AC , ZB29KQE-TFD-551

Stationary 1 Phase Copeland Scroll Compressor For AC , ZB29KQE-TFD-551
Stationary 1 Phase Copeland Scroll Compressor For AC , ZB29KQE-TFD-551 Stationary 1 Phase Copeland Scroll Compressor For AC , ZB29KQE-TFD-551 Stationary 1 Phase Copeland Scroll Compressor For AC , ZB29KQE-TFD-551

Large Image :  Stationary 1 Phase Copeland Scroll Compressor For AC , ZB29KQE-TFD-551

Product Details:

Place of Origin: Thailand
Brand Name: Copeland
Certification: CE/UL
Model Number: ZB30KCE- TFD -551

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Wooden case or 12 units in one pallet
Delivery Time: 7-10 working days after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Detailed Product Description
Piston Type: Scroll Power Source: AC Power
Drive Mode: Electric Configuration: Stationary
Temperature: Med/High Temperature Voltage: 1phase / 380V/400V
Warranty: One Year Refrigerant: R22
Connection: Rolatock HP: 4HP
Net Weight: 33KG/pc Gross Weight: 37KG/pc
L*W*H: 242*242*430mm
High Light:

copeland ac compressor

,

commercial refrigeration compressor

Copeland ZB30KCE PFJ 551 1 phase Refrigeration scroll compressor for ac



Product Description

ZB Copeland scroll compressor for medium temperature refrigeration applications

Product Features

  • Oil sight glass
  • Schraeder connection for oil fill/drain
  • Supplied with soft mounting rubbers for single compressor operation (hard mountings required for multi compressor [pack] installations
  • Internal motor protection.

*Refrigerant: R404/R22 50Hz/60Hz

*Med / High Temperature

*Large operating envelope

*Fast temperature pull down capabilities

*Light weight and compactness

*Copeland Scroll Digital® Technology for simple, step-less capacity modulation



Type: Hermetic scroll compressors
Producer: Copeland
Series: ZB

Model: ZB29KQE-TFD

Technical data

Displacement [m³/h]: 11,7
Sound power [dBA]: 70
Sound pressure level [dB]: 59
Net Weight [kg]: 35,4
Oil charge [dm³]: 1,9
Maximum high pressure [bar]: 28,8
Maximum standstill pressure [bar]: 21
Minimal lowside temperature [°C]: -35
Maximum lowside temperature [°C]: 50
PED category: 1

Electrical data

Power supply [V/~/Hz]: 220-240V/1/50Hz
Locked rotor current [A]: 142
Max. operating current [A]: 26,4
Winding resistance ]: 0,4

Connections
    inches
Suction Rotolock valve connection:   7/8"
Discharge Rotolock valve connection:   1/2"
Brand: Copeland
Connection: Rotalock
Dim 1 (mm): 438
Model Number: ZB29KQE PFJ 551
Warranty: 1 Year
Depth With Decoration Panel (mm): 242
Displacement CC: 11,7
Electric Supply: 220-230V/1ph/50Hz
Electrical Rating: 26
Refrigerant: Refer to Copeland literature for approved refrigerants
Tube Connection Size (mm): -
Valve Connections: 7/8
Width With Decoration Panel (mm): 242
Application Temperature (C): -
Application Temperature (C): -

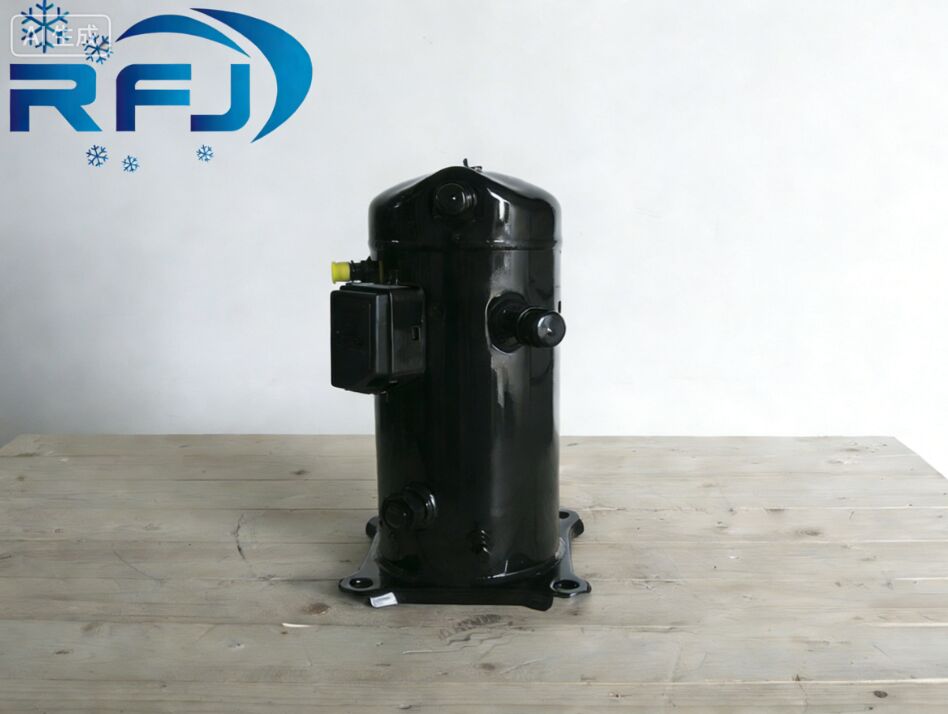

Stationary 1 Phase Copeland Scroll Compressor For AC , ZB29KQE-TFD-551 0Stationary 1 Phase Copeland Scroll Compressor For AC , ZB29KQE-TFD-551 1
Cooling capacity [kW]
tc  te -40 -35 -30 -25 -20 -15 -10 -5 0 5 10
10 2.97 3.72 4.67 5.82 7.20 8.83 10.72 - - - -
15 2.73 3.49 4.42 5.54 6.87 8.43 10.24 12.32 - - -
20 2.49 3.25 4.16 5.25 6.52 8.01 9.74 11.71 13.96 - -
25 2.24 3.00 3.89 4.94 6.16 7.58 9.22 11.09 13.21 15.61 -
30 1.98 2.73 3.60 4.61 5.78 7.13 8.67 10.43 12.44 14.69 17.23
35 1.70 2.45 3.30 4.27 5.38 6.65 8.10 9.76 11.63 13.74 16.12
40 1.41 2.15 2.98 3.91 4.96 6.15 7.51 9.05 10.79 12.76 14.97
45 - - 2.64 3.52 4.51 5.63 6.89 8.31 9.93 11.75 13.79
50 - - - 3.12 4.04 5.08 6.24 7.55 9.03 10.69 12.57
55 - - - - 3.54 4.49 5.56 6.75 8.09 9.61 11.31
60 - - - - - 3.88 4.84 5.91 7.12 8.48 10.01

Power input [kW]
tc  te -40 -35 -30 -25 -20 -15 -10 -5 0 5 10
10 1.65 1.68 1.71 1.73 1.76 1.79 1.84 - - - -
15 1.81 1.84 1.87 1.89 1.92 1.95 1.98 2.03 - - -
20 1.99 2.02 2.05 2.07 2.09 2.12 2.15 2.19 2.25 - -
25 2.18 2.22 2.25 2.27 2.30 2.32 2.35 2.38 2.43 2.49 -
30 2.40 2.44 2.48 2.50 2.52 2.55 2.57 2.60 2.64 2.69 2.75
35 2.64 2.69 2.73 2.76 2.78 2.80 2.82 2.85 2.88 2.92 2.98
40 2.91 2.96 3.01 3.04 3.06 3.09 3.11 3.13 3.16 3.19 3.24
45 - - 3.32 3.35 3.38 3.40 3.42 3.44 3.47 3.50 3.54
50 - - - 3.70 3.73 3.75 3.77 3.79 3.82 3.84 3.88
55 - - - - 4.11 4.14 4.16 4.18 4.20 4.23 4.26
60 - - - - - 4.57 4.59 4.61 4.63 4.65 4.68

Current [A]
tc  te -40 -35 -30 -25 -20 -15 -10 -5 0 5 10
10 9.42 9.54 9.65 9.77 9.90 10.06 10.28 - - - -
15 10.11 10.24 10.35 10.46 10.58 10.72 10.90 11.14 - - -
20 10.89 11.03 11.16 11.26 11.37 11.50 11.66 11.86 12.12 - -
25 11.78 11.95 12.08 12.19 12.30 12.42 12.55 12.72 12.95 13.23 -
30 12.78 12.98 13.13 13.26 13.37 13.48 13.60 13.75 13.94 14.18 14.50
35 13.92 14.15 14.32 14.46 14.58 14.69 14.80 14.93 15.09 15.30 15.58
40 15.19 15.46 15.66 15.82 15.95 16.06 16.17 16.29 16.43 16.61 16.85
45 - - 17.16 17.34 17.49 17.61 17.72 17.83 17.96 18.11 18.32
50 - - - 19.04 19.21 19.34 19.46 19.56 19.68 19.82 19.99
55 - - - - 21.11 21.26 21.39 21.50 21.61 21.74 21.89
60 - - - - - 23.39 23.53 23.65 23.76 23.88 24.01

Mass flow [kg/h]
tc  te -40 -35 -30 -25 -20 -15 -10 -5 0 5 10
10 57.31 74.84 95.13 119.08 147.58 181.53 221.81 - - - -
15 55.87 73.67 94.15 118.21 146.74 180.64 220.79 268.11 - - -
20 53.97 72.07 92.77 116.97 145.56 179.44 219.50 266.64 321.75 - -
25 51.55 69.98 90.93 115.30 143.98 177.88 217.87 264.86 319.75 383.42 -
30 48.55 67.34 88.57 113.14 141.95 175.88 215.84 262.72 317.41 380.80 453.81
35 44.90 64.08 85.63 110.44 139.40 173.40 213.36 260.15 314.67 377.83 450.50
40 40.55 60.16 82.05 107.12 136.26 170.38 210.35 257.09 311.48 374.42 446.81
45 - - 77.77 103.13 132.49 166.74 206.77 253.49 307.78 370.53 442.65
50 - - - 98.41 128.02 162.43 202.55 249.27 303.49 366.10 437.99
55 - - - - 122.78 157.40 197.63 244.39 298.57 361.05 432.74
60 - - - - - 151.57 191.96 238.78 292.95 355.34 426.86

C.O.P. [W/W]
tc  te -40 -35 -30 -25 -20 -15 -10 -5 0 5 10
10 1.80 2.22 2.74 3.36 4.09 4.92 5.83 - - - -
15 1.51 1.90 2.37 2.93 3.59 4.33 5.16 6.07 - - -
20 1.25 1.61 2.03 2.53 3.12 3.78 4.52 5.34 6.22 - -
25 1.03 1.35 1.73 2.17 2.68 3.27 3.93 4.65 5.44 6.28 -
30 0.82 1.12 1.46 1.84 2.29 2.80 3.37 4.01 4.71 5.47 6.26
35 0.64 0.91 1.21 1.55 1.94 2.38 2.87 3.43 4.04 4.70 5.41
40 0.49 0.73 0.99 1.29 1.62 1.99 2.42 2.89 3.42 4.00 4.62
45 - - 0.80 1.05 1.34 1.65 2.01 2.41 2.86 3.36 3.89
50 - - - 0.84 1.08 1.35 1.65 1.99 2.37 2.78 3.24
55 - - - - 0.86 1.09 1.33 1.61 1.93 2.27 2.66
60 - - - - - 0.85 1.06 1.28 1.54 1.82 2.14

Application range


    Maximum evaporating temperature
    25ºC suction gas temperature
    10K gas overheat

Operating conditions: suction gas temperature 20ºC, 0K subcooling
tc - Condensing temperature [ºC]
te - Evaporating temperature [ºC]

More ZB compressors we can supply

MODEL SPECIFICATION COMPARE WITH ZR SERIES
ZB15KQ-PFJ-524 2HP Welding       R22 ZB15=ZR24
ZB15KQ-TFD-524
ZB15KQE-PFJ-524 2HP Welding       R404a
ZB15KQE-TFD-524

ZB19KQ-PFJ-524 2.3HP Welding       R22 ZB19=ZR28
ZB19KQ-TFD-524
ZB19KQE-PFJ-524 2.3HP Welding       R404a
ZB19KQE-TFD-524

ZB21KQ-PFJ-524 3HP Welding       R22 ZB21=ZR36
ZB21KQ-TFD-524
ZB21KQE-PFJ-524 3HP Welding       R404a
ZB21KQE-TFD-524

ZB26KQ-PFJ-524 3.5HP Welding       R22 ZB26=ZR42
ZB26KQ-TFD-524
ZB26KQE-PFJ-524 3.5HP Welding       R404a
ZB26KQE-TFD-524

ZB30KQ-TFD-524 4HP Welding R22 ZB30=ZR49
ZB30KQE-TFD-524 4HP Welding R404a

ZB38KQ-TFD-524 5HP Welding R22 ZB38=ZR61
ZB38KQE-TFD-524 5HP Welding R404a

ZB45KQ-TFD-524 6HP Welding R22 ZB45=ZR72
ZB45KQE-TFD-524 6HP Welding R404a

ZB58KQ-TFD-523 8HP Screw R22 ZB58=ZR91
ZB58KQ-TFD-524 8HP Welding R22
ZB58KQE-TFD-523 8HP Screw R404a
ZB58KQE-TFD-524 8HP Welding R404a

ZB66KQ-TFD-523 9HP Screw R22 ZB66=ZR108
ZB66KQ-TFD-524 9HP Welding R22
ZB66KQE-TFD-523 9HP Screw R404a
ZB66KQE-TFD-524 9HP Welding R404a

ZB76KQ-TFD-523 10HP Screw R22 ZB76=ZR125
ZB76KQ-TFD-524 10HP Welding R22
ZB76KQE-TFD-523 10HP Screw R404a
ZB76KQE-TFD-524 10HP Welding R404a

ZB88KQ-TFD-523 12HP Screw R22 ZB88=ZR144
ZB88KQ-TFD-524 12HP Welding R404a

ZB92KC-TWD-551 13HP Screw R22 ZB92=ZR16
ZB92KC-TWD-550 13HP Welding R22
ZB92KCE-TWD-551 13HP Screw R404a
ZB92KCE-TWD-550 13HP Welding R404a

ZB11MC-TWD-551 15HP Screw R22 ZB11=ZR19
ZB11MC-TWD-550 15HP Welding R22
ZB11MCE-TWD-551 15HP Screw R404a
ZB11MCE-TWD-550 15HP Welding R404a
