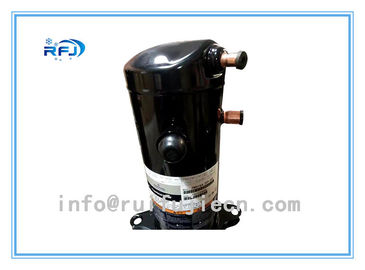

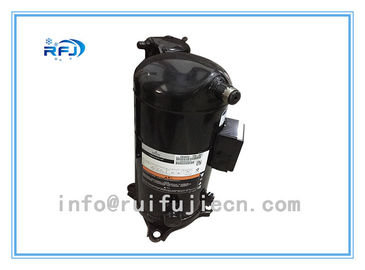

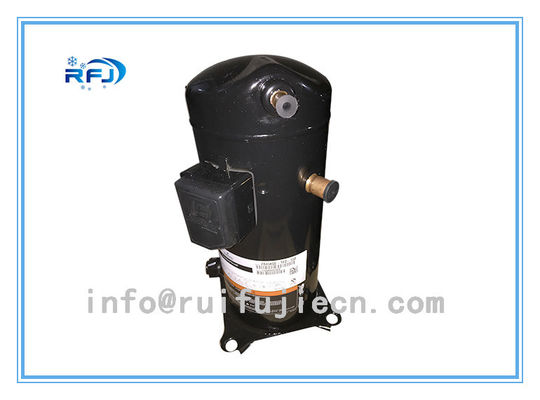

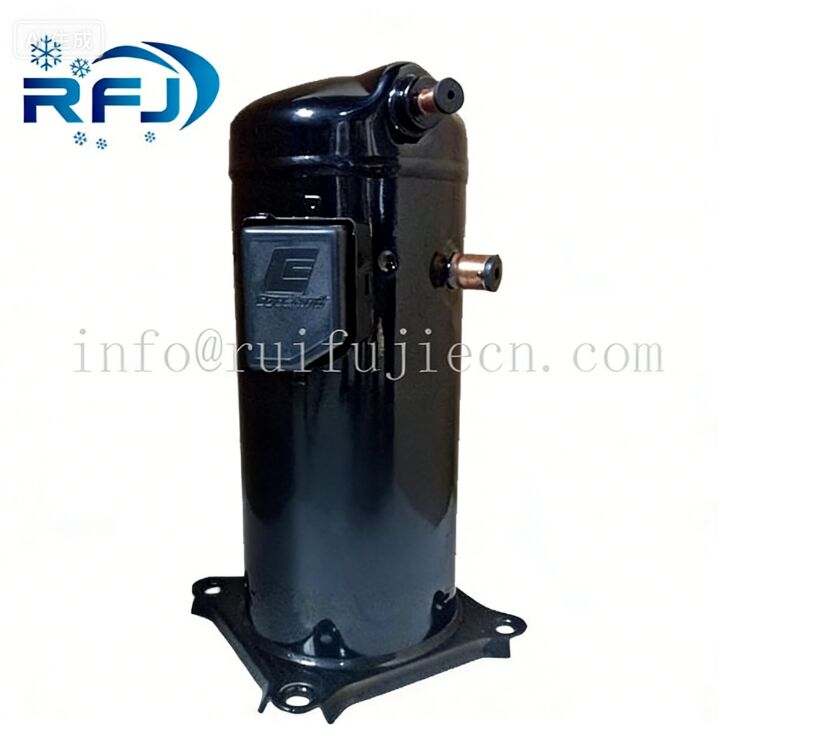

Black Air Conditoning Scroll Compressor 5HP Copeland ZB38KQE-PFJ-551

Name: Black Air Conditoning Scroll Compressor 5HP Copeland ZB38KQE-PFJ-551
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZB38KQE- PFJ -551
Price: 253.00 USD
Availability: InStock

Brand Name:	Copeland
Model Number:	ZB38KQE- PFJ -551
MOQ:	1pcs
Price:	discussed
Delivery Time:	7-10 working days after receiving payment
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/UL

Piston Type:

Scroll

Power Source:

AC Power

Drive Mode:

Electric

Configuration:

Stationary

Temperature:

Med/High Temperature

Voltage:

1phase / 220V-230V

Warranty:

One Year

Refrigerant:

R134/R404/R407/R507

Connection:

Rolatock

N.W:

38KG

Color:

Black

Application:

Refrigeration Parts

Gross Weight:

41KG

L*W*H:

242*242*457

HP:

5 HP

Packaging Details:

Wooden case or 12 units in one pallet

Supply Ability:

5,000pcs per month

Highlight:

copeland ac compressor

copeland a c compressor

Product Description

5HP Black Emerson Copeland ZB38KQE-PFJ-551 Air-Conditoning scroll compressor

Product Description

ZB Copeland scroll compressor for medium temperature refrigeration applications

Product Features

Oil sight glass
Schraeder connection for oil fill/drain
Supplied with soft mounting rubbers for single compressor operation (hard mountings required for multi compressor [pack] installations
Internal motor protection.

*Refrigerant: R404/R22 50Hz/60Hz

*Med / High Temperature

*Large operating envelope

*Fast temperature pull down capabilities

*Light weight and compactness

*Copeland Scroll Digital® Technology for simple, step-less capacity modulation

Type: Hermetic scroll compressors

Producer: Copeland

Series: ZB

Brand:	Copeland
Connection:	Rotalock
Dim 1 (mm):	438
Model Number:	ZB 38KQE PFJ 551
Warranty:	1 Year
Depth With Decoration Panel (mm):	242
Displacement CC:	14,4
Electric Supply:	220-230V/1ph/50Hz
Electrical Rating:	32
Refrigerant:	Refer to Copeland literature for approved refrigerants
Tube Connection Size (mm):	-
Valve Connections:	7/8
Width With Decoration Panel (mm):	242
Application Temperature (C):	-
Application Temperature (C):	-

Type: Hermetic scroll compressors

Producer: Copeland

Series: ZB

Model: ZB38KQE-PFJ-551

Technical data


Displacement [m³/h]:	14,4
Sound power [dBA]:	72
Sound pressure level [dB]:	61
Net Weight [kg]:	37,4
Oil charge [dm³]:	1,9
Maximum high pressure [bar]:	28,8
Maximum standstill pressure [bar]:	21
Minimal lowside temperature [°C]:	-35
Maximum lowside temperature [°C]:	50
PED category:	1

Electrical data


Power supply [V/~/Hz]:	220-240V/1/50Hz
Locked rotor current [A]:	142
Max. operating current [A]:	32,3
Winding resistance [Ω]:	0,4

Connections

		inches
Suction Rotolock valve connection:		1 1/4"
Discharge Rotolock valve connection:		1"
Suction connection with supplied sleeve:		7/8"
Discharge connection with supplied sleeve:		1/2"

Cooling capacity [kW]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	3.75	4.72	5.92	7.36	9.04	10.96	13.11	-	-	-	-
15	3.44	4.40	5.58	7.00	8.66	10.54	12.66	15.02	-	-	-
20	3.14	4.07	5.22	6.61	8.22	10.06	12.14	14.44	16.98	-	-
25	2.86	3.74	4.85	6.18	7.73	9.52	11.53	13.77	16.24	18.94	-
30	2.62	3.43	4.47	5.73	7.21	8.92	10.85	13.01	15.40	18.01	20.85
35	2.41	3.15	4.10	5.28	6.67	8.29	10.12	12.18	14.46	16.97	19.70
40	2.26	2.90	3.75	4.82	6.11	7.62	9.34	11.29	13.45	15.84	18.45
45	-	-	3.43	4.38	5.55	6.93	8.53	10.34	12.38	14.62	17.09
50	-	-	-	3.97	5.00	6.24	7.69	9.36	11.24	13.33	15.64
55	-	-	-	-	4.46	5.54	6.84	8.34	10.05	11.98	14.12
60	-	-	-	-	-	4.86	5.98	7.30	8.83	10.57	12.52

Power input [kW]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	1.96	2.00	2.03	2.07	2.11	2.18	2.28	-	-	-	-
15	2.15	2.20	2.23	2.26	2.30	2.35	2.43	2.55	-	-	-
20	2.36	2.42	2.45	2.49	2.52	2.56	2.63	2.72	2.85	-	-
25	2.59	2.66	2.70	2.74	2.77	2.81	2.86	2.93	3.04	3.19	-
30	2.83	2.92	2.98	3.02	3.05	3.09	3.13	3.19	3.27	3.40	3.57
35	3.10	3.21	3.28	3.33	3.37	3.40	3.44	3.49	3.56	3.66	3.81
40	3.39	3.52	3.61	3.67	3.72	3.75	3.79	3.83	3.89	3.98	4.10
45	-	-	3.96	4.04	4.10	4.14	4.18	4.22	4.27	4.34	4.45
50	-	-	-	4.45	4.52	4.57	4.61	4.65	4.70	4.76	4.85
55	-	-	-	-	4.97	5.03	5.08	5.13	5.17	5.23	5.30
60	-	-	-	-	-	5.54	5.60	5.65	5.69	5.75	5.82

Current [A]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	11.89	11.99	12.06	12.13	12.25	12.47	12.81	-	-	-	-
15	12.46	12.60	12.69	12.76	12.86	13.02	13.30	13.72	-	-	-
20	13.10	13.31	13.43	13.52	13.61	13.74	13.96	14.30	14.80	-	-
25	13.84	14.12	14.29	14.41	14.50	14.62	14.79	15.07	15.49	16.09	-
30	14.67	15.04	15.28	15.43	15.55	15.66	15.81	16.04	16.39	16.89	17.60
35	15.60	16.06	16.38	16.60	16.74	16.87	17.01	17.20	17.49	17.92	18.52
40	16.63	17.21	17.62	17.91	18.10	18.25	18.39	18.56	18.81	19.17	19.69
45	-	-	18.99	19.36	19.62	19.81	19.96	20.13	20.35	20.66	21.10
50	-	-	-	20.97	21.30	21.54	21.73	21.91	22.11	22.38	22.76
55	-	-	-	-	23.15	23.46	23.70	23.89	24.10	24.35	24.68
60	-	-	-	-	-	25.57	25.86	26.10	26.31	26.55	26.86

Mass flow [kg/h]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	71.90	94.52	120.74	151.03	185.83	225.61	270.81	-	-	-	-
15	70.15	92.49	118.83	149.62	185.31	226.36	273.23	326.37	-	-	-
20	68.30	90.07	116.22	147.21	183.50	225.53	273.76	328.65	390.65	-	-
25	66.58	87.48	113.15	144.04	180.62	223.33	272.63	328.98	392.82	464.62	-
30	65.23	84.95	109.84	140.34	176.90	220.00	270.07	327.57	392.96	466.69	549.21
35	64.46	82.71	106.52	136.32	172.58	215.76	266.30	324.66	391.29	466.65	551.20
40	64.50	80.99	103.41	132.23	167.88	210.84	261.55	320.47	388.05	464.75	551.02
45	-	-	100.76	128.28	163.03	205.48	256.06	315.24	383.46	461.20	548.89
50	-	-	-	124.71	158.26	199.89	250.04	309.18	377.76	456.23	545.05
55	-	-	-	-	153.80	194.31	243.74	302.54	371.17	450.08	539.72
60	-	-	-	-	-	188.97	237.37	295.54	363.92	442.96	533.13

C.O.P. [W/W]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	1.92	2.36	2.92	3.56	4.28	5.02	5.75	-	-	-	-
15	1.60	2.00	2.50	3.10	3.76	4.48	5.21	5.90	-	-	-
20	1.33	1.68	2.13	2.66	3.26	3.93	4.62	5.32	5.97	-	-
25	1.11	1.41	1.79	2.26	2.79	3.39	4.04	4.70	5.35	5.94	-
30	0.92	1.18	1.50	1.90	2.36	2.89	3.47	4.08	4.70	5.30	5.84
35	0.78	0.98	1.25	1.58	1.98	2.44	2.94	3.49	4.06	4.63	5.17
40	0.67	0.82	1.04	1.31	1.64	2.03	2.47	2.95	3.46	3.98	4.50
45	-	-	0.87	1.08	1.35	1.67	2.04	2.45	2.90	3.37	3.84
50	-	-	-	0.89	1.11	1.37	1.67	2.01	2.39	2.80	3.23
55	-	-	-	-	0.90	1.10	1.35	1.63	1.94	2.29	2.66
60	-	-	-	-	-	0.88	1.07	1.29	1.55	1.84	2.15

Application range


		Maximum evaporating temperature
		25ºC suction gas temperature
		10K gas overheat

Operating conditions: suction gas temperature 20ºC, 0K subcooling

t_c - Condensing temperature [ºC]

t_e - Evaporating temperature [ºC]

More ZB compressors we can supply

MODEL	SPECIFICATION	COMPARE WITH ZR SERIES
ZB15KQ-PFJ-524	2HP Welding R22	ZB15=ZR24
ZB15KQ-TFD-524	2HP Welding R22
ZB15KQE-PFJ-524	2HP Welding R404a
ZB15KQE-TFD-524	2HP Welding R404a

ZB19KQ-PFJ-524	2.3HP Welding R22	ZB19=ZR28
ZB19KQ-TFD-524	2.3HP Welding R22
ZB19KQE-PFJ-524	2.3HP Welding R404a
ZB19KQE-TFD-524	2.3HP Welding R404a

ZB21KQ-PFJ-524	3HP Welding R22	ZB21=ZR36
ZB21KQ-TFD-524	3HP Welding R22
ZB21KQE-PFJ-524	3HP Welding R404a
ZB21KQE-TFD-524	3HP Welding R404a

ZB26KQ-PFJ-524	3.5HP Welding R22	ZB26=ZR42
ZB26KQ-TFD-524	3.5HP Welding R22
ZB26KQE-PFJ-524	3.5HP Welding R404a
ZB26KQE-TFD-524	3.5HP Welding R404a

ZB30KQ-TFD-524	4HP Welding R22	ZB30=ZR49
ZB30KQE-TFD-524	4HP Welding R404a	ZB30=ZR49

ZB38KQ-TFD-524	5HP Welding R22	ZB38=ZR61
ZB38KQE-TFD-524	5HP Welding R404a	ZB38=ZR61

ZB45KQ-TFD-524	6HP Welding R22	ZB45=ZR72
ZB45KQE-TFD-524	6HP Welding R404a	ZB45=ZR72

ZB58KQ-TFD-523	8HP Screw R22	ZB58=ZR91
ZB58KQ-TFD-524	8HP Welding R22
ZB58KQE-TFD-523	8HP Screw R404a
ZB58KQE-TFD-524	8HP Welding R404a

ZB66KQ-TFD-523	9HP Screw R22	ZB66=ZR108
ZB66KQ-TFD-524	9HP Welding R22
ZB66KQE-TFD-523	9HP Screw R404a
ZB66KQE-TFD-524	9HP Welding R404a

ZB76KQ-TFD-523	10HP Screw R22	ZB76=ZR125
ZB76KQ-TFD-524	10HP Welding R22
ZB76KQE-TFD-523	10HP Screw R404a
ZB76KQE-TFD-524	10HP Welding R404a

ZB88KQ-TFD-523	12HP Screw R22	ZB88=ZR144
ZB88KQ-TFD-524	12HP Welding R404a	ZB88=ZR144

ZB92KC-TWD-551	13HP Screw R22	ZB92=ZR16
ZB92KC-TWD-550	13HP Welding R22
ZB92KCE-TWD-551	13HP Screw R404a
ZB92KCE-TWD-550	13HP Welding R404a

ZB11MC-TWD-551	15HP Screw R22	ZB11=ZR19
ZB11MC-TWD-550	15HP Welding R22
ZB11MCE-TWD-551	15HP Screw R404a
ZB11MCE-TWD-550	15HP Welding R404a

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB66KQ ZB66KQE	ZB76KQ ZB76KQE	ZB88KQ	ZB95KQ	ZB114KQ
Motor type	TFD
Nominal power(HP)	9	10	12	13	15
Displacement(m³/h)	25.7	28.8	33.2	36.4	43.4
Starting current(LRA)(Amp.)
TFD	100~111	110~118	110~118	140	174
PFJ
Rated Load Current(RLA)(Amp.)
TFD	17.3	19.2	22.1	22.1	27.1
PFJ
Max. operating current (MCC)(Amp.)
TFD	24.2	26.9	31	31	38
PFJ
Crankcase heater power(W)	90
Adapter outer diameter(in.)
Discharge Size	7/8	7/8	7/8	7/8	7/8
Suction Size	1 3/8	1 3/8	1 3/8	1 3/8	1 3/8
Dimenson(mm.)
Length(L)
Width(W)	284	284	284	285	285
Height(H)	546	546	546	552	553
Sole angles (aperture)	190X190 (8.5)
Oil Charge(L)	3.25	3.25	3.25	3.3	3.3
Weight(Kg)
Net Weight	59	62	62	62	63
Gross Weight	62	65	65	65	66

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB15KQ ZB15KQE	ZB19KQ ZB19KQE	ZB21KQ ZB21KQE	ZB26KQ ZB26KQE	ZB29KQ ZB29KQE	ZB38KQ ZB38KQE	ZB45KQ ZB45KQE	ZB48KQ ZB48KQE
Motor type	TFD
	PFJ	PFJ	PFJ	PFJ	PFJ
Nominal power(HP)	2	2.5	3	3.5	4	5	6	7

Displacement(m³/h)	5.9	6.8	8.6	9.9	11.4	14.5	17.2	18.8

Starting current(LRA) (Amp.)
TFD	24.5~26	30~32	36~40	41~46	50	58.6~65.5	67~74	101
PFJ	53~58	56~61	75~82	89~97	113

Rated Load Current(RLA) (Amp.)
TFD	4.30	4.30	5.70	7.10	7.90	8.90	11.50	12.1
PFJ	11.4	12.9	16.4	18.9	19.3

Max. operating current (MCC) (Amp.)
TFD	6.0	6.0	8.0	10.0	11.0	12.5	16.1	17.0
PFJ	16	18	23	24	27
Operating capacitance (single-phase)	40μF/370V	45μF/370V	50μF/370V	60μF/370V	60μF/370V
Crankcase heater power(W)	70

Adapter outer diameter(in.)
Discharge Size	1/2	1/2	1/2	1/2	1/2	1/2	1/2	3/4
Suction Size	3/4	3/4	3/4	3/4	7/8	7/8	7/8	7/8

Dimenson(mm.)
Length(L)	242	242	243	243	242	242	242	242
Width(W)	242	242	244	244	242	242	242	242
Height(H)	383	389	412	425	430	457	457	457
Sole angles (aperture)	190X190 (8.5)

Oil Charge(L)	1.18	1.45	1.45	1.45	1.36	1.89	1.89	1.80

Weight(Kg)
Net Weight	23	25	27	28	33	38	40	40
Gross Weight	26	29	30	31	37	41	44	44

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB66KQ ZB66KQE	ZB76KQ ZB76KQE	ZB88KQ	ZB95KQ	ZB114KQ
Motor type	TFD
Nominal power(HP)	9	10	12	13	15
Displacement(m³/h)	25.7	28.8	33.2	36.4	43.4
Starting current(LRA)(Amp.)
TFD	100~111	110~118	110~118	140	174
PFJ
Rated Load Current(RLA)(Amp.)
TFD	17.3	19.2	22.1	22.1	27.1
PFJ
Max. operating current (MCC)(Amp.)
TFD	24.2	26.9	31	31	38
PFJ
Crankcase heater power(W)	90
Adapter outer diameter(in.)
Discharge Size	7/8	7/8	7/8	7/8	7/8
Suction Size	1 3/8	1 3/8	1 3/8	1 3/8	1 3/8
Dimenson(mm.)
Length(L)
Width(W)	284	284	284	285	285
Height(H)	546	546	546	552	553
Sole angles (aperture)	190X190 (8.5)
Oil Charge(L)	3.25	3.25	3.25	3.3	3.3
Weight(Kg)
Net Weight	59	62	62	62	63
Gross Weight	62	65	65	65	66

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB15KQ ZB15KQE	ZB19KQ ZB19KQE	ZB21KQ ZB21KQE	ZB26KQ ZB26KQE	ZB29KQ ZB29KQE	ZB38KQ ZB38KQE	ZB45KQ ZB45KQE	ZB48KQ ZB48KQE
Motor type	TFD
	PFJ	PFJ	PFJ	PFJ	PFJ
Nominal power(HP)	2	2.5	3	3.5	4	5	6	7

Displacement(m³/h)	5.9	6.8	8.6	9.9	11.4	14.5	17.2	18.8

Starting current(LRA) (Amp.)
TFD	24.5~26	30~32	36~40	41~46	50	58.6~65.5	67~74	101
PFJ	53~58	56~61	75~82	89~97	113

Rated Load Current(RLA) (Amp.)
TFD	4.30	4.30	5.70	7.10	7.90	8.90	11.50	12.1
PFJ	11.4	12.9	16.4	18.9	19.3

Max. operating current (MCC) (Amp.)
TFD	6.0	6.0	8.0	10.0	11.0	12.5	16.1	17.0
PFJ	16	18	23	24	27
Operating capacitance (single-phase)	40μF/370V	45μF/370V	50μF/370V	60μF/370V	60μF/370V
Crankcase heater power(W)	70

Adapter outer diameter(in.)
Discharge Size	1/2	1/2	1/2	1/2	1/2	1/2	1/2	3/4
Suction Size	3/4	3/4	3/4	3/4	7/8	7/8	7/8	7/8

Dimenson(mm.)
Length(L)	242	242	243	243	242	242	242	242
Width(W)	242	242	244	244	242	242	242	242
Height(H)	383	389	412	425	430	457	457	457
Sole angles (aperture)	190X190 (8.5)

Oil Charge(L)	1.18	1.45	1.45	1.45	1.36	1.89	1.89	1.80

Weight(Kg)
Net Weight	23	25	27	28	33	38	40	40
Gross Weight	26	29	30	31	37	41	44	44

Tags:

Products Details

Home Products

Copeland Scroll Compressor

Black Air Conditoning Scroll Compressor 5HP Copeland ZB38KQE-PFJ-551

All Category

Black Air Conditoning Scroll Compressor 5HP Copeland ZB38KQE-PFJ-551

Brand Name:	Copeland
Model Number:	ZB38KQE- PFJ -551
MOQ:	1pcs
Price:	discussed
Packaging Details:	Wooden case or 12 units in one pallet
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

Copeland

Certification:

CE/UL

Model Number:

ZB38KQE- PFJ -551

Piston Type:

Scroll

Power Source:

AC Power

Drive Mode:

Electric

Configuration:

Stationary

Temperature:

Med/High Temperature

Voltage:

1phase / 220V-230V

Warranty:

One Year

Refrigerant:

R134/R404/R407/R507

Connection:

Rolatock

N.W:

38KG

Color:

Black

Application:

Refrigeration Parts

Gross Weight:

41KG

L*W*H:

242*242*457

HP:

5 HP

Minimum Order Quantity:

1pcs

Price:

discussed

Packaging Details:

Wooden case or 12 units in one pallet

Delivery Time:

7-10 working days after receiving payment

Payment Terms:

L/C, T/T, Western Union

Supply Ability:

5,000pcs per month

Highlight:

copeland ac compressor

copeland a c compressor

Product Description

5HP Black Emerson Copeland ZB38KQE-PFJ-551 Air-Conditoning scroll compressor

Product Description

ZB Copeland scroll compressor for medium temperature refrigeration applications

Product Features

Oil sight glass
Schraeder connection for oil fill/drain
Supplied with soft mounting rubbers for single compressor operation (hard mountings required for multi compressor [pack] installations
Internal motor protection.

Type: Hermetic scroll compressors

Producer: Copeland

Series: ZB

Brand:	Copeland
Connection:	Rotalock
Dim 1 (mm):	438
Model Number:	ZB 38KQE PFJ 551
Warranty:	1 Year
Depth With Decoration Panel (mm):	242
Displacement CC:	14,4
Electric Supply:	220-230V/1ph/50Hz
Electrical Rating:	32
Refrigerant:	Refer to Copeland literature for approved refrigerants
Tube Connection Size (mm):	-
Valve Connections:	7/8
Width With Decoration Panel (mm):	242
Application Temperature (C):	-
Application Temperature (C):	-

Type: Hermetic scroll compressors

Producer: Copeland

Series: ZB

Model: ZB38KQE-PFJ-551

Technical data


Displacement [m³/h]:	14,4
Sound power [dBA]:	72
Sound pressure level [dB]:	61
Net Weight [kg]:	37,4
Oil charge [dm³]:	1,9
Maximum high pressure [bar]:	28,8
Maximum standstill pressure [bar]:	21
Minimal lowside temperature [°C]:	-35
Maximum lowside temperature [°C]:	50
PED category:	1

Electrical data


Power supply [V/~/Hz]:	220-240V/1/50Hz
Locked rotor current [A]:	142
Max. operating current [A]:	32,3
Winding resistance [Ω]:	0,4

Connections

		inches
Suction Rotolock valve connection:		1 1/4"
Discharge Rotolock valve connection:		1"
Suction connection with supplied sleeve:		7/8"
Discharge connection with supplied sleeve:		1/2"

Cooling capacity [kW]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	3.75	4.72	5.92	7.36	9.04	10.96	13.11	-	-	-	-
15	3.44	4.40	5.58	7.00	8.66	10.54	12.66	15.02	-	-	-
20	3.14	4.07	5.22	6.61	8.22	10.06	12.14	14.44	16.98	-	-
25	2.86	3.74	4.85	6.18	7.73	9.52	11.53	13.77	16.24	18.94	-
30	2.62	3.43	4.47	5.73	7.21	8.92	10.85	13.01	15.40	18.01	20.85
35	2.41	3.15	4.10	5.28	6.67	8.29	10.12	12.18	14.46	16.97	19.70
40	2.26	2.90	3.75	4.82	6.11	7.62	9.34	11.29	13.45	15.84	18.45
45	-	-	3.43	4.38	5.55	6.93	8.53	10.34	12.38	14.62	17.09
50	-	-	-	3.97	5.00	6.24	7.69	9.36	11.24	13.33	15.64
55	-	-	-	-	4.46	5.54	6.84	8.34	10.05	11.98	14.12
60	-	-	-	-	-	4.86	5.98	7.30	8.83	10.57	12.52

Power input [kW]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	1.96	2.00	2.03	2.07	2.11	2.18	2.28	-	-	-	-
15	2.15	2.20	2.23	2.26	2.30	2.35	2.43	2.55	-	-	-
20	2.36	2.42	2.45	2.49	2.52	2.56	2.63	2.72	2.85	-	-
25	2.59	2.66	2.70	2.74	2.77	2.81	2.86	2.93	3.04	3.19	-
30	2.83	2.92	2.98	3.02	3.05	3.09	3.13	3.19	3.27	3.40	3.57
35	3.10	3.21	3.28	3.33	3.37	3.40	3.44	3.49	3.56	3.66	3.81
40	3.39	3.52	3.61	3.67	3.72	3.75	3.79	3.83	3.89	3.98	4.10
45	-	-	3.96	4.04	4.10	4.14	4.18	4.22	4.27	4.34	4.45
50	-	-	-	4.45	4.52	4.57	4.61	4.65	4.70	4.76	4.85
55	-	-	-	-	4.97	5.03	5.08	5.13	5.17	5.23	5.30
60	-	-	-	-	-	5.54	5.60	5.65	5.69	5.75	5.82

Current [A]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	11.89	11.99	12.06	12.13	12.25	12.47	12.81	-	-	-	-
15	12.46	12.60	12.69	12.76	12.86	13.02	13.30	13.72	-	-	-
20	13.10	13.31	13.43	13.52	13.61	13.74	13.96	14.30	14.80	-	-
25	13.84	14.12	14.29	14.41	14.50	14.62	14.79	15.07	15.49	16.09	-
30	14.67	15.04	15.28	15.43	15.55	15.66	15.81	16.04	16.39	16.89	17.60
35	15.60	16.06	16.38	16.60	16.74	16.87	17.01	17.20	17.49	17.92	18.52
40	16.63	17.21	17.62	17.91	18.10	18.25	18.39	18.56	18.81	19.17	19.69
45	-	-	18.99	19.36	19.62	19.81	19.96	20.13	20.35	20.66	21.10
50	-	-	-	20.97	21.30	21.54	21.73	21.91	22.11	22.38	22.76
55	-	-	-	-	23.15	23.46	23.70	23.89	24.10	24.35	24.68
60	-	-	-	-	-	25.57	25.86	26.10	26.31	26.55	26.86

Mass flow [kg/h]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	71.90	94.52	120.74	151.03	185.83	225.61	270.81	-	-	-	-
15	70.15	92.49	118.83	149.62	185.31	226.36	273.23	326.37	-	-	-
20	68.30	90.07	116.22	147.21	183.50	225.53	273.76	328.65	390.65	-	-
25	66.58	87.48	113.15	144.04	180.62	223.33	272.63	328.98	392.82	464.62	-
30	65.23	84.95	109.84	140.34	176.90	220.00	270.07	327.57	392.96	466.69	549.21
35	64.46	82.71	106.52	136.32	172.58	215.76	266.30	324.66	391.29	466.65	551.20
40	64.50	80.99	103.41	132.23	167.88	210.84	261.55	320.47	388.05	464.75	551.02
45	-	-	100.76	128.28	163.03	205.48	256.06	315.24	383.46	461.20	548.89
50	-	-	-	124.71	158.26	199.89	250.04	309.18	377.76	456.23	545.05
55	-	-	-	-	153.80	194.31	243.74	302.54	371.17	450.08	539.72
60	-	-	-	-	-	188.97	237.37	295.54	363.92	442.96	533.13

C.O.P. [W/W]

t_c t_e	-40	-35	-30	-25	-20	-15	-10	-5	0	5	10
10	1.92	2.36	2.92	3.56	4.28	5.02	5.75	-	-	-	-
15	1.60	2.00	2.50	3.10	3.76	4.48	5.21	5.90	-	-	-
20	1.33	1.68	2.13	2.66	3.26	3.93	4.62	5.32	5.97	-	-
25	1.11	1.41	1.79	2.26	2.79	3.39	4.04	4.70	5.35	5.94	-
30	0.92	1.18	1.50	1.90	2.36	2.89	3.47	4.08	4.70	5.30	5.84
35	0.78	0.98	1.25	1.58	1.98	2.44	2.94	3.49	4.06	4.63	5.17
40	0.67	0.82	1.04	1.31	1.64	2.03	2.47	2.95	3.46	3.98	4.50
45	-	-	0.87	1.08	1.35	1.67	2.04	2.45	2.90	3.37	3.84
50	-	-	-	0.89	1.11	1.37	1.67	2.01	2.39	2.80	3.23
55	-	-	-	-	0.90	1.10	1.35	1.63	1.94	2.29	2.66
60	-	-	-	-	-	0.88	1.07	1.29	1.55	1.84	2.15

Application range


		Maximum evaporating temperature
		25ºC suction gas temperature
		10K gas overheat

Operating conditions: suction gas temperature 20ºC, 0K subcooling

t_c - Condensing temperature [ºC]

t_e - Evaporating temperature [ºC]

More ZB compressors we can supply

MODEL	SPECIFICATION	COMPARE WITH ZR SERIES
ZB15KQ-PFJ-524	2HP Welding R22	ZB15=ZR24
ZB15KQ-TFD-524	2HP Welding R22
ZB15KQE-PFJ-524	2HP Welding R404a
ZB15KQE-TFD-524	2HP Welding R404a

ZB19KQ-PFJ-524	2.3HP Welding R22	ZB19=ZR28
ZB19KQ-TFD-524	2.3HP Welding R22
ZB19KQE-PFJ-524	2.3HP Welding R404a
ZB19KQE-TFD-524	2.3HP Welding R404a

ZB21KQ-PFJ-524	3HP Welding R22	ZB21=ZR36
ZB21KQ-TFD-524	3HP Welding R22
ZB21KQE-PFJ-524	3HP Welding R404a
ZB21KQE-TFD-524	3HP Welding R404a

ZB26KQ-PFJ-524	3.5HP Welding R22	ZB26=ZR42
ZB26KQ-TFD-524	3.5HP Welding R22
ZB26KQE-PFJ-524	3.5HP Welding R404a
ZB26KQE-TFD-524	3.5HP Welding R404a

ZB30KQ-TFD-524	4HP Welding R22	ZB30=ZR49
ZB30KQE-TFD-524	4HP Welding R404a	ZB30=ZR49

ZB38KQ-TFD-524	5HP Welding R22	ZB38=ZR61
ZB38KQE-TFD-524	5HP Welding R404a	ZB38=ZR61

ZB45KQ-TFD-524	6HP Welding R22	ZB45=ZR72
ZB45KQE-TFD-524	6HP Welding R404a	ZB45=ZR72

ZB58KQ-TFD-523	8HP Screw R22	ZB58=ZR91
ZB58KQ-TFD-524	8HP Welding R22
ZB58KQE-TFD-523	8HP Screw R404a
ZB58KQE-TFD-524	8HP Welding R404a

ZB66KQ-TFD-523	9HP Screw R22	ZB66=ZR108
ZB66KQ-TFD-524	9HP Welding R22
ZB66KQE-TFD-523	9HP Screw R404a
ZB66KQE-TFD-524	9HP Welding R404a

ZB76KQ-TFD-523	10HP Screw R22	ZB76=ZR125
ZB76KQ-TFD-524	10HP Welding R22
ZB76KQE-TFD-523	10HP Screw R404a
ZB76KQE-TFD-524	10HP Welding R404a

ZB88KQ-TFD-523	12HP Screw R22	ZB88=ZR144
ZB88KQ-TFD-524	12HP Welding R404a	ZB88=ZR144

ZB92KC-TWD-551	13HP Screw R22	ZB92=ZR16
ZB92KC-TWD-550	13HP Welding R22
ZB92KCE-TWD-551	13HP Screw R404a
ZB92KCE-TWD-550	13HP Welding R404a

ZB11MC-TWD-551	15HP Screw R22	ZB11=ZR19
ZB11MC-TWD-550	15HP Welding R22
ZB11MCE-TWD-551	15HP Screw R404a
ZB11MCE-TWD-550	15HP Welding R404a

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB66KQ ZB66KQE	ZB76KQ ZB76KQE	ZB88KQ	ZB95KQ	ZB114KQ
Motor type	TFD
Nominal power(HP)	9	10	12	13	15
Displacement(m³/h)	25.7	28.8	33.2	36.4	43.4
Starting current(LRA)(Amp.)
TFD	100~111	110~118	110~118	140	174
PFJ
Rated Load Current(RLA)(Amp.)
TFD	17.3	19.2	22.1	22.1	27.1
PFJ
Max. operating current (MCC)(Amp.)
TFD	24.2	26.9	31	31	38
PFJ
Crankcase heater power(W)	90
Adapter outer diameter(in.)
Discharge Size	7/8	7/8	7/8	7/8	7/8
Suction Size	1 3/8	1 3/8	1 3/8	1 3/8	1 3/8
Dimenson(mm.)
Length(L)
Width(W)	284	284	284	285	285
Height(H)	546	546	546	552	553
Sole angles (aperture)	190X190 (8.5)
Oil Charge(L)	3.25	3.25	3.25	3.3	3.3
Weight(Kg)
Net Weight	59	62	62	62	63
Gross Weight	62	65	65	65	66

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB15KQ ZB15KQE	ZB19KQ ZB19KQE	ZB21KQ ZB21KQE	ZB26KQ ZB26KQE	ZB29KQ ZB29KQE	ZB38KQ ZB38KQE	ZB45KQ ZB45KQE	ZB48KQ ZB48KQE
Motor type	TFD
	PFJ	PFJ	PFJ	PFJ	PFJ
Nominal power(HP)	2	2.5	3	3.5	4	5	6	7

Displacement(m³/h)	5.9	6.8	8.6	9.9	11.4	14.5	17.2	18.8

Starting current(LRA) (Amp.)
TFD	24.5~26	30~32	36~40	41~46	50	58.6~65.5	67~74	101
PFJ	53~58	56~61	75~82	89~97	113

Rated Load Current(RLA) (Amp.)
TFD	4.30	4.30	5.70	7.10	7.90	8.90	11.50	12.1
PFJ	11.4	12.9	16.4	18.9	19.3

Max. operating current (MCC) (Amp.)
TFD	6.0	6.0	8.0	10.0	11.0	12.5	16.1	17.0
PFJ	16	18	23	24	27
Operating capacitance (single-phase)	40μF/370V	45μF/370V	50μF/370V	60μF/370V	60μF/370V
Crankcase heater power(W)	70

Adapter outer diameter(in.)
Discharge Size	1/2	1/2	1/2	1/2	1/2	1/2	1/2	3/4
Suction Size	3/4	3/4	3/4	3/4	7/8	7/8	7/8	7/8

Dimenson(mm.)
Length(L)	242	242	243	243	242	242	242	242
Width(W)	242	242	244	244	242	242	242	242
Height(H)	383	389	412	425	430	457	457	457
Sole angles (aperture)	190X190 (8.5)

Oil Charge(L)	1.18	1.45	1.45	1.45	1.36	1.89	1.89	1.80

Weight(Kg)
Net Weight	23	25	27	28	33	38	40	40
Gross Weight	26	29	30	31	37	41	44	44

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB66KQ ZB66KQE	ZB76KQ ZB76KQE	ZB88KQ	ZB95KQ	ZB114KQ
Motor type	TFD
Nominal power(HP)	9	10	12	13	15
Displacement(m³/h)	25.7	28.8	33.2	36.4	43.4
Starting current(LRA)(Amp.)
TFD	100~111	110~118	110~118	140	174
PFJ
Rated Load Current(RLA)(Amp.)
TFD	17.3	19.2	22.1	22.1	27.1
PFJ
Max. operating current (MCC)(Amp.)
TFD	24.2	26.9	31	31	38
PFJ
Crankcase heater power(W)	90
Adapter outer diameter(in.)
Discharge Size	7/8	7/8	7/8	7/8	7/8
Suction Size	1 3/8	1 3/8	1 3/8	1 3/8	1 3/8
Dimenson(mm.)
Length(L)
Width(W)	284	284	284	285	285
Height(H)	546	546	546	552	553
Sole angles (aperture)	190X190 (8.5)
Oil Charge(L)	3.25	3.25	3.25	3.3	3.3
Weight(Kg)
Net Weight	59	62	62	62	63
Gross Weight	62	65	65	65	66

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model	ZB15KQ ZB15KQE	ZB19KQ ZB19KQE	ZB21KQ ZB21KQE	ZB26KQ ZB26KQE	ZB29KQ ZB29KQE	ZB38KQ ZB38KQE	ZB45KQ ZB45KQE	ZB48KQ ZB48KQE
Motor type	TFD
	PFJ	PFJ	PFJ	PFJ	PFJ
Nominal power(HP)	2	2.5	3	3.5	4	5	6	7

Displacement(m³/h)	5.9	6.8	8.6	9.9	11.4	14.5	17.2	18.8

Starting current(LRA) (Amp.)
TFD	24.5~26	30~32	36~40	41~46	50	58.6~65.5	67~74	101
PFJ	53~58	56~61	75~82	89~97	113

Rated Load Current(RLA) (Amp.)
TFD	4.30	4.30	5.70	7.10	7.90	8.90	11.50	12.1
PFJ	11.4	12.9	16.4	18.9	19.3

Max. operating current (MCC) (Amp.)
TFD	6.0	6.0	8.0	10.0	11.0	12.5	16.1	17.0
PFJ	16	18	23	24	27
Operating capacitance (single-phase)	40μF/370V	45μF/370V	50μF/370V	60μF/370V	60μF/370V
Crankcase heater power(W)	70

Adapter outer diameter(in.)
Discharge Size	1/2	1/2	1/2	1/2	1/2	1/2	1/2	3/4
Suction Size	3/4	3/4	3/4	3/4	7/8	7/8	7/8	7/8

Dimenson(mm.)
Length(L)	242	242	243	243	242	242	242	242
Width(W)	242	242	244	244	242	242	242	242
Height(H)	383	389	412	425	430	457	457	457
Sole angles (aperture)	190X190 (8.5)

Oil Charge(L)	1.18	1.45	1.45	1.45	1.36	1.89	1.89	1.80

Weight(Kg)
Net Weight	23	25	27	28	33	38	40	40
Gross Weight	26	29	30	31	37	41	44	44

Tags:

Shenzhen Ruifujie Technology Co., Ltd.

Refrigeration Evaporator

DJ/Low Temperature Evaporator

Refrigeration Condensing Units

Screw Type Condensing Units

Air-Cooled Condensing Units

Water-Cooled Condensing Units

Refrigeration Scroll Compressor

Semi Hermetic Refrigeration Compressor

Carlyle Compressor

Copeland Scroll Compressor

Piston Compressor

Screw Type Compressor

Hitachi Scroll Compressor

Embraco Aspera Compressor

AC Rotary Compressor

Air Cooled Condenser

Refrigeration Parts

Industrial Cold Room

Flake Ice Machine

Block Ice Machine

Refrigeration Evaporator

DJ/Low Temperature Evaporator

Refrigeration Condensing Units

Screw Type Condensing Units

Air-Cooled Condensing Units

Water-Cooled Condensing Units

Refrigeration Scroll Compressor

Semi Hermetic Refrigeration Compressor

Carlyle Compressor

Copeland Scroll Compressor

Piston Compressor

Screw Type Compressor

Hitachi Scroll Compressor

Embraco Aspera Compressor

AC Rotary Compressor

Air Cooled Condenser

Refrigeration Parts

Industrial Cold Room

Flake Ice Machine

Block Ice Machine

products details

Black Air Conditoning Scroll Compressor 5HP Copeland ZB38KQE-PFJ-551

copeland ac compressor

copeland a c compressor

Product Description

Product Features

Products Details

Refrigeration Evaporator

DJ/Low Temperature Evaporator

Refrigeration Condensing Units

Screw Type Condensing Units

Air-Cooled Condensing Units

Water-Cooled Condensing Units

Refrigeration Scroll Compressor

Semi Hermetic Refrigeration Compressor

Carlyle Compressor

Copeland Scroll Compressor

Piston Compressor

Screw Type Compressor

Hitachi Scroll Compressor

Embraco Aspera Compressor

AC Rotary Compressor

Air Cooled Condenser

Refrigeration Parts

Industrial Cold Room

Flake Ice Machine

Block Ice Machine

Black Air Conditoning Scroll Compressor 5HP Copeland ZB38KQE-PFJ-551

copeland ac compressor

copeland a c compressor

Product Description

Product Features
