Maneurop Refrigeration Model MTZ22 - 5VI 1 Phase Piston Reciprocating Compressor

China Maneurop Refrigeration Model MTZ22 - 5VI 1 Phase Piston Reciprocating Compressor supplier
Maneurop Refrigeration Model MTZ22 - 5VI 1 Phase Piston Reciprocating Compressor supplier Maneurop Refrigeration Model MTZ22 - 5VI 1 Phase Piston Reciprocating Compressor supplier Maneurop Refrigeration Model MTZ22 - 5VI 1 Phase Piston Reciprocating Compressor supplier Maneurop Refrigeration Model MTZ22 - 5VI 1 Phase Piston Reciprocating Compressor supplier

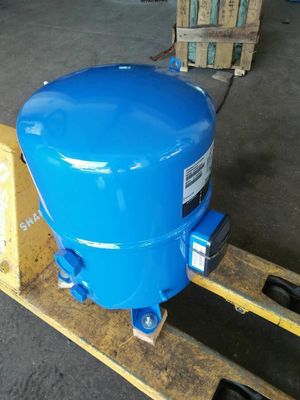

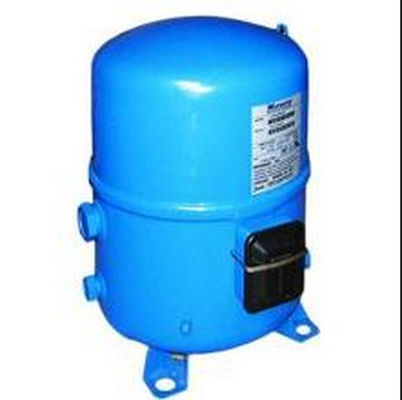

Large Image :  Maneurop Refrigeration Model MTZ22 - 5VI 1 Phase Piston Reciprocating Compressor

Product Details:

Place of Origin: France
Brand Name: Maneurop
Certification: CE, ROHS
Model Number: MTZ22-5VI

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: Wooden case
Delivery Time: 7-10 working days after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Piston Type: Reciprocating Configuration: Stationary
Power Source: AC Power Lubrication Style: Lubricated
Gas: 407C;R134a;R404A;R507 Drive Mode: Electric
Color: Blue Type: Refrigeration Piston Compressor
Temperature: Middle/High Voltage: 230
Electric Supply: 230v/one Phase/50Hz N.W: 23KGS

Maneurop Refrigeration model MTZ22-5VI 1 phase Piston reciprocating compressor​



Product Description

The Danfoss compressor range goes from small direct current hermetic compressors for mobile applications up to large scroll compressors for commercial air conditioning or industrial applications. Special versions, such as energy optimized compressors, variable speed compressors and compressors for solar applications are available. The range covers all common HFC, HCFC and CFC refrigerants as well as hydro-carbons for the smaller models. Danfoss compressors are used in numerous applications such as white goods, mobile refrigeration, light commercial refrigeration, commercial refrigeration and air conditioning.

Product Features

  • MTZ compressors for R407C, R134A, R404A H/MBP 380-400V/3~/50Hz and 460V/3~/60Hz
  • Compressors are supplied with rotorlock connections, oil equalization port and sight glass
  • 1. Test Conditions: Condensing temperature 40°C, return gas temperature 20 °C, subcooling 0 K
  • 2. Voltage Range: 340-440V/50Hz, 414-506/60Hz
  • 3. Evaporating temperature range: -15 to -15°C R407C, -15 to -20°C R134a, -25 to 10°C R404A (Condensing temperature = 55°C). For other conditions please see catalogue
  • 4. For commercial refrigeration and air conditioning applications



Specification:



Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications.



There are 26 different models with displacement ranging from 30-543cm3/rev.



Our Maneurop compressors are for 50Hz, motor code is 4, can be used for R22/R407C/R134a/R404A/R507



1. Piston /reciprocating type compressors.



2. Voltage is 50Hz



3. The refrigerant are R22/R407C/R134a/R404A/R507



4. There are MT/MTZ series



5. Original from France.



6. Capacity: 1.5HP~13HP, High efficiency, Low noise



1. MT series for R134a

2. MTZ series for R407c/134a



1. 50 Hz

2. Imported form France.

3. R22 Rated condition:50Hz/400V

superheat:11.1K

subcooling 8.3K condensing temp:54.4°C



4. R407C Rated condition :50Hz 400V

superheat:11.1K

subcooling 8.3K condensing temp:54.4°C

evaporating temp.7.2°C



refrigeration and power input±5%



Brand: Maneurop
Connection: -
Dim 1 (mm): 333
Model Number: MTZ22-5VI
Voltage: 230
Warranty: 1 Year
Depth With Decoration Panel (mm): -
Displacement CC: 38,12
Electric Supply: 230v/one phase/50Hz
Electrical Rating: -
Phase: -
Refrigerant: R407C;R134a;R404A;R507
Refrigerant Suitability: R404A/R507, R407C, R13a
Tube Connection Size (mm): 0 ?/?
Valve Connections: -
Width With Decoration Panel (mm): -
Horse Power: 1,8
Expansion Device: V
Application Temperature (C): Med;High
Application Temperature (C): Med;High





TYPE CODE MTZ
NET WEIGHT 23.00 Kg
APPROVAL STANDARDS CCC certified; CE certified
AUXILIARY WINDING RESISTANCE (START WINDING) FOR SINGLE-PHASE COMPRESSORS [OHM] 4.74
BRAND TECHNIQUE Reciprocating compressor
CAPACITY CONTROL Fixed speed
CAPACITY OF CAPACITOR A 20
CAPACITY OF CAPACITOR B 100 µF
CAPACITY OF CAPACITOR C 10
CONFIGURATION CODE Single
CONNECTION TYPE Rotolock
CYLINDER 1
DISCHARGE CONNECTION MOUNTING TORQUE [NM] 80
DISCHARGE CONNECTION PIPE SIZE [IN] 3/8
DISCHARGE CONNECTION ROTOLOCK SIZE [IN] 1
DISCHARGE CONNECTION SIZE [IN] 1
DISCHARGE CONNECTION SLEEVE PIPE SIZE [IN] 3/8
DRAWING NUMBER 8501021e
ECONOMIZER No
FACTORY HP [BAR] 25
FACTORY LP [BAR] 25
FITTING REMARK (shipped with rotolock version only)
FITTING SLEEVE ODF
FITTING STANDARD Rotolock
FREQUENCY [HZ] 50
GP LP TORQUE [NM] 15
GAUGE PORT HP None
GAUGE PORT LP Schrader
GENERATION CODE no
GLASS MOUNTING Threaded
GLASS TORQUE [NM] 50
GROSS WEIGHT 24.88 Kg
HIGH VALUE OF NOMINAL VOLTAGE AT 50HZ [V] 230
HIGH VALUE OF NOMINAL VOLTAGE AT 60HZ [V] 0
HIGH VALUE OF VOLTAGE RANGE AT 50HZ [V] 253
HIGH VALUE OF VOLTAGE RANGE AT 60HZ [V] 0
IP PROTECTION CLASS IP55 (with cable gland)
LRA 41 A
LOW VALUE OF NOMINAL VOLTAGE AT 50HZ [V] 230
LOW VALUE OF NOMINAL VOLTAGE AT 60HZ [V] 0
LOW VALUE OF VOLTAGE RANGE AT 50HZ [V] 207
LOW VALUE OF VOLTAGE RANGE AT 60HZ [V] 0
MCC 15 A
MAIN WINDING RESISTANCE FOR SINGLE-PHASE COMPRESSORS [OHM] 1.78
MODEL NUMBER MTZ22JC5VE
MOTOR PROTECTION Internal overload protector
MOUNTING TORQUE [NM] 15
NOMINAL COOLING CAPACITY AT 50HZ 2.6
NOMINAL COOLING CAPACITY AT 60HZ 3.6
NUMBER OF STARTS PER HOUR 12
OIL CHARGE [CM3] 0.95
OIL EQUALIZATION 3/8'' flare SAE
OIL EQUALIZATION TORQUE [NM] 48
OIL REFERENCE 160PZ
PACKAGING HEIGHT [MM] 385
PACKAGING LENGTH [MM] 330
PACKAGING WEIGHT [KG] 25
PACKAGING WIDTH [MM] 295
PACKING FORMAT Single pack
PACKING QUANTITY 1
PHASE 1
POWER CONNECTIONS Spade
REFRIGERANT R134a; R404A; R407A; R407C; R407F; R507A
REFRIGERANT CHARGE [KG] 2.5
RELIEF VALVE 30 bar/8 bar
ROTATIONAL SPEED AT 50HZ [RPM] 2900
ROTATIONAL SPEED AT 60HZ [RPM] 0
SEGMENT USAGE Air conditioning; Refrigeration MT
SHIPPED FITTINGS Suction and discharge solder sleeves, rotolock nuts, and gaskets
SHIPPED INSTRUCTIONS Installation instructions
SHIPPED MOUNTING Mounting kit with grommets, bolts, nuts, sleeves and washers
SHIPPED OIL Initial oil charge
SPEED PLATFORM Fixed-speed





We can supply more Danfoss compressor models as below:



MODEL (R22) MODEL (R404A) NTZ series
MT18-4VM MTZ18-4VM NTZ048A4LR1A
MT22-4VM MTZ22-4VM NTZ068A4LR1A
MT28-4VM MTZ28-4VM NTZ096A4LR1A
MT32-4VM MTZ32-4VM NTZ108A4LR1A
MT36-4VM MTZ36-4VM NTZ136A4LR1A
MT40-4VM MTZ40-4VM NTZ215A4LR1A
MT44-4VM MTZ44-4VM NTZ271A4LR1A
MT50-4VM MTZ50-4VM
MT56-4VM MTZ56-4VM
MT64-4VM MTZ64-4VM
MT72-4VM MTZ72-4VM
MT80-4VM MTZ80-4VM
MT100-4VM MTZ100-4VM
MT125-4VM MTZ125-4VM
MT144-4VM MTZ144-4VM
MT160-4VM MTZ160-4VM



Model NO. Nom HP Displ. Cc/rev Capacity R404a(w)
-10 -5
MTZ18-4VI 1.5 30.2 1580 2110
MTZ18-5VI 1.5 30.2 1580 2110
MTZ22-4VI 1.8 38.12 2270 2920
MTZ22-5VI 1.8 38.12 2270 2920
MTZ28-4VI 2.3 48.06 2880 3720
MTZ28-5VI 2.3 48.06 2880 3720
MTZ32-4VI 2.7 53.86 3230 4220
MTZ32-5VI 2.7 53.86 3230 4220
MTZ36-4VI 3 60.47 3800 4870
MTZ36-5VI 3 60.47 3800 4870
MTZ40-4VI 3.3 67.89 4280 5490
MTZ45-4VI 3.8 76.22 4420 5840
MTZ51-4VI 4.2 85.64 5290 6920
MTZ57-4VI 4.8 96.13 6060 7880
MTZ65-4VI 5.4 107.71  7080 9130
MTZ73-4VI 6.1 120.94 7960 10230
MTZ81-4VI 6.8 135.78   9160 11720
MTZ100-4VI 8.3 171.26 10390 13500
MTZ125-4VI 10.4 215.44 13650  17500
MTZ144-4VI 12 241.87 15740  20120
MTZ160-4VI 13.3 271.55 17690  22520



Code no. HP MT-R22 MTZ-R407C MTZ-R134a MTZ-R404
Kw BTUH EER Kw BTUH EER Kw BTUH EER Kw BTUH EER
MT/MTZ18 1.5 1.74 15900 9.15 1.67 15300 9.13 1.22 11200 9.2 1.76 10300 5.1
MT/MTZ22 2 2.27 22000 9.68 2.17 19600 9 1.54 14800 9.63 2.05 14100 6.01
MT/MTZ28 2.5 3.07 30200 9.86 2.83 25100 8.9 2.04 19300 9.42 2.68 18300 5.96
MT/MTZ32 2.75 3.58 33000 9.22 3.21 28400 8.86 2.39 20900 8.76 2.99 20100 5.85
MT/MTZ36 3 4.05 38000 9.38 3.75 32700 8.73 2.75 24500 8.91 3.34 23200 6.05
MT/MTZ40 3.5 4.63 42900 9.27 4.33 37400 8.64 3.08 27900 9.03 3.77 26400 6.11
MT/MTZ44 4 4.67 45200 9.69 4.37 43000 9.84 3.14 29800 9.51 4.18 27800 6.65
MT/MTZ50 4.5 5.18 50500 9.74 4.96 48100 9.71 3.6 34500 9.57 4.83 32500 6.73
MT/MTZ56 5 6.05 56400 9.32 5.67 54300 9.59 3.95 38000 9.62 5.44 36500 6.71
MT/MTZ64 5.5 6.8 64800 9.53 6.36 60400 9.5 4.68 45300 9.66 6.12 41500 6.78
MT/MTZ72 6 7.58 70100 9.26 7.22 67900 9.41 5.19 50000 9.63 6.91 46500 6.72
MT/MTZ80 7 8.56 80000 9.35 8.24 76900 9.33 6 56500 9.42 8.03 52500 6.54
MT/MTZ100 9 9.59 95900 10 9.9 94400 9.53 6.5 63900 9.84 8.72 60800 6.07
MT/MTZ125 10 12.81 124600 9.73 12.62 122100 9.67 7.72 78900 10.2 11.37 78400 6
MT/MTZ144 12 14.36 140700 9.8 14.47 137200 9.48 9.82 96900 9.87 13 92300 6.19
MT/MTZ160 13.5 16.09 156800 9.75 16.67 155100 9.31 10.92 107600 9.85 14.74 100300 5.93
