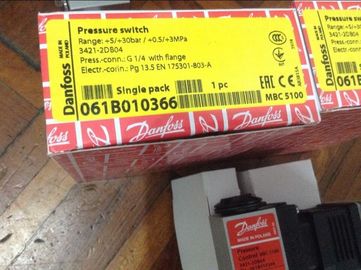

MBC 5100 061B010366 Compact Pressure Switch Block Type For Marine Applications +5/+30bar/+0.5//+3Mpa

MBC 5100 061B010366 Compact  Pressure Switch Block Type For Marine Applications +5/+30bar/+0.5//+3Mpa
MBC 5100 061B010366 Compact  Pressure Switch Block Type For Marine Applications +5/+30bar/+0.5//+3Mpa MBC 5100 061B010366 Compact  Pressure Switch Block Type For Marine Applications +5/+30bar/+0.5//+3Mpa MBC 5100 061B010366 Compact  Pressure Switch Block Type For Marine Applications +5/+30bar/+0.5//+3Mpa MBC 5100 061B010366 Compact  Pressure Switch Block Type For Marine Applications +5/+30bar/+0.5//+3Mpa

Large Image :  MBC 5100 061B010366 Compact Pressure Switch Block Type For Marine Applications +5/+30bar/+0.5//+3Mpa

Product Details:
Place of Origin: Poland
Brand Name: original
Certification: CE CCC ERC
Model Number: MBC5100 061B010366
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: discussed
Packaging Details: Carton box
Detailed Product Description
Material: Brass Range: +5/+30bar/+0.5//+3Mpa
Press.conn: G1/4 With Flange Electr.conn: Pg13.5EN 175301-803-A
Application: For Marine Pack: Single Pack
High Light:

refrigerator tools

,

danfoss expansion valve

MBC 5100 061B010366 Compact  Pressure Switch Block Type For Marine Applications
MBC pressure switches are used in marine applications where space and reliability are the most important features.
MBCs are compact pressure switches, designed according to our new block design to survive in the harsh conditions known from machine rooms onboard ships. MBCs have high vibration resistance and feature all commonly marine approvals.
The fixed, but low differential guarantees accurate monitoring of critical pressures. MBV test valves can be delivered as standard option for MBC pressure switches.
The  MBC pressure switch is for marine and hydraulic applications and approved by nine major ship authorities.

MBC 5100

•  Designed for use in severe industrial environments
•  High vibration stability
•  Part of the  block system, consisting of MBC pressure controls, MBS pressure transmitters and MBV test valves
•  MBC 5100 with all major ship approvals
•  High repeatability
•  Optimal compact design for machine building purposes
•  Intended for alarm indication, shut down, control and diagnostics in many applications - motors, gears, thrusters, pumps, filters, compressors etc.
•  Pressure ranges: -0.2 to 400 bar
•  Low differential (fixed) micro switch
•  Resistant to shock and vibrations
•  Enclosure IP65
•  Diaphragm version for applications with pulsations/pressure peaks
•  Compact design
•  Low installations costs
•  Fast and easy to operate
•  Easy to mount on block test valve
•  Available as differential pressure switch

Approvals:


ABS-American Bureau of Shipping  Pressure switch, MBC 5100


BV-Bureau Veritas  Pressure switch, MBC 5100;MBC 5100 Wärtsila


BV-Bureau Veritas  Pressure switch, MBC 5100;MBC 5100 Wärtsila


CCC-China Cumpulsory Certification  Pressure switch, MBC


CCS-China Classification Society  Pressure switch, MBC 5100
- EU Declaration  Pressure controller, MBC
- EU Declaration  Thermostat, MBC
DNV-Det Norske Veritas  Pressure switch, MBC 5100
DNV-Det Norske Veritas  Pressure switch, MBC 5100
GL-Germanischer Lloyd  Pressure switch, MBC 5100
KR-Korean Register of Shipping  Pressure switch, MBC 5100
LR-Lloyds Register of Shipping  Pressure switch, MBC 5100
NKK-Nippon Kaiji Kyokai  Pressure switch, MBC 5100
NKK-Nippon Kaiji Kyokai  Pressure switch, MBC 5100
RINA-A - Registro Italiano Navale  Pressure switch, MBC 5100
RMRS-S - Russian Maritime Register of Shipping  Pressure switch, MBC 5100
RMRS-S - Russian Maritime Register of Shipping  Pressure switch, MBC 5100





 MBC 5100 Block-type compact pressure switches for marine applications
Code no. Type Regul. range [bar] Pe Diff.@Min. range setting [bar] Diff.@Max. range setting [bar] Max. working pressure [bar] Pe Pressure conn. Pressure conn.notes El. conn. Alarm Signal
061B000066 MBC 5100 -0,20 - 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B000166 MBC 5100 5,00 - 30,00 bar 0,90 bar 2,00 bar 45,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B000266 MBC 5100 -0,20 - 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B000366 MBC 5100 5,00 - 30,00 bar 0,90 bar 2,00 bar 45,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B000466 MBC 5100 -0,20 - 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B000566 MBC 5100 -0,20 - 1,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B000766 MBC 5100 1,00 - 6,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B001066 MBC 5100 -0,20 - 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B001266 MBC 5100 -0,20 - 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 Falling
061B002166 MBC 5100 -0,20 - 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 Falling
061B002966 MBC 5100 0,50 - 3,00 bar 0,25 bar 0,30 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B006666 MBC 5100 -0,20 - 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 Falling
061B010066 MBC 5100 -0,20 - 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 - EN 175301-803-A Pg 13.5 -
061B010266 MBC 5100 -0,20 - 10,00 bar 0,40 bar 0,60 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B010366 MBC 5100 5,00 - 30,00 bar 0,90 bar 2,00 bar 45,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B010466 MBC 5100 -0,20 - 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B010566 MBC 5100 -0,20 - 1,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B010966 MBC 5100 -0,20 - 1,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 - EN 175301-803-A Pg 13.5 -
061B011066 MBC 5100 -0,20 - 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 - EN 175301-803-A Pg 13.5 -
061B012866 MBC 5100 -0,20 - 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 Falling
061B013066 MBC 5100 -0,20 - 4,00 bar 0,30 bar 0,45 bar 15,0 bar G 1/4 With flange EN 175301-803-A Pg 11 Falling
061B100066 MBC 5100 5,00 - 20,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B100166 MBC 5100 10,00 - 100,00 bar 4,00 bar 12,00 bar 150,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B100266 MBC 5100 5,00 - 20,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B100366 MBC 5100 10,00 - 100,00 bar 4,00 bar 12,00 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B100466 MBC 5100 1,00 - 10,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B100566 MBC 5100 5,00 - 40,00 bar 2,00 bar 7,00 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B100766 MBC 5100 5,00 - 40,00 bar 2,00 bar 7,00 bar 150,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B100866 MBC 5100 1,00 - 10,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B100966 MBC 5100 1,00 - 6,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B101766 MBC 5100 0,50 - 3,00 bar 0,50 bar 0,80 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B102366 MBC 5100 0,50 - 3,00 bar 0,50 bar 0,80 bar 150,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B102466 MBC 5100 5,00 - 25,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 11 -
061B102966 MBC 5100 1,00 - 6,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B110066 MBC 5100 5,00 - 20,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 - EN 175301-803-A Pg 13.5 -
061B110266 MBC 5100 5,00 - 20,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B110366 MBC 5100 10,00 - 100,00 bar 4,00 bar 12,00 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B110466 MBC 5100 1,00 - 10,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B110566 MBC 5100 5,00 - 40,00 bar 2,00 bar 7,00 bar 150,0 bar G 1/4 With flange EN 175301-803-A Pg 13.5 -
061B110766 MBC 5100 5,00 - 40,00 bar 2,00 bar 7,00 bar 150,0 bar G 1/4 - EN 175301-803-A Pg 13.5 -
061B110866 MBC 5100 1,00 - 10,00 bar 1,00 bar 2,50 bar 150,0 bar G 1/4 - EN 175301-803-A Pg 13.5 -
061B510066 MBC 5100 16,00 - 160,00 bar 15,00 bar 30,00 bar 600,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B510166 MBC 5100 25,00 - 250,00 bar 20,00 bar 40,00 bar 600,0 bar G 1/4 - EN 175301-803-A Pg 11 -
061B510266 MBC 5100 40,00 - 400,00 bar 20,00 bar 50,00 bar 600,0 bar G 1/4 - EN 175301-803-A Pg 11 -



Code number selector

Switch                                                                        SPDT
Contact load
    AC 15 10A, 250 V AC          0.5A, 250 V
                            AC 13 3A,  250 V DC         12 W, 125 V
