Product Details:
Payment & Shipping Terms:
|
| Packaging Details: | Wood Pallet | Payment Terms: | T/T |
|---|---|---|---|
| Net Weight: | 38.5 KG | Horse Power(hp): | 6HP |
| Color: | Black | Cooling(w): | 17700 |
| Input(w): | 52000 | Phase: | 3 |
| Cc/rev: | 98.1 | Electric Current: | 8.9A |
| Power Input: | 5.2KW | Refrigeration Capacity: | 17.7KW |
| High Light: | copeland ac compressor,commercial refrigeration compressor |
||

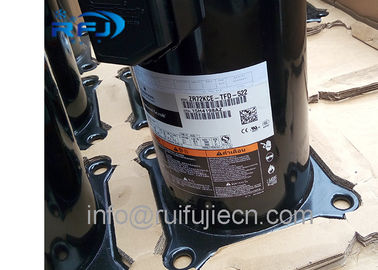

6HP SCopeland Compressor 3 Phase Home Air Conditioner Compressor Replacement ZR series ZR72KCE-TFD-522
| Item | Scroll compressor |
| Brand | Copeland |
| Model | ZR72KCE-TFD-522 |
| Refrigerant | R407C |
| COP | 3.22w/w |
| Current: | 9.10A |
| Displacement | 98.10m3/h |
| Oil charge | 1.77L |
| Noise: | 72.0dBA |
| Input Power: | 5150W |
| Package | One piece per carton or wooden case |
| Application | HVAC system, Air conditioner, refrigeration, cold storage |
Features:
1,Super efficiency
The efficiency is 12% higher than the most advanced piston type compresor in the market.
2,Crackajack reliability
less movement parts ,shaft direction and radial with copeland patent soft designe,to supply high fluid impact and abide impurity resistent.
3,Inner motor turnoff device
it can protect motor to avoid broken by high-temperature and high –current .
4,Low-noise/low-exhaust impulse
the noise is 5Db lower than piston-type compressor and more.
5,Predigest system desige
Blue-chip uninstall operate design,make single-phase compressor no need to operate capacitance/relay.
6,Nearly 100% cubage efficiency bring super heating ability.
| copeland compressors - air conDitioning (cont' D) | |||||
| hBp compressor – three phase | |||||
| Model NO. | Cooling Capacity (rating point 7.2) | nominal hp | Displ. cc/rev | nom current | Weight |
| FLa | (Kg) | ||||
| ZR22K3PFJ522 | 5240 | 1.83 | 30.7 | 9.6 | 26 |
| ZR28K3PFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR28K3EPFJ522 | 6970 | 2.33 | 39.2 | 12.9 | 27.3 |
| ZR34K3PFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR34K3EPFJ522 | 8260 | 2.83 | 46.1 | 13.6 | 29.5 |
| ZR36K3PFJ522 | 8850 | 3 | 49.5 | 16.4 | 29.5 |
| ZR40K3PFJ522 | 9620 | 3.33 | 54.19 | 17.1 | 32 |
| ZR42K3PFJ522 | 10140 | 3.5 | 56.8 | 17.1 | 30 |
| ZR47K3PFJ522 | 11500 | 3.9 | 64.1 | 19.3 | 32.6 |
| ZR68KCPFJ522 | 16800 | 5.75 | 93 | 28.2 | 43.5 |
| ZR28K3TFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR28K3ETFD522 | 6970 | 2.33 | 39.2 | 5 | 26 |
| ZR36K3TFD522 | 8850 | 3 | 49.5 | 5.7 | 29.5 |
| ZR40K3TFD522 | 9260 | 3.33 | 51.2 | 6.4 | 32 |
| ZR47KCTFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR47KCETFD522 | 11400 | 3.9 | 63.2 | 7.2 | 32.6 |
| ZR48KCTFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR48KCETFD522 | 11500 | 4.1 | 67.2 | 7.5 | 38 |
| ZR54KCTFD522 | 13000 | 4.5 | 73.2 | 8.2 | 35.5 |
| ZR57KCTFD522 | 13660 | 4.75 | 76.9 | 8.2 | 36 |
| ZR57KCETFD522 | 13660 | 4.75 | 76 | 8.2 | 36 |
| ZR61KCTFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR61KCETFD522 | 14700 | 5 | 82.4 | 10 | 35.9 |
| ZR68KCTFD522 | 16500 | 5.75 | 93 | 10 | 38.2 |
| ZR72KCTFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR72KCETFD522 | 17800 | 6 | 98 | 10 | 38.2 |
| ZR81KCTFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR81KCETFD522 | 19800 | 6.75 | 110.6 | 12 | 40 |
| ZR94KCTFD522 | 23000 | 8 | 127.2 | 16.2 | 59 |
| ZR94KCTFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR94KCETFD523 | 23200 | 8 | 127.2 | 16.2 | 58.2 |
| ZR108KCTFD522 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCETFD523 | 26670 | 9 | 147.5 | 17.3 | 64 |
| ZR108KCTFD523 | 26900 | 9 | 144.5 | 17.3 | 62.7 |
| ZR125KCTFD522 | 30660 | 10 | 171.4 | 19.2 | 64 |
| ZR125KCETFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR125KCTFD523 | 31000 | 10 | 165.6 | 19.2 | 62.7 |
| ZR144KCTFD522 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCETFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR144KCTFD523 | 34700 | 12 | 191.7 | 19.6 | 62.7 |
| ZR16M3TWD551 | 37700 | 13 | 204.3 | 25 | 103.1 |
| ZR16M3ETWD551 | 37700 | 13 | 204.3 | 17.3 | 103 |
| ZR19M3TWD551 | 45900 | 15 | 241.9 | 23.8 | 112.1 |
| ZR19M3ETWD551 | 45900 | 15 | 241.9 | 23.8 | 119 |
