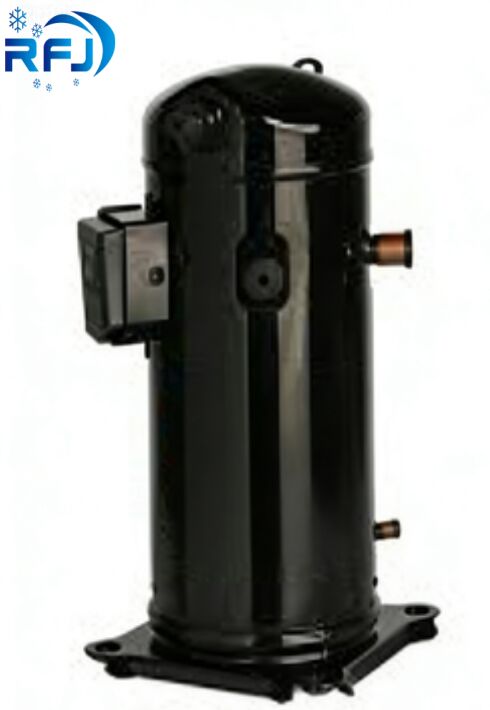

1HP ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Copeland Compressor 220v R404A

China Shenzhen Ruifujie Technology Co., Ltd. certification
China Shenzhen Ruifujie Technology Co., Ltd. certification
After visiting your office and factory on August 1 this year, we are more confident to cooperate with your company. We plan to build two or three seafood cold storage warehouses in our city at the later stage. This order will be negotiated well with your business manager.

—— Benet’s Refrigeration Ltd

We have received the Danfoss compressor purchased in July. The package is beautiful and the quality is excellent. We will cooperate with rifter in the next order.

—— Mr.Rosalind

Your company's service is warm, especially Miss Liana. We are happy to cooperate with her this time, and the quotation is fast, the products are received soon, and the quality is good. Looking forward to cooperating with your company.

—— Mr.Mike Smith

In may this year, we ordered a bizer water cooling unit in your company. After two months of installation, the customer reported that it was running well. We plan to continue to order five units in October.

—— Gunawan

In July, we purchased 5 Bitzer Compressor from your company and used it well. This time, we also want to buy a grain compressor.

—— Mrs Jane Smith

Since 2013, I have ordered 10 refrigeration parts from your company, and then ordered the whole batch of ZB series compressor.

—— Miss April

I am very happy to cooperate with your company. In particular, it is very comfortable to communicate with your Miss Liana Wu and follow-up services, I hope to continue to cooperate.

—— CHESS GLOBAL LTD

Copeland is good with reasonable price. Fast shipping time and fast response. Very grateful!!!

—— Ms. Irina

I just wanted to take a moment to commend Shenzhen RFJ Technology Co., Ltd for their exceptional products and customer service. Their compressors are high quality and have exceeded my expectations in terms of performance and durability. Also, their sales have been incredibly helpful and responsive, making the entire purchasing process a breeze.

—— Mr. Oleksandr

I'm Online Chat Now

1HP ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Copeland Compressor 220v R404A

1HP ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Copeland Compressor 220v R404A
1HP ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Copeland Compressor 220v R404A 1HP ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Copeland Compressor 220v R404A 1HP ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Copeland Compressor 220v R404A

Large Image :  1HP ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Copeland Compressor 220v R404A

Product Details:
Place of Origin: China
Brand Name: Copeland
Certification: CE,ROHS,SGS
Model Number: ZB15KQE-PFJ-558
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: discussed
Packaging Details: Wood Pallet
Delivery Time: 1 WEEK
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram
Supply Ability: 1000000PCS/Year
Detailed Product Description
Packaging Details: Wood Pallet Refrigerant: R404
Color: Black Horse Power: 1 HP
Air Volume(m3/h): 5.92 Nominal Power(hp): 2hp
N.W.: 23KG G.W: 26KG
Type: Refrigeration Compressor Application: Refrigeration Parts
Voltage: 380/420V,3ph,50hz L*W*H: 242*242*383
Certification:: CE
High Light:

copeland ac compressor

,

copeland a c compressor

1hp ZB Series ZB15KQE-PFJ-558 Refrigeration Scroll Copeland Compressor refrigeration 220v R404A

Copeland Compressor refrigeration



That is compact and pleasant looking .

Feature box type structure with hermetic compressor.

Results in no vibration and low noise .

They can be used in home,hotels, restaurants, medicines, agricutureral, chemicals industries all other place where cold storage is needed.

ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model ZB15KQ ZB15KQE ZB19KQ ZB19KQE ZB21KQ ZB21KQE ZB26KQ ZB26KQE ZB29KQ ZB29KQE ZB38KQ ZB38KQE ZB45KQ ZB45KQE ZB48KQ ZB48KQE
Motor type TFD
  PFJ PFJ PFJ PFJ PFJ
Nominal power(HP) 2 2.5 3 3.5 4 5 6 7

Displacement(m³/h) 5.9 6.8 8.6 9.9 11.4 14.5 17.2 18.8

Starting current(LRA) (Amp.)
TFD 24.5~26 30~32 36~40 41~46 50 58.6~65.5 67~74 101
PFJ 53~58 56~61 75~82 89~97 113

Rated Load Current(RLA) (Amp.)
TFD 4.30 4.30 5.70 7.10 7.90 8.90 11.50 12.1
PFJ 11.4 12.9 16.4 18.9 19.3

Max. operating current (MCC) (Amp.)
TFD 6.0 6.0 8.0 10.0 11.0 12.5 16.1 17.0
PFJ 16 18 23 24 27

Operating capacitance

(single-phase)

40μF/370V 45μF/370V 50μF/370V 60μF/370V 60μF/370V
Crankcase heater power(W) 70

Adapter outer diameter(in.)
Discharge Size 1/2 1/2 1/2 1/2 1/2 1/2 1/2 3/4
Suction Size 3/4 3/4 3/4 3/4 7/8 7/8 7/8 7/8

Dimenson(mm.)
Length(L) 242 242 243 243 242 242 242 242
Width(W) 242 242 244 244 242 242 242 242
Height(H) 383 389 412 425 430 457 457 457
Sole angles (aperture) 190X190 (8.5)

Oil Charge(L) 1.18 1.45 1.45 1.45 1.36 1.89 1.89 1.80

Weight(Kg)
Net Weight 23 25 27 28 33 38 40 40
Gross Weight 26 29 30 31 37 41 44 44



ZB Series Emerson Copeland Scroll Compressor For Air-conditioning
Model ZB66KQ ZB66KQE ZB76KQ ZB76KQE ZB88KQ ZB95KQ ZB114KQ
Motor type TFD
Nominal power(HP) 9 10 12 13 15
Displacement(m³/h) 25.7 28.8 33.2 36.4 43.4
Starting current(LRA)(Amp.)
TFD 100~111 110~118 110~118 140 174
PFJ
Rated Load Current(RLA)(Amp.)
TFD 17.3 19.2 22.1 22.1 27.1
PFJ
Max. operating current (MCC)(Amp.)
TFD 24.2 26.9 31 31 38
PFJ
Crankcase heater power(W) 90
Adapter outer diameter(in.)
Discharge Size 7/8 7/8 7/8 7/8 7/8
Suction Size 1 3/8 1 3/8 1 3/8 1 3/8 1 3/8
Dimenson(mm.)
Length(L)
Width(W) 284 284 284 285 285
Height(H) 546 546 546 552 553
Sole angles (aperture) 190X190 (8.5)
Oil Charge(L) 3.25 3.25 3.25 3.3 3.3
Weight(Kg)
Net Weight 59 62 62 62 63
Gross Weight 62 65 65 65 66



  • No

    Model Qty/Pallet Refrigerant
    1 ZB15KQ-PFJ-558-2HP/R22 16 R22
    2 ZB15KQ-TFD-558-2HP/R22 16 R22
    3 ZB21KQ-PFJ-558-3HP/R22 16 R22
    4 ZB21KQ-TFD-558-3HP/R22 16 R22
    5 ZB26KQ-PFJ-558-3.5HP/R22 16 R22
    6 ZB26KQ-TFD-558-3.5HP/R22 16 R22
    7 ZB29KQ-TFD-558-4HP/R22 16 R22
    8 ZB38KQ-TFD-558-5HP/R22 16 R22
    9 ZB45KQ-TFD-558-6HP/R22 16 R22
    10 ZB48KQ-TFD-558-7HP/R22 16 R22
    11 ZB58KQ-TFD-551-8HP/R22 12 R22
    12 ZB66KQ-TFD-551-9HP/R22 12 R22
    13 ZB76KQ-TFD-551-10HP/R22 12 R22
    14 ZB88KQ-TFD-551-12HP/R22 12 R22
    15 ZB114KQ-TFD-551-15HP/R22 12 R22
    16 ZB15KQE-PFJ-558-2HP/R404 16 R404
    17 ZB15KQE-TFD-558-2HP/R404 16 R404
    18 ZB19KQE-PFJ-558-2.5HP/R404 16 R404
    19 ZB19KQE-TFD-558-2.5HP/R404 16 R404
    20 ZB21KQE-PFJ-558-3HP 16 R404
    21 ZB21KQE-TFD-558-3HP 16 R404
    22 ZB26KQE-TFD-558-3.5HP 16 R404
    23 ZB26KQE-PFJ-558-3.5HP 16 R404
    24 ZB29KQE-TFD-558-4HP 16 R404
    25 ZB38KQE-TFD-558-5HP 16 R404
    26 ZB45KQE-TFD-558-6HP 16 R404
    27 ZB48KQE-TFD-558-7HP 16 R404
    28 ZB58KQE-TFD-551-8HP 12 R404
    29 ZB66KQE-TFD-551-9HP 12 R404
    30 ZB76KQE-TFD-551-10HP 12 R404
  • ZB series 220V/1PH/50HZ R404A copeland refrigeration compressor ZB15KQE-PFJ-558
    Brand COPELAND
    Model ZB15KQE-PFJ-558
    Production Capacity 3000 Piece/Pieces per Month
    Refrigerant R404
    Color Black
    MOQ 5
    Horse power 16hp
    Package Wooden case
    shipment within 2 weeks
    certificates VDE, TUV,UL, ROHS and CE
Model NO. Cindensate Temperature The Evaporation Temperature C (R22/50HZ)
-12 -10 -5 0 5 10
ZB15KQ 40 3300 3550 4350 5200 6250 7400
ZB19KQ 40 3650 3950 4850 5850 7000 8300
ZB21KQ 40 4650 5050 6200 7450 8850 10500
ZB26KQ 40 5100 5500 6800 8200 9850 11700
ZB29KQ 40 6230 6790 8290 9970 11800 14070
ZB38KQ 40 7300 8000 9950 12200 14650 17300
ZB45KQ 40 9400 10200 12400 14900 17800 21000
ZB48KQ 40 10390 11285 13700 16436 19574 23199
ZB58KQ 40 11800 12950 16100 19600 19574 28000
ZB66KQ 40 13950 15100 18400 22200 26500 31500
ZB76KQ 40 16400 17800 21700 28500 30500 35500
ZB88KQ 40 18800 20400 24900 30000 36000 42000
ZB95KQ 40 19500 21400 26500 32000 38200 45200
ZB114KQ 40 23200 25500 31700 38500 41600 54500
