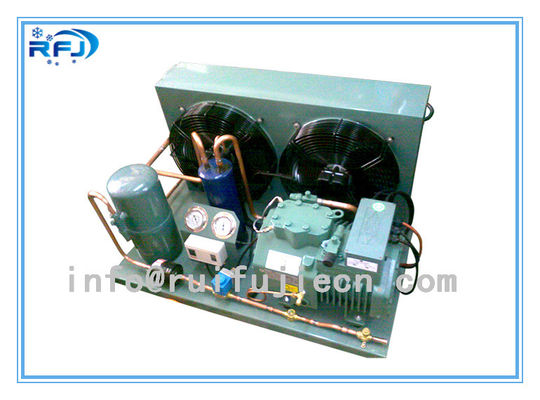

4FC-5.2Y Air Cooled Low Temp Condensing Unit Refrigeration Semi Hermetic Compressor 440V / 60HZ / 3 phase

China 4FC-5.2Y Air Cooled Low Temp Condensing Unit Refrigeration Semi Hermetic Compressor 440V / 60HZ / 3 phase supplier

Large Image :  4FC-5.2Y Air Cooled Low Temp Condensing Unit Refrigeration Semi Hermetic Compressor 440V / 60HZ / 3 phase

Product Details:

Place of Origin: China
Brand Name: Bitzer
Certification: CE SGS
Model Number: 4FC-5.2Y

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Carton box
Delivery Time: 7-10 working days after received your payment
Payment Terms: T/T or western Union
Supply Ability: 3,000pcs per month
Detailed Product Description
Product Name: Bitzer Condensing Unit Type: Semi-hermetic Condensing Unit
Horse Power: 5HP Cooling Method: Direct Cooling
Application: Cold Room Cool Type: Air-cooled
Gross Weight: 135kg Capacity: 3150W
Voltage: 380V/50Hz/3 Phase-440v/60hz/3 Phase Volume: 68cm*93cm*72cm
Liquid Line: 12mm Power: 3.34KW
Temperature: Low Temperature Suction Line: 22mm



4FC-5.2Y Air Cooled Low Temp Condensing Unit Refrigeration Semi Hermetic Compressor 440V / 60HZ / 3 phase



Voltage:380V/50HZ/3Phase,440-480V/60HZ/3PH



1. using on the cold room, fishing-boat...


2. Wide range of application


3. Original type and for low temperature


Specifications:

1.1.1 Product Description

Bitzer Compressor condensing unit is widely used for different temperature range, applicable in cold storage, chiller room, freezer room etc.

With Features:
1. Euiped with Semi-Hermetic Bitzer compressor, relianble quality;
2. Open type condensing unit, easy for installation and maintenance;
3. Cooling Type: Air-cooled;
4. Used for wide range temperature, middle and high: +5C to -5C, middle and low: -15 to -25C;
5. Copper tube and alumimum fin type heat exchanger;
6. Refrigerant R404A and R22 are both available.

1. Horse Power:3-40HP
2. Voltage:380V/50HZ/3Phase,440-480V/60HZ/3PH

3. Features:

1) High efficiency, Good reliability, Low noise, Low vibration, No leakage

2) Wide range of application

   The machine uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to the international environment protection requirement. The machine can be used at a low or high condensing temperature.

3) Excellent performance
   The compressor has a scientific structure design, strictly chosen material and precise procession and it is strictly inspected. The factory has obtained the National Compulsory Products CCC Certification, the National Industrial Products Manufacture License, and the ISO9001:2008 International Quality Supervision System Certification.

4) Accessories: all are world-famous brands, such as Danfoss filter, Danfoss  pressure controller, Emerson oil separator, Emerson gas separator, Harris high quality welding rods, and so on.

5) Reliable safety device
  The compressor is equipped with motor protector and discharge temperature monitor to prevent the overheat of the motor and the compressor and the operation beyond approved application pressure.

6) Air-cooling and water-cooling Condensing units are both available.


4. We can supply more models from 2HP to 50HP of Bitzer Air cooler
Condensing unit as below:


New model Number

Old model number

Horse power

2HES-1

2HC-1.2

1HP

2HES-2

2HC-2.2

2HP

2GES-2

2GC-2.2

2HP

2FES-2

2FC-2.2

2HP

2FES-3

2FC-3.2

3HP

2EES-2

2EC-2.2

2HP

2EES-3

2EC-3.2

3HP

2DES-2

2DC-2.2

2HP

2DES-3

2DC-3.2

3HP

2CES-3

2CC-3.2

3HP

2CES-4

2CC-4.2

4HP

4FES-3

4FC-3.2

3HP

4FES-5

4FC-5.2

5HP

4EES-4

4EC-4.2

4HP

4EES-6

4EC-6.2

6HP

4DES-5

4DC-5.2

5HP

4DES-7

4DC-7.2

7HP

4CES-6

4CC-6.2

6HP

4CES-9

4CC-9.2

9HP

4VES-7

4VCS-6.2

6HP

4VES-10

4VCS-10.2

10HP

4TES-9

4TCS-8.2

8HP

4TES-12

4TCS-12.2

12HP

4PES-12

4PCS-10.2

10HP

4PES-15

4PCS-15.2

15HP

4NES-14

4NCS-12.2

12HP

4NES-20

4NCS-20.2

20HP

4JE-15

4J-13.2*

13HP

4JE-22

4J-22.2*

22HP

4HE-18

4H-15.2*

15HP

4HE-25

4H-25.2*

25HP

4GE-23

4G-20.2*

20HP

4GE-30

4G-30.2*

30HP

6JE-25

6J-22.2*

20HP

6JE-33

6J-33.2*

33HP

6HE-28

6H-25.2*

25HP

6HE-35

6H-35.2*

35HP

6GE-34

6G-30.2*

30HP

6GE-40

6G-40.2*

40HP

6FE-44

6F-40.2*

40HP

6FE-50

6F-50.2*

50HP



Model Horse power Displacemet
(50hz)m3/h
Qty of cylinder*Diameter*Stoke(mm)
2DC-2.2 2 13.5 2*50*39.3
2DC-3.2 3 13.5 2*50*39.3
2CC-3.2 3 16.2 2*55*39.3
2CC-4.2 4 16.2 2*55*39.3
4DC-5.2 5 26.84 4*50*39.3
4DC-7.2 7 26.84 4*50*39.3
4CC-6.2 6 32.48 4*55*39.3
4CC-9.2 9 32.48 4*55*39.3
4TCS-8.2 8 41.33 4*60*42
4TCS-12.2 12 41.33 4*60*42
4PCS-10.2 10 48.5 4*65*42
4PCS-15.2 15 48.5 4*65*42
4NCS-12.2 12 56.25 4*70*42
4NCS-20.2 20 56.25 4*70*42
4H-15.2 15 73.6 4*70*55
4H-25.2 25 73.6 4*70*55
4G-20.2 20 84.5 4*75*55
4G-30.2 30 84.5 4*75*55
6H-25.2 25 110.5 6*70*55
6H-35.2 35 110.5 6*70*55
6G-30.2 30 126.8 6*75*55
6G-40.2 40 126.8 6*75*55
6F-40.2 40 151.6 6*82*55
6F-50.2 50 151.6 6*82*55
S6H-20.2 20 36.8 6*70*55
S6G-25.2 25 42.3 6*75*55
S6F-30.2 30 50.5 6*82*55



4FC-5.2Y Air Cooled Low Temp Condensing Unit Refrigeration Semi Hermetic Compressor 440V / 60HZ / 3 phase
