| Place Of Origin: | China (Mainland) | Model Number: | SPB03WL |
|---|---|---|---|
| Type: | Water Chiller | Compressor Model: | 4EES-4Y |
| Refrigerant: | R404 | Compressor: | Bizter Semi-hermetic Compresor |
| Evaporator Type: | Shell And Tube | Customized: | Yes |
| Power Supply: | 380V 3PH 50HZ | Input Power: | 3.92KW |
| Cooling Capacity: | 7.19 | Weight(kg): | 84 |
| Color: | Green | ||
| High Light: | ac condenser unit,bitzer condenser unit |
||

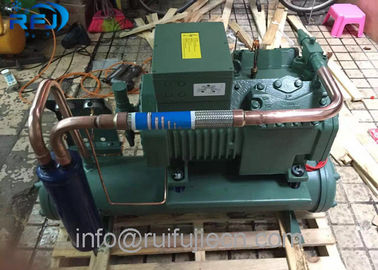

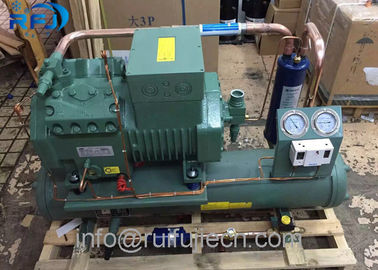

4EES-4Y Refrigeration Water Cooled Condensing Unit With R404 4EC-4.2Y
Standard Configuration
cold room condensing unit, Compressor, crankcase heater,oil pressure safety switch(except octagon compressor),shell and tube type condenser,dryer fiter,gauge panel,B5.2 refrigeration oil,shielding gas, low-temperature compressor with cooling fan,double-stage compressor with intercooler.
High quality components of world famous brands;
Effective shell and tube type condenser which enables high energy efficiency ratio;
water cooled packaged unit;
Compact structure; sturdy and durable; convenient to install;
Widely applicable and can be applied to refrigerants R22,R134a,R404a,R507a,etc.
Export packaging: according to the size of products
Carton and free-fumigation wooden pallet
Complete free-fumigation wooden case
Shipping: will be effected 25-30 days after placing an order.
| Condensing Unit model | Compressor Model | Overall Size(mm) | Installation Size(mm) | Installation bore | |||
| L(A) | W(B) | H(C) | L(D) | W(E) | |||
| SPB03WL | 2CES-3Y | 1010 | 350 | 720 | 780 | 300 | Φ18 |
| SPB04WL | 4EES-4Y | 1010 | 350 | 720 | 780 | 300 | Φ18 |
| SPB05WL | 4DES-5Y | 1080 | 350 | 760 | 850 | 300 | Φ18 |
| SPB06WL | 4CES-6Y | 1080 | 350 | 760 | 850 | 300 | Φ18 |
| SPB09WL | 4TES-9Y | 1120 | 350 | 800 | 890 | 300 | Φ18 |
| SPB12WL | 4PES-12Y | 1120 | 350 | 800 | 890 | 300 | Φ18 |
| SPB14WL | 4NES-14Y | 1220 | 400 | 850 | 890 | 350 | Φ18 |
| SPB18WL | 4HE-18Y | 1220 | 400 | 850 | 990 | 350 | Φ18 |
| SPB23WL | 4GE-23Y | 1320 | 400 | 950 | 1080 | 350 | Φ18 |
| SPB28WL | 6HE-28Y | 1620 | 400 | 950 | 1400 | 350 | Φ18 |
| SPB34WL | 6GE-34Y | 1620 | 400 | 950 | 1400 | 350 | Φ18 |
| SPB44WL | 6FE-44Y | 1900 | 400 | 1000 | 1680 | 350 | Φ18 |
1. One year warranty for the complete machine and 1 year for compressors;
2. Pre-sale service:
Customer’s operation condition analysis according to the information provided;
Equipment selection and consultation;
3. After sales service:
Compressor refrigeration condensing unit and racks designing and engineering drawing
Installation guidance and technical proposal ;
Testing of equipment in customer site, engineer available overseas;
Not only we have our own brand , but also we supply the OEM service to our customers. To satisfy with your need,we can print your company Logo or design on the units or the other parts
