AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor

Good quality Refrigeration Condensing Units for sales
Good quality Refrigeration Condensing Units for sales
After visiting your office and factory on August 1 this year, we are more confident to cooperate with your company. We plan to build two or three seafood cold storage warehouses in our city at the later stage. This order will be negotiated well with your business manager.

—— Benet’s Refrigeration Ltd

We have received the Danfoss compressor purchased in July. The package is beautiful and the quality is excellent. We will cooperate with rifter in the next order.

—— Mr.Rosalind

Your company's service is warm, especially Miss Liana. We are happy to cooperate with her this time, and the quotation is fast, the products are received soon, and the quality is good. Looking forward to cooperating with your company.

—— Mr.Mike Smith

In may this year, we ordered a bizer water cooling unit in your company. After two months of installation, the customer reported that it was running well. We plan to continue to order five units in October.

—— Gunawan

In July, we purchased 5 Bitzer Compressor from your company and used it well. This time, we also want to buy a grain compressor.

—— Mrs Jane Smith

Since 2013, I have ordered 10 refrigeration parts from your company, and then ordered the whole batch of ZB series compressor.

—— Miss April

I am very happy to cooperate with your company. In particular, it is very comfortable to communicate with your Miss Liana Wu and follow-up services, I hope to continue to cooperate.

—— CHESS GLOBAL LTD

I'm Online Chat Now

AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor

China AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor supplier
AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor supplier AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor supplier AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor supplier AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor supplier

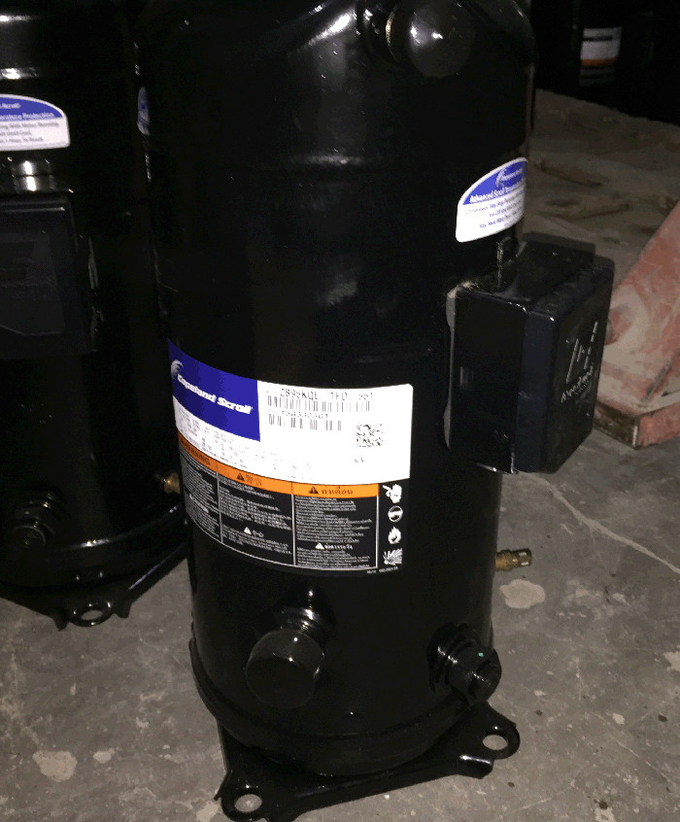

Large Image :  AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor

Product Details:

Place of Origin: China
Brand Name: Copeland
Certification: CE/SGS
Model Number: ZF09K4E-TFD-551

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: 16PCS / Pallet
Delivery Time: 7-10 working days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Piston Type: Scroll Configuration: Stationary
Power Source: AC Power Drive Mode: Electric
Temperature: Up To -40 Degree Voltage: 380V
Refrigerant: R404 G.W: 27KGS
Horsepower: 3HP Dimensions: 243*242*405mm

AC Compressor Copeland Scroll , Zf09k4e-Tfd-551 R404 Emerson Scroll Compressor

  1. copeland scroll compressor.
  2. Model number:ZF09K4E-TFD-551
  3. working R134a and R404a refrigerant.
  4. 380V.
  5. with sight glasses.
  6. up to -40 degree.


ZF Compressor Specifications:

  •  Refrigerant: R404/R22 50Hz
  •  Low Temperature
  •  2-15HP
  •  One model for multi-refrigerants R-404A, R-407A, R-134A certain models and R-22
  •  High tolerance to liquid slugging thanks to its axial and radial scroll compliance
  •  Large Operating envelope and low condensing capabilities down to 10° C
  •  Easy, efficient and reliable liquid injection with Discharge Temperature Control Valve (DTC)
  •  Availability of Copeland Scroll Digital® Technology


Description

1. The most competitive price by agency directly

2. High-quality compressor by Emerson

3. High efficiency, low noise

4. used for cold room

Please find more ZF types below and contact us for more information:


ModelZF09K4E-TFD-551ZF11K4E-TFD-551ZF15K4E-TFD-551ZF18K4E-TFD-551
Diaplacement8.049.9514.3717.06
(M3/one hour)
LRA(A)40466474
RLA(A)56.48.68.9
MCC(A)791212.5
Crank heater(W)70W70W70W70W
Discharge1/2"1/2"1/2"1/2"
Suction3/4"3/4"7/8"7/8"
Sizes(mm)
L242243241241
W242244244244
H383452490490
Oil fill(L)1.51.51.91.9
Gross weight(kgs)26314244



Model No.Nom HPDispl. cc/revevaporating temperature: °c
-40-35-25-15-50
ZF06K4E TFD55023490011341600245033003960
ZF08K4E TFD5502.541.9110014332100315042005040
ZF09K4E TFD550346.4120015002300330047005600
ZF11K4E TFD5503.557.5150018002800410058007000
ZF13K4E TFD551467.8170021003200480069008200
ZF15K4E TFD551583.32100260039005800830010000
ZF18K4E TFD551698.82503100480069001000012000
ZF24K4ETWD5517.51263060380058085001230014700
ZF33K4ETWD55110166435053008200122001750020800
ZF40K4ETWD551132045200640010000148002130025500
ZF48K4ETWD551152446000740011400169002450029300

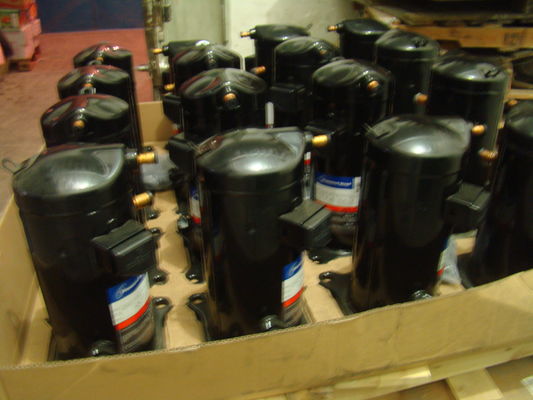

AC Copeland Scroll Compressor ZF09K4E-TFD-551 R404 3HP 380V R404 Emerson Scroll Compressor
1.The use of compressors for HFCs,R404A,R507,R407C,R134A or R22 leads to a number of specific
issues regarding their application and operational behaviour. There are briefly reviewed in the following pages. Further information on these refrigerants is available from suppliers.

2.Because of the different vapour-pressure characteristics of R404A compared with R502 and R134a
Compared with R134a,particular attention must be paid to the vapour pressures resulting from the ambient temperature(especially at standstill). The limits permitted for the compressor and other system components must not be exceeded.
