| Model Number: | ZF09K4E-TFD-551 |
| MOQ: | 1pcs |
| Price: | discussed |
| Delivery Time: | 7-10 working days after receiving payment |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
ZF Compressor Specifications:
Description
1. The most competitive price by agency directly

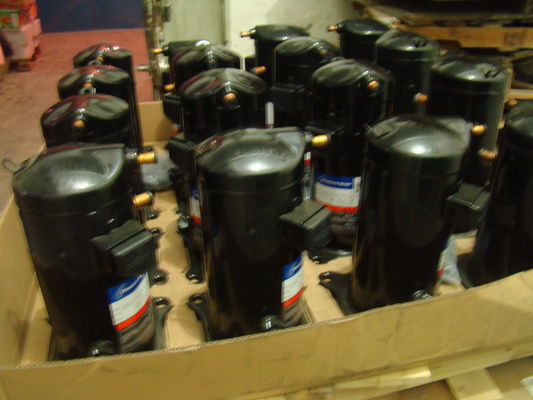

2. High-quality compressor by Emerson
3. High efficiency, low noise
4. used for cold room
Please find more ZF types below and contact us for more information:
| Model | ZF09K4E-TFD-551 | ZF11K4E-TFD-551 | ZF15K4E-TFD-551 | ZF18K4E-TFD-551 |
| Diaplacement | 8.04 | 9.95 | 14.37 | 17.06 |
| (M3/one hour) | ||||
| LRA(A) | 40 | 46 | 64 | 74 |
| RLA(A) | 5 | 6.4 | 8.6 | 8.9 |
| MCC(A) | 7 | 9 | 12 | 12.5 |
| Crank heater(W) | 70W | 70W | 70W | 70W |
| Discharge | 1/2" | 1/2" | 1/2" | 1/2" |
| Suction | 3/4" | 3/4" | 7/8" | 7/8" |
| Sizes(mm) | ||||
| L | 242 | 243 | 241 | 241 |
| W | 242 | 244 | 244 | 244 |
| H | 383 | 452 | 490 | 490 |
| Oil fill(L) | 1.5 | 1.5 | 1.9 | 1.9 |
| Gross weight(kgs) | 26 | 31 | 42 | 44 |
| Model No. | Nom HP | Displ. cc/rev | evaporating temperature: °c | |||||
| -40 | -35 | -25 | -15 | -5 | 0 | |||
| ZF06K4E TFD550 | 2 | 34 | 900 | 1134 | 1600 | 2450 | 3300 | 3960 |
| ZF08K4E TFD550 | 2.5 | 41.9 | 1100 | 1433 | 2100 | 3150 | 4200 | 5040 |
| ZF09K4E TFD550 | 3 | 46.4 | 1200 | 1500 | 2300 | 3300 | 4700 | 5600 |
| ZF11K4E TFD550 | 3.5 | 57.5 | 1500 | 1800 | 2800 | 4100 | 5800 | 7000 |
| ZF13K4E TFD551 | 4 | 67.8 | 1700 | 2100 | 3200 | 4800 | 6900 | 8200 |
| ZF15K4E TFD551 | 5 | 83.3 | 2100 | 2600 | 3900 | 5800 | 8300 | 10000 |
| ZF18K4E TFD551 | 6 | 98.8 | 250 | 3100 | 4800 | 6900 | 10000 | 12000 |
| ZF24K4ETWD551 | 7.5 | 126 | 3060 | 3800 | 580 | 8500 | 12300 | 14700 |
| ZF33K4ETWD551 | 10 | 166 | 4350 | 5300 | 8200 | 12200 | 17500 | 20800 |
| ZF40K4ETWD551 | 13 | 204 | 5200 | 6400 | 10000 | 14800 | 21300 | 25500 |
| ZF48K4ETWD551 | 15 | 244 | 6000 | 7400 | 11400 | 16900 | 24500 | 29300 |
1.The use of compressors for HFCs,R404A,R507,R407C,R134A or R22 leads to a number of specific
issues regarding their application and operational behaviour. There are briefly reviewed in the following pages. Further information on these refrigerants is available from suppliers.
2.Because of the different vapour-pressure characteristics of R404A compared with R502 and R134a
Compared with R134a,particular attention must be paid to the vapour pressures resulting from the ambient temperature(especially at standstill). The limits permitted for the compressor and other system components must not be exceeded.
|
|
