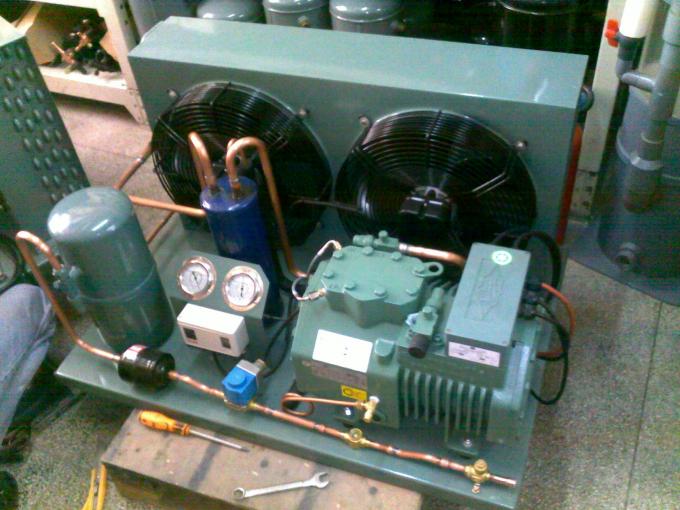

Unit Kondensasi 15HP Bitzer 4PCS-15,2 380V / 50HZ / 3Phase, 440-480V / 60HZ / 3PH
ac condenser unit
,bitzer condenser unit
Unit kondensator Kompresor Bitzer banyak digunakan untuk berbagai rentang suhu, berlaku pada cold storage, chiller room, freezer room dll.
Deskripsi:
1. Model: 4PCS-15.2
2.Horse Power: 15HP
3. Tegangan: 380V / 50HZ / 3Phase, 440-480V / 60HZ / 3PH
4.Kapasitas: 27700W
5. Ketik: unit kondensasi semi-hermetik
6. menggunakan: ruang dingin, perahu nelayan ... dll.
Kami dapat menyediakan lebih banyak model dari 2HP sampai 50HP pendingin udara Bitzer
Unit kondensasi seperti di bawah ini:
Nomor model baru | Nomor model lama | Kekuatan kuda |
2HES-1 | 2HC-1.2 | 1HP |
2HES-2 | 2HC-2.2 | 2HP |
2GES-2 | 2GC-2.2 | 2HP |
2FES-2 | 2FC-2.2 | 2HP |
2FES-3 | 2FC-3.2 | 3HP |
2EES-2 | 2EC-2.2 | 2HP |
2EES-3 | 2EC-3.2 | 3HP |
2DES-2 | 2DC-2.2 | 2HP |
2DES-3 | 2DC-3.2 | 3HP |
2CES-3 | 2CC-3.2 | 3HP |
2CES-4 | 2CC-4.2 | 4HP |
4FES-3 | 4FC-3.2 | 3HP |
4FES-5 | 4FC-5.2 | 5HP |
4EES-4 | 4EC-4.2 | 4HP |
4EES-6 | 4EC-6.2 | 6HP |
4DES-5 | 4DC-5.2 | 5HP |
4DES-7 | 4DC-7.2 | 7HP |
4CES-6 | 4CC-6.2 | 6HP |
4CES-9 | 4CC-9.2 | 9HP |
4VES-7 | 4VCS-6.2 | 6HP |
4VES-10 | 4VCS-10.2 | 10HP |
4TES-9 | 4TCS-8.2 | 8HP |
4TES-12 | 4TCS-12.2 | 12HP |
4PES-12 | 4PCS-10.2 | 10HP |
4PES-15 | 4PCS-15.2 | 15HP |
4NES-14 | 4NCS-12.2 | 12HP |
4NES-20 | 4NCS-20.2 | 20HP |
4JE-15 | 4J-13.2 * | 13HP |
4JE-22 | 4J-22.2 * | 22HP |
4HE-18 | 4H-15.2 * | 15HP |
4HE-25 | 4H-25.2 * | 25HP |
4GE-23 | 4G-20.2 * | 20HP |
4GE-30 | 4G-30,2 * | 30HP |
6JE-25 | 6J-22.2 * | 20HP |
6JE-33 | 6J-33.2 * | 33HP |
6HE-28 | 6H-25.2 * | 25HP |
6HE-35 | 6H-35.2 * | 35HP |
6GE-34 | 6G-30.2 * | 30HP |
6GE-40 | 6G-40.2 * | 40HP |
6FE-44 | 6F-40.2 * | 40HP |
6FE-50 | 6F-50.2 * | 50HP |
| Model | Kekuatan kuda | Displacemet (50hz) m3 / h | Qty silinder * Diameter * Stoke (mm) |
| 2DC-2.2 | 2 | 13.5 | 2 * 50 * 39.3 |
| 2DC-3.2 | 3 | 13.5 | 2 * 50 * 39.3 |
| 2CC-3.2 | 3 | 16.2 | 2 * 55 * 39.3 |
| 2CC-4.2 | 4 | 16.2 | 2 * 55 * 39.3 |
| 4DC-5.2 | 5 | 26.84 | 4 * 50 * 39.3 |
| 4DC-7.2 | 7 | 26.84 | 4 * 50 * 39.3 |
| 4CC-6.2 | 6 | 32.48 | 4 * 55 * 39.3 |
| 4CC-9.2 | 9 | 32.48 | 4 * 55 * 39.3 |
| 4TCS-8.2 | 8 | 41.33 | 4 * 60 * 42 |
| 4TCS-12.2 | 12 | 41.33 | 4 * 60 * 42 |
| 4PCS-10.2 | 10 | 48.5 | 4 * 65 * 42 |
| 4PCS-15.2 | 15 | 48.5 | 4 * 65 * 42 |
| 4NCS-12.2 | 12 | 56.25 | 4 * 70 * 42 |
| 4NCS-20.2 | 20 | 56.25 | 4 * 70 * 42 |
| 4H-15.2 | 15 | 73.6 | 4 * 70 * 55 |
| 4H-25.2 | 25 | 73.6 | 4 * 70 * 55 |
| 4G-20.2 | 20 | 84.5 | 4 * 75 * 55 |
| 4G-30,2 | 30 | 84.5 | 4 * 75 * 55 |
| 6H-25.2 | 25 | 110.5 | 6 * 70 * 55 |
| 6H-35.2 | 35 | 110.5 | 6 * 70 * 55 |
| 6G-30.2 | 30 | 126.8 | 6 * 75 * 55 |
| 6G-40.2 | 40 | 126.8 | 6 * 75 * 55 |
| 6F-40.2 | 40 | 151.6 | 6 * 82 * 55 |
| 6F-50.2 | 50 | 151.6 | 6 * 82 * 55 |
| S6H-20.2 | 20 | 36.8 | 6 * 70 * 55 |
| S6G-25,2 | 25 | 42.3 | 6 * 75 * 55 |
| S6F-30.2 | 30 | 50,5 | 6 * 82 * 55 |
