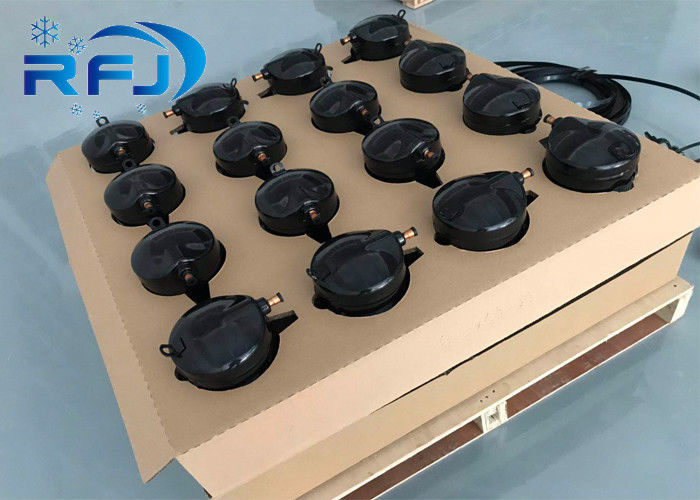

ZB21KQE-PFJ-588 R134a 2 Ton Single Phase Compressor
R134a Refrigeration Scroll Compressor
,Zb21kqe-Pfj
- Product Type: Scroll Compressor
- Model: ZB21KQE-PFJ-588
- Origin: China (Mainland)
- Certifications: CE, UL, ROHS
| Brand | |
| Model | ZB21KQE-PFJ-588 |
| Horse Power | 3 HP |
| Refrigerant | R404A / R407C / R134A |
| Power Source | 220V / 1 Phase |
| Weight | 27 kg |
| Manufacturing Year | 2020 |
| Packing | Wooden Case |
| Connection | Rotolock |
| Color | Black |
| MOQ | 1 Unit |
| Model | ZB15KQ | ZB19KQ | ZB21KQ | ZB26KQ | ZB30KQ |
|---|---|---|---|---|---|
| Model Variant | ZB15KQE | ZB19KQE | ZB21KQE | ZB26KQE | ZB30KQE |
| Model Type | TFD | TFD | TFD | TFD | TFD |
| Horse Power (HP) | 2 | 2.5 | 3 | 3.5 | 4 |
| Displacement (m³/h) | 5.92 | 6.8 | 8.6 | 9.9 | 11.68 |
| RLA(A) TFD | 4.3 | 4.3 | 5.7 | 7.1 | 7.4 |
| RLA(A) PFJ | 11.4 | 12.9 | 16.4 | 18.9 | |
| Running Capacitor | 40/370 | 45/370 | 50/370 | 60/370 | |
| Crankcase Heater Power (W) | 70 | 70 | 70 | 70 | 70 |
| Exhaust Pipe Diameter (") | 1/2 | 1/2 | 1/2 | 1/2 | 1/2 |
| Inspiratory Tube Diameter (") | 3/4 | 3/4 | 3/4 | 3/4 | 3/4 |
| Height (mm) | 383 | 389 | 412 | 425 | 457 |
| Installing Size (mm) | 190×190 (8.5) | 190×190 (8.5) | 190×190 (8.5) | 190×190 (8.5) | 190×190 (8.5) |
| Oil (L) (4GS) | 1.18 | 1.45 | 1.45 | 1.45 | 1.89 |
| Net Weight (kg) | 23 | 25 | 27 | 28 | 37 |
| Product Name | Scroll Compressor |
| Model | ZB21KQE-PFJ-558 |
| Color | Black |
| Voltage | 220/240V |
| Frequency | 50Hz |
| Capacity | 18300 |
| Refrigerant | R404A |
| Horse Power | 3HP |
