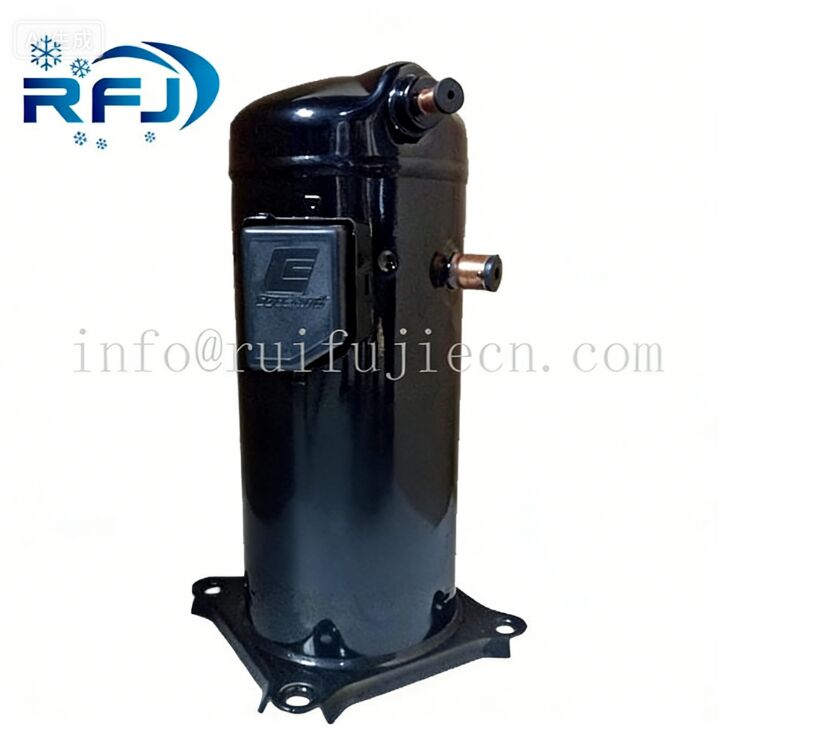

3.5HP ZB26KQE-PFJ-524 Air Conditioner Compressor
ZB26KQE-PFJ
,3.5HP Hermetic Compressor
ZB Series Scroll Compressor - All available models: ZB15KQ, ZB15KQE, ZB19KQ, ZB19KQE, ZB21KQ, ZB21KQE, ZB26KQ, ZB26KQE, ZB29KQ, ZB29KQE, ZB38KQ, ZB38KQE, ZB45KQ, ZB45KQE, ZB48KQ, ZB48KQE, ZB58KQ, ZB58KQE, ZB66KQ, ZB66KQE, ZB76KQ, ZB76KQE, ZB88KQ, ZB95KQ, ZB95KQE, ZB114KQ, ZB114KQE, ZB130KQ, ZB130KQE, ZB150KQ, ZB150KQE, ZB190KQ, ZB190KQE, ZB220KQ, ZB220KQE
- Type: Hermetic Scroll Compressors
- Series: ZB
| Model | ZB26KQE-PFJ-524 |
|---|---|
| Nominal Capacity | 5700 |
| Oil Charge [L] | 1.48 |
| Air Volume (m³/hr) | 9.90 |
| Place of Origin | Thailand |
| Type | Med/High Temperature |
| Packing | Wooden Case |
| MOQ | 1 |
| Net Weight (kg) | 28 |
- 220V, 50Hz operation
- Compatible with R404a refrigerant gas
All the following models are available for supply:
| Model | Horse Power | Refrigerant | Voltage | Displacement (cm³) |
|---|---|---|---|---|
| ZB15KQ-PFJ-558 | 2 | R22 | 220v/50hz | 5.92 |
| ZB15KQE-PFJ-558 | 2 | R404a | 220v/50hz | 5.92 |
| ZB19KQ-PFJ-558 | 3 | R22 | 220v/50hz | 6.8 |
| ZB19KQE-PFJ-558 | 3 | R404a | 220v/50hz | 6.8 |
| ZB21KQ-TFD-558 | 3 | R22 | 380V/50HZ | 8.6 |
| ZB21KQE-TFD-558 | 3 | R404a | 380V/50HZ | 8.6 |
| ZB26KQ-PFJ-558 | 4 | R22 | 220v/50hz | 9.9 |
| ZB26KQE-PFJ-558 | 4 | R404a | 220v/50hz | 9.9 |
| ZB38KQ-TFD-558 | 5 | R22 | 380V/50HZ | 14.5 |
| ZB38KQE-TFD-558 | 5 | R404a | 380V/50HZ | 14.5 |
| ZB45KQ-TFD-558 | 6 | R22 | 380V/50HZ | 17.2 |
| ZB45KQE-TFD-558 | 6 | R404a | 380V/50HZ | 17.2 |
| ZB58KQ-TFD-551 | 8 | R22 | 380V/50HZ | 22.1 |
| ZB58KQE-TFD-551 | 8 | R404a | 380V/50HZ | 22.1 |
| ZB76KQ-TFD-551 | 10 | R22 | 380V/50HZ | 28.8 |
| ZB76KQE-TFD-551 | 10 | R404a | 380V/50HZ | 28.8 |
| ZB95KQ-TFD-551 | 13 | R22 | 380V/50HZ | 36.4 |
| ZB114KQ-TFD-551 | 15 | R22 | 380V/50HZ | 43.4 |
We supply the following compressor brands:
- Rotary Compressors: LG, Landa (Gree), Toshiba, GMCC
- Scroll Compressors: Danfoss Performer, Hitachi, Daikin, Sanyo
- Piston Compressors: Maneurop MT, NTZ, MTZ series
- Freezer Compressors: Tecumseh, Ampera, Embraco, Wanbao, LG, Samsung
- Semi-Hermetic Compressors: Available upon request
