| Brand Name: | copeland |
| Model Number: | ZF11KQE-TFD-551 |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 1-5DAYS |
| Payment Terms: | T/T, D/A |

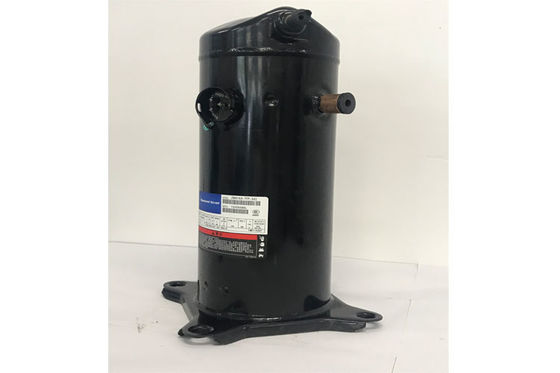

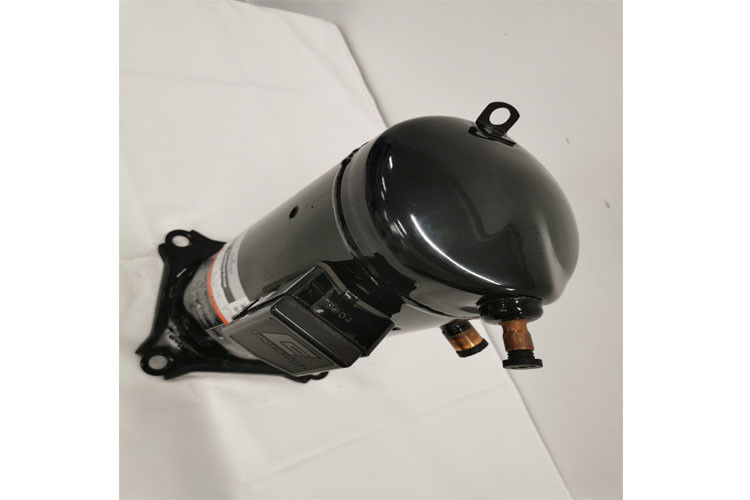

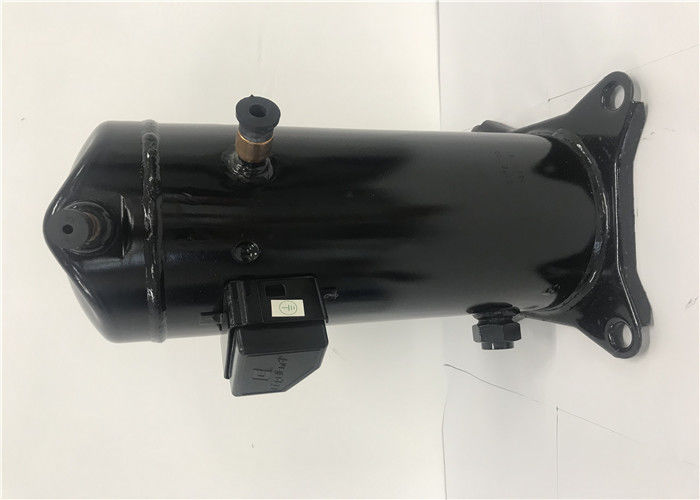

Product Description
Emerson Climate Technologies developed the ZF range to provide the best performance in low temperature. The range has a wide application envelope as it can operate from -40°C evaporating temperature to +7°C. They have been optimized in their scroll compliance mechanism, these scroll compressors feature particularly high tolerance to liquid slugging.
· Wide operating envelope with 10 C low condensing temperature to minimize energy consumption.
· One model to multiple refrigerants
· Lightweight and compactness, more than half the weight of the equivalent semi-hermetic compressor.
· Optional sound shell allowing 10 dB A sound attenuation
Product Range:-
| Model No. | Electrical Supply Volts / Phase | Displacement m³/hr | R404A Capacity Watts @ -25°C SST | Connection Type | Connection Size: inches | Replacement Oil Charge: Ltrs | Amps | Winding Resistance Ohm | Weight: kg | ||
| Suction | Discharge | Rated Load Amps | Locked Rotor Amps | ||||||||
| ZF09K4E-TFD-551 | 415/3 | 8 | 2950 | Rotalock | 1 1/4 | 1 | 1.1 | 6 | 40 | 4.83 | 30 |
| ZF11K4E-TFD-551 | 415/3 | 9.9 | 3700 | Rotalock | 1 1/4 | 1 | 1.1 | 7 | 46 | 4.03 | 31 |
| ZF13K4E-TFD-551 | 415/3 | 11.8 | 4300 | Rotalock | 1 1/4 | 1 | 1.4 | 8 | 51.5 | 3.64 | 41 |
| ZF15K4E-TFD-551 | 415/3 | 14.5 | 5250 | Rotalock | 1 1/4 | 1 | 1.7 | 10 | 64 | 2.75 | 42 |
| ZF18K4E-TFD-551 | 415/3 | 17.2 | 6400 | Rotalock | 1 1/4 | 1 | 1.7 | 12 | 74 | 2.27 | 44 |
| ZF24K4E-TWD-551 | 415/3 | 20.9 | 7900 | Rotalock | 1 3/4 | 11/4 | 4 | 16.1 | 99 | 1.41 | 100 |
| ZF33K4E-TWD-551 | 415/3 | 28.9 | 11000 | Rotalock | 1 3/4 | 11/4 | 4 | 22.3 | 127 | 1.02 | 100 |
| ZF40K4E-TWD-551 | 415/3 | 35.6 | 13500 | Rotalock | 1 3/4 | 11/4 | 4.1 | 25.1 | 167 | 0.83 | 110 |
| ZF48K4E-TWD-551 | 415/3 | 42.1 | 15600 | Rotalock | 2 1/4 | 13/4 | 1.66 | 3 | |||
