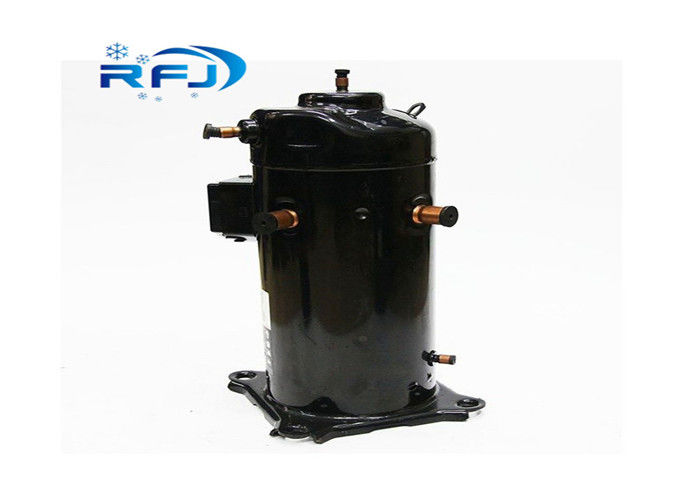

ZF13KQE-TFD-550 1.1Amps 4HP Scroll Compressor
4HP Scroll Compressor
,1.1Amps Scroll Compressor
,ZF13KQE-TFD
- Compact and sophisticated design
- Fully assembled and ready for installation to reduce assembly and applied costs
- Wide operating range with low temperature capability from -40℃ to -20℃ evaporating temperature
- Designed for low temperature cold room applications
- Reduces inventory requirements for distributors and contractors
- Best-in-class scroll compressor efficiency and reliability
- Up to 30% annual electrical savings from COP improvement compared to reciprocating systems
- 70% fewer moving parts than reciprocating compressors
- Superior liquid handling capability
- Includes liquid injection control
- Compatible with R404a and R407F refrigerants
| Model No. | Electrical Supply Volts / Phase | Displacement m³/hr | R404A Capacity Watts @ -25°C SST | Connection Type | Connection Size: inches | Replacement Oil Charge: Ltrs | Amps | Winding Resistance Ohm | Weight: kg |
|---|---|---|---|---|---|---|---|---|---|
| ZF09K4E-TFD-551 | 415/3 | 8 | 2950 | Rotalock | 1 1/4 | 1 | 1.1 | 6 | 40 |
| ZF11K4E-TFD-551 | 415/3 | 9.9 | 3700 | Rotalock | 1 1/4 | 1 | 1.1 | 7 | 46 |
| ZF13K4E-TFD-551 | 415/3 | 11.8 | 4300 | Rotalock | 1 1/4 | 1 | 1.4 | 8 | 51.5 |
| ZF15K4E-TFD-551 | 415/3 | 14.5 | 5250 | Rotalock | 1 1/4 | 1 | 1.7 | 10 | 64 |
| ZF18K4E-TFD-551 | 415/3 | 17.2 | 6400 | Rotalock | 1 1/4 | 1 | 1.7 | 12 | 74 |
| ZF24K4E-TWD-551 | 415/3 | 20.9 | 7900 | Rotalock | 1 3/4 | 11/4 | 4 | 16.1 | 99 |
| ZF33K4E-TWD-551 | 415/3 | 28.9 | 11000 | Rotalock | 1 3/4 | 11/4 | 4 | 22.3 | 127 |
| ZF40K4E-TWD-551 | 415/3 | 35.6 | 13500 | Rotalock | 1 3/4 | 11/4 | 4.1 | 25.1 | 167 |
| ZF48K4E-TWD-551 | 415/3 | 42.1 | 15600 | Rotalock | 2 1/4 | 13/4 | 1.66 | 3 | - |
ZPD Series Scroll Compressor ZPD67KCE-TF5-522
Digital Compressor ZPD61KCE-TFD-522 for Air Conditioning Product description: Scroll™ compressors are designed to deliver the highest performance in residential and commercial applications. Thanks to the widest selection of scroll compressors optimized for air conditioning and heating, it has never ...
13.2KW 5HP Ac Compressor ZPD61KCE-TFD-522
Digital Compressor ZPD61KCE-TFD-522 for Air Conditioning Product description: Scroll Digital compressor increases HVAC system efficiency via capacity modulation and provide energy savings by precisely matching compressor output to your heating or cooling needs. This technology is perfect for ...
12.2A 7HP Air Conditioning Compressor ZPD83KCE-TFD-250
Air Conditioning Digital Compressor ZPD83KCE-TFD-250 for 7 Ton Technical data: Nominal motor power [HP]: 7 Displacement [m³/h]: 13.4 Net Weight [kg]: 45 Gross weight [kg]: 48 Oil charge [dm³]: 1.8 Electrical data: Power supply [V/~/Hz]: 380-420V/3/50Hz Locked rotor current [A]: 74 Max. operating ...
5.5HP Hermetic Digital Compressor ZRD68KC-TFD-433 For Refrigeration
1PH R22 200V Digital Compressor ZRD68KC-TFD-433 for HVAC Description: Scroll Digital ZRDKC Quantum compressor increases HVAC system efficiency via capacity modulation and provide energy savings by precisely matching compressor output to your heating or cooling needs.With the broadest product line ...
