ZR28K3-PFJ-522 1HP Copeland Refrigeration Compressors Scroll Type Compressor

Name: ZR28K3-PFJ-522 1HP Copeland Refrigeration Compressors Scroll Type Compressor
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: ZR28K3-PFJ-522
Price: 108.00 USD
Availability: InStock

Brand Name:	Copeland
Model Number:	ZR28K3-PFJ-522
MOQ:	1
Price:	1-215usd/pc
Delivery Time:	3-7 days
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, UL

Power Source:

AC Power

Voltage::

380V/50Hz /3p

Certification::

CE,CCC,UL,ISO,RoHs

Refrigerant::

R407c/R134a/R22

Color::

Black

Type::

Scroll

Model:

ZR28K3-PFJ-522

Packing::

Wooden Case

Nominal Power:

1HP

Packaging Details:

wooden case

Supply Ability:

1000

Highlight:

copeland a c compressor

commercial refrigeration compressor

Product Description

ZR28K3-PFJ-522 1HP Copeland Refrigeration Compressors Scroll Type Compressor

Product Description

	Copeland Scroll Compressor
Feature:	1.)The Copeland Scroll Digital compressor increases HVAC system efficiency and provides more energy savings by precisely matching compressor output to your heating or cooling needs.
	2.)Copeland Scroll Digital is perfect for buildings or rooms which experience widely varying loads or where tight temperature and humidity control are needed.
	3.)Copeland Scroll Digital compressors are available from 3–15 HP and can be applied in configurations using multiple compressors offering capacity ranges from 10–30 HP.
	4.)Precise, infinite capacity modulation from 10%–100%
	5.)Simple, variable modulation, for temperature control within 0.5°F
	6.)Lower operating cost
	7.) Reduced power consumption—up to 30% more efficient than using hot-gas bypass
	8.) Longer cycle times to reduce wear and improve humidity control

Copeland Compressor ZR Series's specification is below:

Model	Specs
ZR22K3E-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 17500/20800 EER (Btu/Wh): 10.5/9.8 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 12300/14800 EER (Btu/Wh): 10/10
ZR28K3E-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 22700/27300 EER (Btu/Wh): 10.6/10.8 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 16200/19800 EER (Btu/Wh): 10.3/10.3
ZR40K3E-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 31700/38300 EER (Btu/Wh): 10.7/11 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 22100/26900 EER (Btu/Wh): 10.6/10.4
ZR28K3-PFJ-522	Refrigerant: R22 Electrical source: Ph1 50HZ 220-240V/60HZ 265V Capacity (Btu/hr): 23600/28500 EER (Btu/Wh): 10.8/10.9
ZR47KC-TFD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 380-460V Capacity (Btu/hr): 39400/47500 EER (Btu/Wh): 11.5/11.5
ZR57KC-TFD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 47500/57500 EER (Btu/Wh): 11.4/11.5
ZR61KC-TFD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 49700/62000 EER (Btu/Wh): 11.2/11.5
ZR160KCE-TFD-425	Refrigerant: R407C Electrical source: Ph3 50Hz 380-420V/60HZ 460V Capacity (Btu/hr): 128000/154000 EER (Btu/Wh): 11.2/11.2 Refrigerant: R134A Electrical source: Ph3 50Hz 380-420V/60HZ 460V Capacity (Btu/hr): 87000/105000 EER (Btu/Wh): 11.5/11.1
ZR144KCE-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 118000/142000 EER (Btu/Wh): 11.6/11.6 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 79500/96400 EER (Btu/Wh): 11.5/11.35
ZR81KCE-TFD-522	Refrigerant: R407C Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 63500/77000 EER (Btu/Wh): 10.8/10.8 Refrigerant: R134A Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 45400/55000 EER (Btu/Wh): 11.3/11.1 Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 68000/82000 EER (Btu/Wh): 11.7/11.8
ZR19M3-TWD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 157000/190000 EER (Btu/Wh): 11.5/11.5
ZR47K3-TFD-522	Refrigerant: R22 Electrical source: Ph3 50HZ 380-420V/60HZ 460V Capacity (Btu/hr): 38800/47500 EER (Btu/Wh): 11.3/11.4

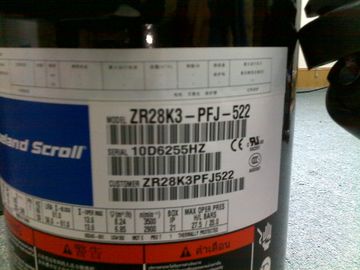

ZR28K3-PFJ-522 1HP Copeland Refrigeration Compressors Scroll Type Compressor 0

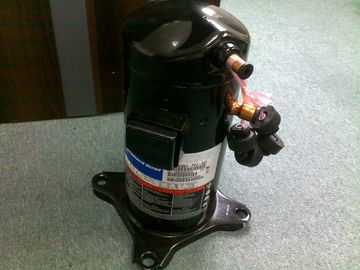

ZR28K3-PFJ-522 1HP Copeland Refrigeration Compressors Scroll Type Compressor 2

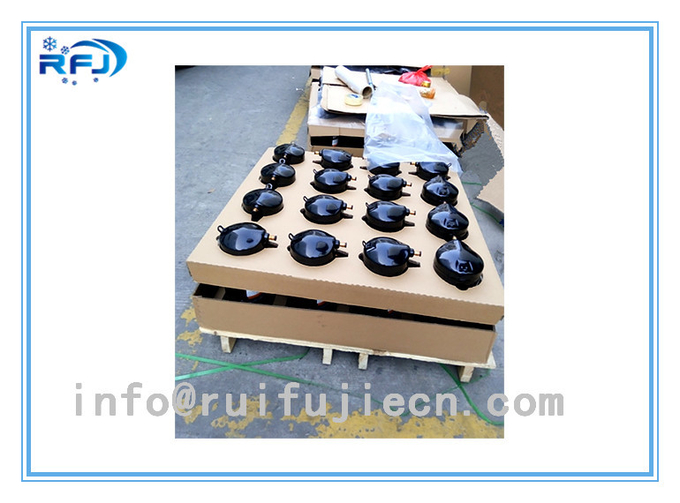

ZR28K3-PFJ-522 1HP Copeland Refrigeration Compressors Scroll Type Compressor 3
