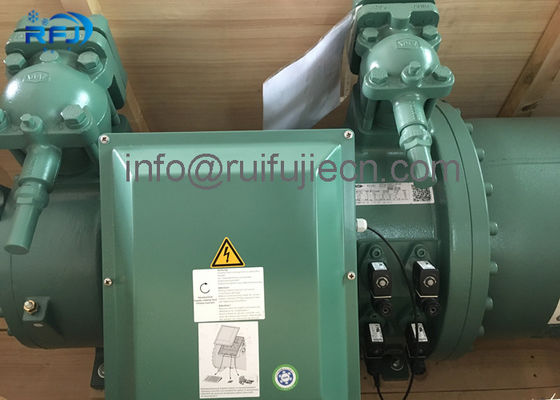

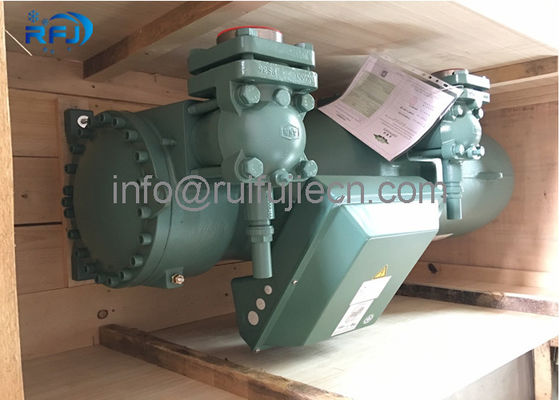

CSH7553-50Y-40P 50hp Piston Compressor Service High Efficiency Low noise
semi hermetic reciprocating compressor
,air cooled condensing unit
- High efficiency, Good reliability, Low noise, Low vibration, No leakage
- Wide range of application
- Excellent performance
The compressor uses R22 as refrigerant. R134a, R404a, R407b and R407c are also approved. R12 and R502 are not suggested due to international environment protection requirements. The machine can be used at low or high condensing temperatures.
The compressor features scientific structure design, strictly chosen materials, precise processing, and rigorous inspection. The factory has obtained National Compulsory Products CCC Certification, National Industrial Products Manufacture License, and ISO9001:2008 International Quality Supervision System Certification.
| Compressor Type | Motor Version | Displacement 50/60Hz | Refrigerating Capacity Qo | Oil Charge | Motor Connection | Max Operating Current | Max Power Consumption |
|---|---|---|---|---|---|---|---|
| CSH7553-50Y | 2 | 197/238 | 106700 W | 15 dm³ | 400V(±10%)∆/∆∆-3-50Hz 460V(±10%)∆/∆∆-3-60Hz Part Winding |
79 A | 52 KW |
| CSH7553-70(Y) | 1 | 197/238 | 108400 W | 15 dm³ | 400V(±10%)∆-3-50Hz 460V(±10%)∆-3-60Hz Y/∆ |
128 A | 78 KW |
