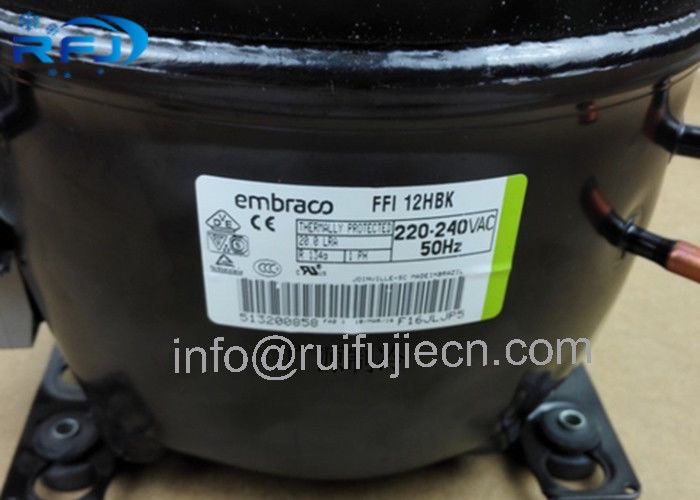

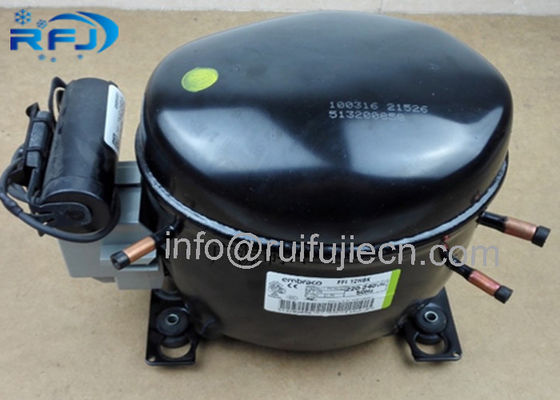

1/3HP Embraco Aspera Compressor FFI 12HBK
refrigerant compressor
,embraco refrigeration compressors
1/3HP Embraco Aspera Compressor FFI 12HBK , Refrigeration compressor embraco r134A
| Shape | Material | Diameter (mm) | |
| Suction Connector | Straight | Copper | 6,50 |
| Discharge Connector | Straight | Copper | 4,94 |
| Process Connector | Straight | Copper | 6,50 |
| Oil Cooler: | |
| Base Plate: | Universal EG/F/AMEM version 2 |
| Tray Holder: | No |
| Weight (kg): | 7,61 |
Application
| Maximum ambient temperature (ºC): | 32 |
| Expansion device: | Capillary |
| Cooling: | Fan Cooling |
| Air flow rate: |
Mechanical Data
| Bill of materials: | 513307025 |
| Starting torque: | Low Starting Torque |
| Bore (mm): | 21,00 |
| Stroke (mm): | 8,00 |
| Weight (kg): | 7,61 |
Electrical Data
| Motor type: | RSIR-CSIR |
| Winding Resistance (25ºC) - Start: | 28,20 |
| Winding Resistance (25ºC) - Run: | 10,70 |
| Embraco(Aspera) Compressor | |
| Refrigerant R22 Low Back Pressure | |
| Item | Horse Power |
| NE2134E | 9/16HP |
| T2140E | 3/4HP |
| T2155E | 1HP |
| T2168E | 1.25HP |
| NJ2190E | 1.5HP |
| Refrigerant R22 High/Medium Back Pressure | |
| NB6152E | 1/4HP |
| NB6165E | 1/3HP |
| NE6210E | 3/8HP |
| NE6211E | 1/2HP |
| NE9213E | 9/16HP |
| T6220E | 3/4HP |
| NJ9266E | 1HP |
| NJ9232E | 1.5HP |
| NJ9238E | 1.75HP |
| Refrigerant R134a Medium/High Back Pressure | |
| NE6170Z | 1/3HP |
| NE6187Z | 3/8HP |
| Refrigerant R134a Low Back Pressure | |
| NE1121Z | 7/16HP |
| NE1130Z | 1/2HP |
| NE2134Z | 9/16HP |
| Refrigerant R404a Low Back Pressure | |
| NEK2125GK | 7/16HP |
| NEK2134GK | 1/2HP |
| NEK2150GK | 1/2HP |
| T2155GK | 3/4HP |
| T2168GK | 3/4HP |
| T2178GK | 1HP |
| NJ2192GK | 1.5HP |
| NJ2212GK | 1.25HP |
| NE9213GK | 1/6HP |
| T6220GK | 3/4HP |
| T6222GK | 3/4HP |
| NJ9226GK | 1HP |
| NJ9232GK | 1.5HP |
| NJ9238GK | 1.75HP |
