| Brand Name: | SANYO |
| Model Number: | C-SB353H6B |
| MOQ: | 1 piece |
| Price: | discussed |
| Delivery Time: | 5-7days |
| Payment Terms: | T/T, Western Union, MoneyGram |

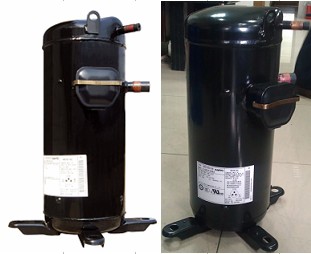

4.5HP R22-B6 60HZ 208 -230V C-SB353H6B R22 scroll compressor for aircondition
Main features
C-SB Series 3--7HP
1. High & low pressure baffle
2. Low sound float valve
3. Tip seal made of PPS
4. Direct power breakdown for motor protection
5. PTEE bearing:bronze with Tefion
6. R22/R407C/R134A/R410A
C-SC Series 8-15HP
1. High reliablity
2. High-performance rolling bearing is applied in the main frame and the bearing plate
3. Direct power breakdown for motor protection
4. The using of strainer in the suction inlet ensures
5. R22/R407C/R134A/R410A
| R22-B6(60HZ 208 -230V) | ||||||||||
| PH | Out put | Displacemert | Compressor Model | Compressor Code | Starting Method | 60HZ |
Outline Graph Code |
|||
| Capacity | COP | |||||||||
| HP | cm³/rev | kw | KBTU/h | W/W | BTU/Wh | |||||
| 1 | 3.5 | 51.8 | C-SB261H6C | 809 832 46 | CSR | 11.2 | 38.2 | 3.11 | 10.6 | A |
| 55.7 | C-SB261H6A | 809 830 46 | CSR | 12.1 | 41.3 | 3.23 | 11 | A | ||
| 4 | 66.8 | C-SB301H6B | 809 841 46 | CSR | 14.5 | 49.5 | 3.26 | 11.1 | A | |
| 4.5 | 77.4 | C-SB351H6A | 809 842 46 | CSR | 16.8 | 57.4 | 3.2 | 10.9 | As | |
| 5 | 83.2 | C-SB371H6A | 809 850 46 | CSR | 18 | 61.5 | 3.13 | 10.7 | A | |
| 3 | 3.5 | 51.87 | C-SB263H6C | 809 832 86 | 11.1 | 37.9 | 3.13 | 10.7 | A | |
| 55.7 | C-SB263H6B | 809 831 86 | 11.9 | 40.6 | 3.22 | 11 | A | |||
| 4 | 66.8 | C-SB303H6A | 809 840 86 | 14.4 | 49.2 | 3.27 | 11.2 | As | ||
| C-SB303H6B | 809 841 86 | 14.4 | 49.2 | 3.27 | 11.2 | A | ||||
| C-SB303H6G | 809 846 86 | 14.4 | 49.2 | 3.27 | 11.2 | At | ||||
| 4.5 | 77.4 | C-SB353H6B | 809 843 86 | 16.8 | 57.4 | 3.29 | 11.2 | A | ||
| C-SB353H6C | 809 844 86 | 16.8 | 57.4 | 3.29 | 11.2 | A | ||||
| 5 | 83.2 | C-SB373H6A | 809 850 86 | 18.1 | 61.8 | 3.32 | 11.3 | As | ||
| C-SB373H6B | 809 851 86 | 18.1 | 61.8 | 3.32 | 11.3 | A | ||||
| C-SB373H6G | 809 856 86 | 18.1 | 61.8 | 3.32 | 11.3 | At | ||||
| 6 | 100 | C-SB453H6A | 809 860 86 | 21.3 | 72.7 | 3.25 | 11.1 | As | ||
| C-SB453H6B | 809 861 86 | 21.3 | 72.7 | 3.25 | 11.1 | A | ||||
| C-SB453H6G | 809 866 86 | 21.3 | 72.7 | 3.25 | 11.1 | At | ||||
| 7 | 110.2 | C-SBR235H36A | 23.3 | 79.6 | 3.28 | 11.2 | As | |||
| C-SBR235H36B | 23.3 | 79.6 | 3.28 | 11.2 | At | |||||
| 8 | 131.9 | C-SC583H6H | 809 284 86 | 27.9 | 95.3 | 3.19 | 10.9 | D | ||
| 137 | C-SC603H6H | 809 281 86 | 29.6 | 101.1 | 3.31 | 11.3 | D | |||
| C-SC603H6K | 809 283 86 | 29.6 | 101.1 | 3.31 | 11.3 | Dt | ||||
| 9 | 148.8 | C-SC673H6H | 809 291 86 | 32.3 | 110.3 | 3.38 | 11.5 | E | ||
| 10 | 171.2 | C-SC753H6H | 809 201 86 | 37 | 126.3 | 3.36 | 11.5 | E | ||
| C-SC753H6K | 809 203 86 | 37 | 126.3 | 3.36 | 11.5 | Et | ||||
| 12 | 205.4 | C-SC903H6H | 809 221 86 | 43.2 | 147.5 | 10.8 | 10.8 | E | ||
