Product Details:
Payment & Shipping Terms:
|

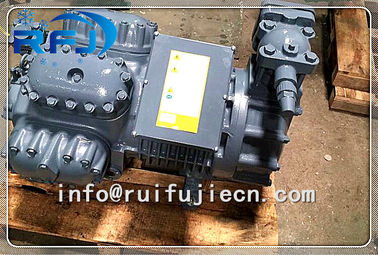

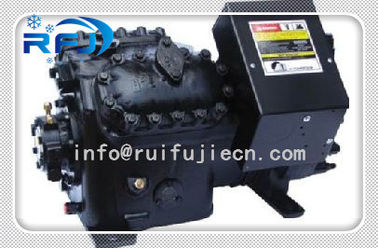

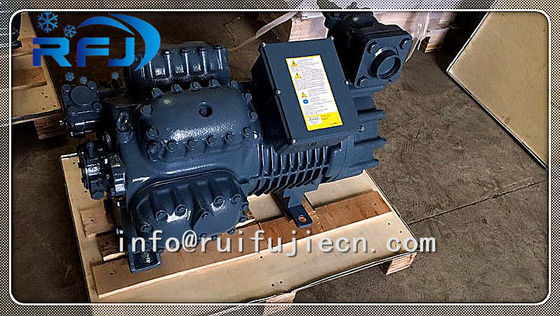

Place Of Origin: | Germany | Type: | Semi-hermetic Refrigeration Compressor |
---|---|---|---|
Application: | Refrigeration Parts | Horse Power: | 50HP |
Refrigerant: | R404 R407C R134A | Cylinder Count: | 8 |
Brand: | Copeland | Power Supply: | 380-420V/3/50Hz |
Highlight: | copeland semi hermetic compressor,semi hermetic reciprocating compressor |
Cylinder count: | 8 | |
Displacement [m³/h]: | 151 | |
Weight [kg]: | 347 | |
Oil charge [dm³]: | 7,7 | |
Max. operating current [A]: | 91,6 | |
Locked rotor current [A]: | 444 | |
Power supply [V/~/Hz]: | 400V/3/50Hz |
milimeters | inches | ||
Suction line: | 2 5/8" | ||
Discharge line: | 1 5/8" |
tc te | -35 | -30 | -25 | -20 | -15 | -10 | -5 |
30 | 1.55 | 1.79 | 2.05 | 2.35 | 2.69 | 3.09 | 3.56 |
35 | 1.38 | 1.61 | 1.85 | 2.12 | 2.42 | 2.76 | 3.17 |
40 | - | 1.44 | 1.66 | 1.91 | 2.17 | 2.48 | 2.82 |
45 | - | 1.27 | 1.49 | 1.71 | 1.95 | 2.22 | 2.52 |
50 | - | - | 1.31 | 1.52 | 1.75 | 1.99 | 2.26 |
55 | - | - | - | 1.35 | 1.56 | 1.78 | 2.02 |
