R22 Piston Compressor 6GE-34-40P Industrial Refrigeration Cold Room Applied

Name: R22 Piston Compressor 6GE-34-40P Industrial Refrigeration Cold Room Applied
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: 6GE-34-40P
Price: 10000 USD
Availability: InStock

Model Number:	6GE-34-40P
MOQ:	1 Piece
Price:	discussed
Delivery Time:	5-7 Days
Payment Terms:	T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Type:

Refrigeration Compressor

Application:

Refrigeration Parts

Certification:

ROHS, CE

Power:

34HP

Cylinder:

Weight:

228KG

Refrigerant:

R22

Color:

Green

Warranty:

1 Year

Power Source:

AC POWER

Packaging Details:

Standard Wooden Package

Supply Ability:

10000Pieces/Year

Highlight:

air cooled condenser unit

air cooled condensing unit

Product Description

R22 Piston Compressor 6GE-34-40P Industrial Refrigeration Cold Room Applied

R22 commercial compressor for industrial refrigeration Cold Room 6GE-34-40P

Company Information

We are first level agent for offering you competitive price
We have all models available
We provide fast delivery within 1-7 days after payment
We provide perfect after sales service
We have regular clients of product from both home and abroad

Product Features

New valve plate design
- New geometric concept for pressure valves - for low rear expansion
- High cooling capacity with minimal energy requirements
- The ECOLINE cylinder head system: Flexible operation in tandem
Motor
- Efficient under full- and part-load thanks to its broadband characteristics
- The universal refrigeration compressor: Motor version 2 for medium and low temperature applications
- Motor versions 1 and 3 for special applications
Capacity control
- The CRII system - intermittent blocked suction. For example, 4-cylinder compressor with CRII on both heads: Range of control from 100% to ~10%
- ECOLINE VARISPEED - built-in frequency inverter
Downward compatible
- Essential internal components completely redesigned
- Outer contour as standard: Every ECOLINE is downward compatible
Drive gear
- New piston and connecting rod design

Technical Specifications

Technical Data of 22hp Cold Room Compressor 6JE-25 (6J-22.2)

Specification	SI Units	IP Units
Displacement (1450 RPM 50Hz)	95.3 m³/h	3365.5 CFH
Displacement (1750 RPM 60Hz)	115.02 m³/h	4061.9 CFH
No. of cylinder x bore x stroke	6 x 65 mm x 55 mm	6 x 2.56 inch x 2.17 inch
Weight	213 kg	470 lb
Max. pressure (LP/HP)	19 / 32 bar	275 / 464 psi
Connection suction line	54 mm - 2 1/8"	54 mm - 2 1/8"
Connection discharge line	35 mm - 1 3/8"	35 mm - 1 3/8"
Oil type R134a/R407C/R404A/R507A/R407A/R407F	BSE32(Standard) / R134a tc>70°C: BSE55 (Option)	BSE32(Standard) / R134a tc>155°F: BSE55 (Option)
Oil type R22 (R12/R502)	B5.2(Option)	B5.2(Option)

Extent of Delivery (Standard) of 22hp Cold Room Compressor 6JE-25 (6J-22.2)

Component	SI Units	IP Units
Motor protection	SE-B2	SE-B2
Enclosure class	IP54 (Standard), IP66 (Option)	IP54 (Standard), IP66 (Option)
Vibration dampers	Standard	Standard
Oil charge	4.75 dm³	167.2 fl oz

Motor Data of 22hp Cold Room Compressor 6JE-25 (6J-22.2)

Parameter	SI Units	IP Units
Motor version	2	2
Motor voltage (more on request)	380-420V PW-3-50Hz	440-480V Y-3-60Hz UL
Max operating current	46.4 A	46.4 A
Winding ratio	50/50	50/50
Starting current (Rotor locked)	141.0 A Y / 233.0 A YY	245.0 A

Sound Measurement of 22hp Cold Room Compressor 6JE-25 (6J-22.2)

Measurement	SI Units	IP Units
Sound power level (-10°C / 45°C)	79.3 dB(A) @50Hz	81.8 dB(A) @60Hz
Sound power level (-35°C / 40°C)	85.0 dB(A) @50Hz	87.5 dB(A) @60Hz
Sound pressure level @ 1m (-10°C / 45°C)	71.3 dB(A) @50Hz	73.8 dB(A) @60Hz
Sound pressure level @ 1m (-35°C / 40°C)	77 dB(A) @50Hz	79.5 dB(A) @60Hz
Sound power level (-10°C / 45°C) R134a	77.3 dB(A) @50Hz	79.8 dB(A) @60Hz
Sound pressure level @ 1m (-10°C / 45°C) R134a	69.3 dB(A) @50Hz	71.8 dB(A) @60Hz

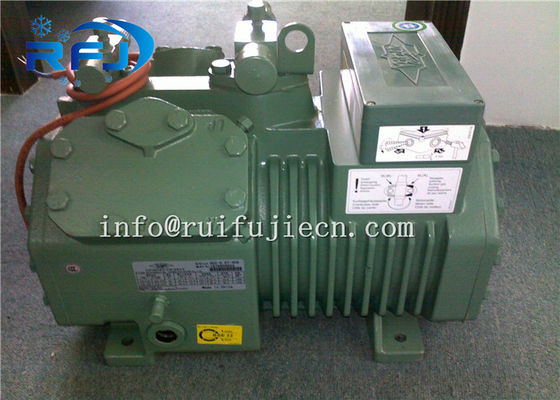

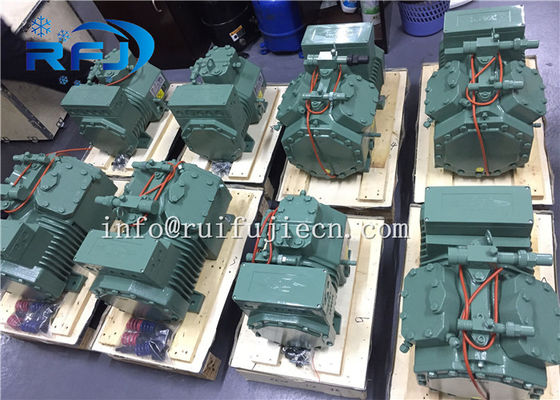

Product Images
