| Model Number: | 4VES-6Y/4VES-7Y |
| MOQ: | 1 |
| Price: | discussed |
| Delivery Time: | 1-6DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |

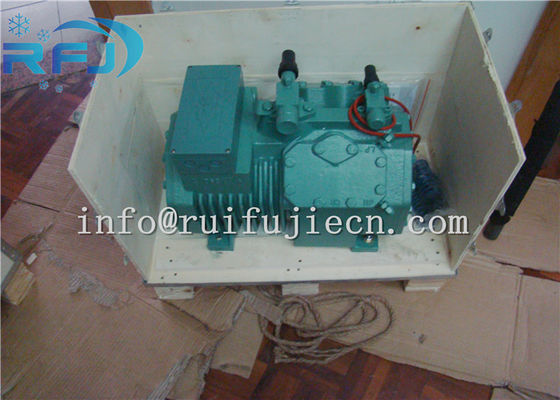

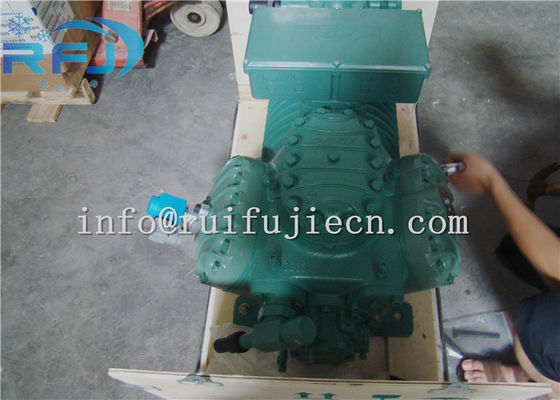

3 Motor 6HP 134a Piston Compressor 4VES-6Y Refrigeration Parts For Cool Room 4VES-7Y
4VES-6Y
| compressor type | Motor version |
Displacement at 1450min-1 m3/h |
Number of cylinders |
oil charge dm3 |
Weight kg |
Pipe connections | CR Step % |
Motor connection |
Electrical data | ||
| DL mm pouce |
SL mm pouce |
Max.operating current Amp |
Max.power consumption kw |
||||||||
| 4VES-6Y | 3 | 34,7 | 4 | 2,6 | 129 | 22 7/8 | 28 1 1/8 | 50 | 380~420YY/3/50 440~480YY/3/60 |
10,0 | |
Piston Compressor
1.All models on sale
2.Agency of central China
3.Competitive Price
4.Continuous Supply Capacity
refrigeration compressor features:
A closely graduated product range for modern refrigeration,A/C,and heat pump systems
With the ECOLINE series offers highly efficient all-purpose compressors,which meet the challenging demands of modern refrigeration systems:
Extended application range
R134a up to tc=85℃
R404 and R507 up to tc=62℃
Energy efficient
High cooling capacity minimum energy requirement:
Highly efficient working valves
Minimum clearance volume
Efficient,large-volume motor
Reduced flow losses at low condensing temperatures
Wear resistant drive gear
Surface hardened eccentric shaft and crankshaft
Low friction bearings and aluminium pistons
Hard chrome plated piston rings
Quiet with low vibration
Optimized mass balance
Low discharge gas pulsations due to special cylinder hear design
Minimum space requirement
Very compact design
Robust
Solid valve plate design
Valves made of impact resistant spring steel
Wear resistant drive gear
Efficient capacity control
Cylinder shut-off or VSD capacity control possible
Cylinder shut-off possible from 18 displacement (50HZ) on
-4 cylinder compressor:50%
-6 cylinder compressor:66%/33%
-8 cylinder compressor:75%/50%
Fast cycling cylinder shut-off,e.g.
4 cylinder compressor on both cylinder heads:100% to approx.10%
Tandem compressors from 22,7m3/h to 303m3/h(50hz)
Approved parallel operation
VSD capacity control from 25 to 70HZ.Explanations see pages 7 and 8
ECOLINE compressors for frequency inverter operation up to 70 HZ
|
|
