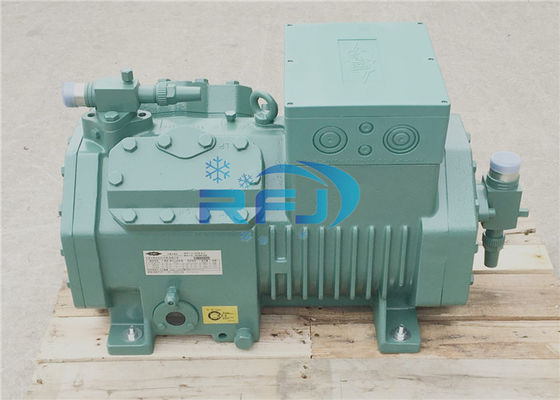

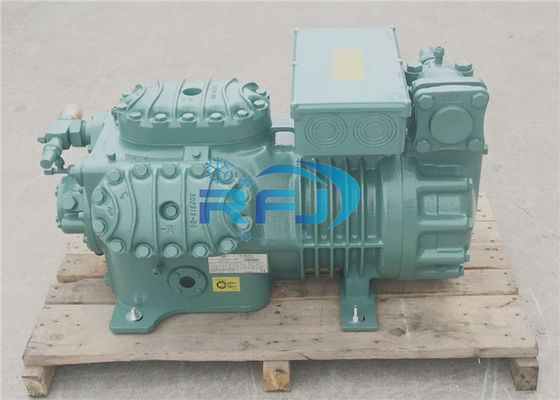

15HP R22 Piston Compressor 4 Cylinder Dual Capacity Control 4JE-15Y-40P/4J-13.2Y-40P

Name: 15HP R22 Piston Compressor 4 Cylinder Dual Capacity Control 4JE-15Y-40P/4J-13.2Y-40P
Brand: Shenzhen Ruifujie Technology Co., Ltd.
SKU: 4JE-15Y-40P,4J-13.2Y-40P
Price: 10000 USD
Availability: InStock

Model Number:	4JE-15Y-40P,4J-13.2Y-40P
MOQ:	1
Price:	discussed
Delivery Time:	1-6DAYS
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

china

Certification:

ce 3c

Place Of Origin::

Germany

Power::

15HP

Refrigerant::

R22

Weight(kg)::

190

Power Source::

AC Power

Type::

Refrigeration Compressor

Cylinder::

Packaging Details:

wooden packaging

Supply Ability:

1000

Highlight:

air cooled condenser unit

semi hermetic reciprocating compressor

Product Description

15HP R22 Piston Compressor 4 Cylinder Dual Capacity Control 4JE-15Y-40P/4J-13.2Y-40P

Packaging & Delivery

Packaging Details

By Sea: Export wooden package, with refrigerant oil

By Air: Full-sealed wooden package, without refrigerant oil

Port: Shenzhen

Lead Time

Quantity (Units)	1 - 3	>3
Estimated Time (days)	5	To be negotiated

Compressor Advantages

Energy Efficient

High-efficiency profile
Infinite or closely stepped capacity control
Optimum economiser operation

Universal

R134a, R407C and R22 (R404A, R507A upon request)
With and without economiser (ECO)

Flexible

Dual capacity control
Changeable between 4-stage and infinite capacity control - without retrofitting the compressor
Suction and discharge gas connections can be rotated in 90° increments

Technical Features

Advanced technology, compact dimensions, small volume and space requirements
High precision machining to ensure the compressor conforms with standards
CNC processing center, concentricity due to specific processing technology, minimal dead space
Steady operation, small vibration, and low noise with excellent stability
Environmentally friendly refrigerants like R22, R404 adopted for low and mid temperature applications
Electrical motor protection device with PTC sensor
Wear resistant driver gear, chrome plated piston rings and aluminum pistons, hardened crank-shaft with low friction bearing set
Efficient valve plate design, high refrigerating capacity and low energy consumption, efficient compression rate with valve reed made of imported impact resistant spring steel
General spare parts for convenient maintenance

Technical Specifications

Model	Stage	Bore (mm)	Cylinder	Stroke (mm)	Speed (rpm)	Motor Frame	Suction	Discharge
4JE-15(Y)	2	63.5	4	4.0	190	28	1 1/8	42
4JE-22(Y)	1	63.5	4	4.0	190	28	1 1/8	42
4HE-15Y	3	73.7	4	4.0	183	28	1 1/8	42
4HE-18(Y)	2	73.7	4	4.0	190	28	1 1/8	42
4HE-25(Y)	1	73.7	4	4.0	194	28	1 1/8	54
4GE-20Y	3	84.6	4	4.5	192	28	1 1/8	54
4GE-23(Y)	2	84.6	4	4.5	192	28	1 1/8	54
4GE-30(Y)	1	84.6	4	4.5	206	28	1 1/8	54
4FE-25Y	3	101.8	4	4.5	196	28	1 1/8	54
4FE-28(Y)	2	101.8	4	4.5	207	28	1 1/8	54
4FE-35(Y)	1	101.8	4	4.5	207	28	1 1/8	54
