Product Details:
Payment & Shipping Terms:
|
| Applicable Industri: | Cold Room | Place Of Origin: | Zhejiang, China |
|---|---|---|---|
| Brand Name: | RUIFUJIE | Type: | Condenser |
| Application: | Refrigeration Parts | Certification: | CE |
| After-sales Service: | Video Technical Support, Field Installation, Commissioning An | Model: | FNH-9.5 |
| Heat Exchange Cap: | 3.2KW | Cooper Pipe Arrang: | 3*8 |
| Air Volume: | 7000m3/h | Voltage: | 380v |
| Highlight: | air cooled condenser unit,air cooled condensing unit |
||

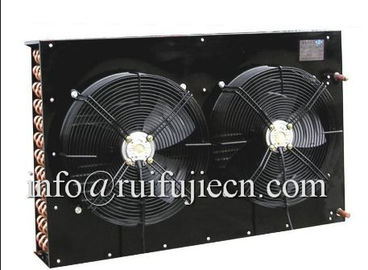

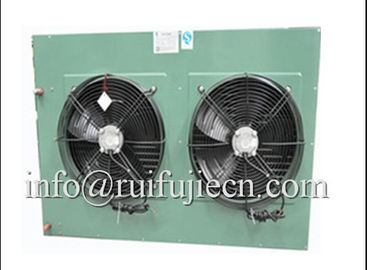

Industrial Air Cooled Refrigeration Condenser Heat Exchanger Air Cooled CondenserFNH-9.5
Product Description:
All of our products can accept customization, accessories are UL certified and our products in the course of processing and are subject to stringent quality inspection before delivery, if there is a need, we photographed in the process every step of the process can be sent to customers.
Tech.Data
| Model | Heat exchange capacity (kW) |
Surface (m2) |
Copper pipe arrangement |
Fan | Into trachea (mm) |
Fluid Outlet (mm) |
||||
| Qty | Fan Dia (mm) |
Air volume (m3/h) |
Power (w) |
Vlotage (v) |
||||||
| FNH-0.6/2 | 0.6 | 2 | 2*4 | 1 | 200 | 425 | 30 | 220 | 10 | 10 |
| FNH-0.9/3 | 0.9 | 3 | 3*4 | 1 | 200 | 425 | 30 | 220 | 10 | 10 |
| FNH-1.2/4 | 1.2 | 4 | 3*5 | 1 | 200 | 425 | 30 | 220 | 10 | 10 |
| FNH-1.7/6 | 1.7 | 6 | 3*6 | 1 | 300 | 1750 | 1*90 | 220/380 | 10 | 10 |
| FNH-2.5/8.5 | 2.5 | 8.5 | 3*8 | 1 | 350 | 1750 | 1*90 | 220/380 | 16 | 16 |
| FNH-4.6/15 | 4.6 | 15 | 4*9 | 1 | 350 | 3670 | 1*135 | 220/380 | 19 | 16 |
| FNH-5.4/18 | 5.4 | 18 | 4*10 | 1 | 400 | 3500 | 1*190 | 380 | 19 | 16 |
| FNH-6.4/22 | 6.4 | 22 | 5*10 | 1 | 400 | 3500 | 1*190 | 380 | 19 | 16 |
| FNH-6.4/22B | 6.4 | 22 | 4*8 | 2 | 350 | 5340 | 2*135 | 380 | 19 | 16 |
| FNH-7.3/28 | 7.3 | 28 | 4*9 | 2 | 350 | 5340 | 2*135 | 380 | 19 | 16 |
| FNH-9.7/33 | 9.7 | 33 | 4*10 | 2 | 400 | 7000 | 2*190 | 380 | 19 | 16 |
| FNH-12.0/41 | 12 | 41 | 5*10 | 2 | 400 | 7000 | 2*190 | 380 | 19 | 16 |
| FNH-13.8/50 | 13.8 | 50 | 5*12 | 2 | 400 | 7000 | 2*190 | 380 | 22 | 16 |
| FNH-16.2/60 | 16.2 | 60 | 6*12 | 2 | 400 | 7000 | 2*190 | 380 | 22 | 16 |
| FNH-20.7/70 | 20.7 | 70 | 4*18 | 4 | 350 | 10680 | 4*135 | 380 | 25 | 19 |
| FNH-23.0/80 | 23 | 80 | 4*20 | 4 | 400 | 14000 | 4*190 | 380 | 25 | 19 |
| FNH-27.6/100 | 27.6 | 100 | 5*20 | 4 | 400 | 14000 | 4*190 | 380 | 28 | 22 |
| FNH-33.3/120 | 33.3 | 120 | 5*24 | 4 | 400 | 14000 | 4*190 | 380 | 32 | 22 |
| FNH-39.8/140 | 39.8 | 140 | 5*24 | 4 | 450 | 18000 | 4*250 | 380 | 32 | 22 |
| FNH-45.6/160 | 45.6 | 160 | 5*26 | 4 | 450 | 18000 | 4*250 | 380 | 32 | 22 |
| FNH-49.9/180 | 49.9 | 180 | 5*26 | 4 | 450 | 18000 | 4*250 | 380 | 32 | 22 |
