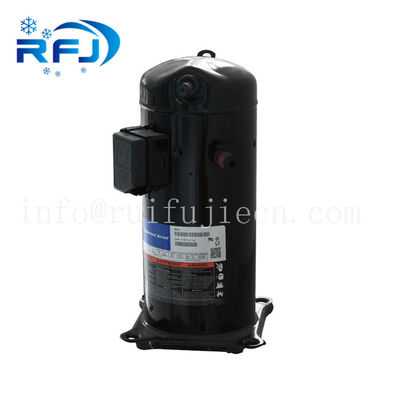

Copeland Refrigeration Low Temperature Scroll Compressor R404a 5HP ZF15KQE-TFD-556

Copeland Refrigeration Low Temperature Scroll Compressor R404a 5HP ZF15KQE-TFD-556
Copeland Refrigeration Low Temperature Scroll Compressor R404a 5HP ZF15KQE-TFD-556 Copeland Refrigeration Low Temperature Scroll Compressor R404a 5HP ZF15KQE-TFD-556

Large Image :  Copeland Refrigeration Low Temperature Scroll Compressor R404a 5HP ZF15KQE-TFD-556

Product Details:
Place of Origin: China
Brand Name: Copeland
Certification: CE/SGS
Model Number: ZF15KQE-TFD-556
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: discussed
Packaging Details: 16PCs / Pallet
Delivery Time: 1-4 working days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5,000pcs per month
Detailed Product Description
Piston Type: Scroll Configuration: Stationary
Horse Power: 5hp Drive Mode: Electric
Temperature: Up To -40 Degree Dimension(L*W*H): 283x246x470MM
Weight: 36KG Voltage: 380/420v
Refrigerant: R404 Connection: Rotalock
Valve Connections: 7/8''
High Light:

copeland ac compressor


copeland a c compressor

Copeland Refrigeration 5HP ZF15KQE-TFD-556 low temperature Scroll Compressor R404a For Air Conditioner

Product Description

ZF Copeland scroll compressor for low temperature refrigeration applications

Product Features

  • Oil sight glass
  • Schraeder connection for oil fill/drain
  • Supplied with soft mounting rubbers for single compressor operation (hard mountings required for multi compressor [pack] installations
  • Internal motor protection
  • Discharge thermostat
  • DTC liquid injection valve
  1. copeland scroll compressor.
  2. Model number:ZF15K4E-TFD-556.
  3. working R134a and R404a refrigerant.
  4. 380V.
  5. with sight glasses.
  6. up to -40 degree.

ZF Compressor Specifications:

  • Refrigerant: R404/R22 50Hz
  • Low Temperature
  • 2-15HP
  • One model for multi-refrigerants R-404A, R-407A, R-134A certain models and R-22
  • High tolerance to liquid slugging thanks to its axial and radial scroll compliance
  • Large Operating envelope and low condensing capabilities down to 10° C
  • Easy, efficient and reliable liquid injection with Discharge Temperature Control Valve (DTC)
  • Availability of Copeland Scroll Digital® Technology

1.The most competitive price by agency directly
2.High-quality compressor by Emerson
3.High efficiency, low noise
4.used for cold room


Brand: Copeland
By Model Number: N2CQ30-3LS-D
Connection: Rotalock
Dim 1 (mm): 490
Model Number: ZF15K4E TFD556
Voltage: 380/420
Warranty: 1 Year
Depth With Decoration Panel (mm): 241
Displacement CC: 14,5
Electric Supply: 380-420V / 50Hz / 3ph
Electrical Rating: 10
Phase: Three Phase
Refrigerant: Refer to Copeland literature for approved refrigerants
Refrigerant Suitability: R404A;R22
Tube Connection Size (mm): -
Valve Connections: 7/8
Width With Decoration Panel (mm): 244
Horse Power: 5
Application Temperature (C): -
Application Temperature (C): -

Please find more ZF types below and contact us for more information:


Model ZF09K4E-TFD-551 ZF11K4E-TFD-551 ZF15K4E-TFD-551 ZF18K4E-TFD-551
Diaplacement 8.04 9.95 14.37 17.06
(M3/one hour)
LRA(A) 40 46 64 74
RLA(A) 5 6.4 8.6 8.9
MCC(A) 7 9 12 12.5
Crank heater(W) 70W 70W 70W 70W
Discharge 1/2" 1/2" 1/2" 1/2"
Suction 3/4" 3/4" 7/8" 7/8"
L 242 243 241 241
W 242 244 244 244
H 383 452 490 490
Oil fill(L) 1.5 1.5 1.9 1.9
Gross weight(kgs) 26 31 42 44


Model No. Nom HP Displ. cc/rev evaporating temperature: °c
-40 -35 -25 -15 -5 0
ZF06K4E TFD550 2 34 900 1134 1600 2450 3300 3960
ZF08K4E TFD550 2.5 41.9 1100 1433 2100 3150 4200 5040
ZF09K4E TFD550 3 46.4 1200 1500 2300 3300 4700 5600
ZF11K4E TFD550 3.5 57.5 1500 1800 2800 4100 5800 7000
ZF13K4E TFD551 4 67.8 1700 2100 3200 4800 6900 8200
ZF15K4E TFD551 5 83.3 2100 2600 3900 5800 8300 10000
ZF18K4E TFD551 6 98.8 250 3100 4800 6900 10000 12000
ZF24K4ETWD551 7.5 126 3060 3800 580 8500 12300 14700
ZF33K4ETWD551 10 166 4350 5300 8200 12200 17500 20800
ZF40K4ETWD551 13 204 5200 6400 10000 14800 21300 25500
ZF48K4ETWD551 15 244 6000 7400 11400 16900 24500 29300

Copeland Refrigeration Low Temperature Scroll Compressor R404a 5HP ZF15KQE-TFD-556 0Copeland Refrigeration Low Temperature Scroll Compressor R404a 5HP ZF15KQE-TFD-556 1


Vapor injection is a versatile method of improving system capacity and efficiency in many commercial refrigeration applications. Traditionally the only way to enjoy the added benefits of this type of mechanical subcooling was with a large screw compressor or two semi-hermetic reciprocating compressors. Now the Copeland Scroll® compressor enables significant performance gains with a single compressor. Injecting vapor in the middle of the compression process boosts capacities and efficiencies significantly. Scroll Compressors in Refrigeration Building on the success of scroll compressors in the refrigeration market world-wide, Emerson Climate Technologies, Inc. includes the ZF*KVE family of high efficiency refrigeration scrolls with vapor injection dedicated to low temperature applications. Vapor Injection Circuit for Low Temperature Applications The new scroll range includes 6 models from 4 to 15 HP and is designed to offer high efficiency levels at low evaporating temperatures with R404A and R507. It is the ideal choice for condensing units, parallel racks and distributed refrigeration systems. Copeland Scroll with Vapor Injection The ZF*KVE scroll compressor cycle is similar to a two-stage cycle with interstage cooling but with one single compressor. The high stage consists of extracting a portion of the condenser liquid and expanding it through an expansion valve into a heat exchanger acting as a subcooler. The superheated vapor is then injected into an intermediate port in the scroll compressor. The additional subcooling increases evaporator capacity.

Copeland Refrigeration Low Temperature Scroll Compressor R404a 5HP ZF15KQE-TFD-556 2
