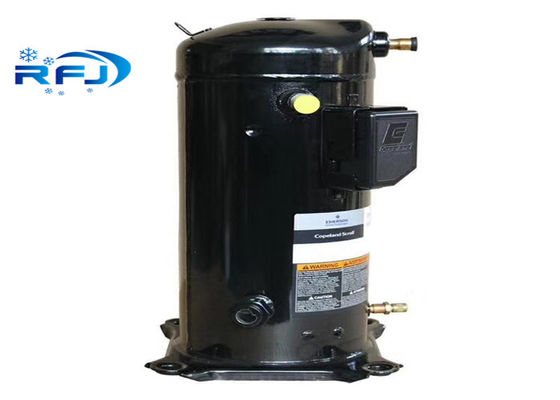

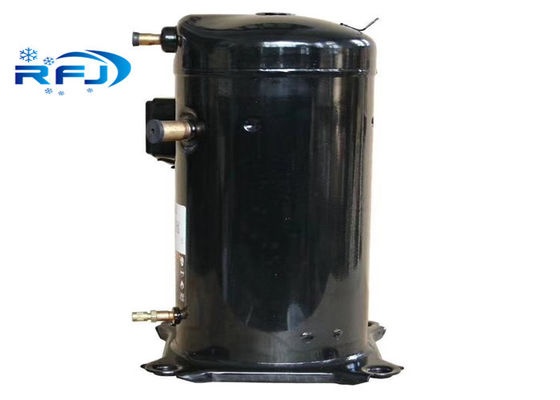

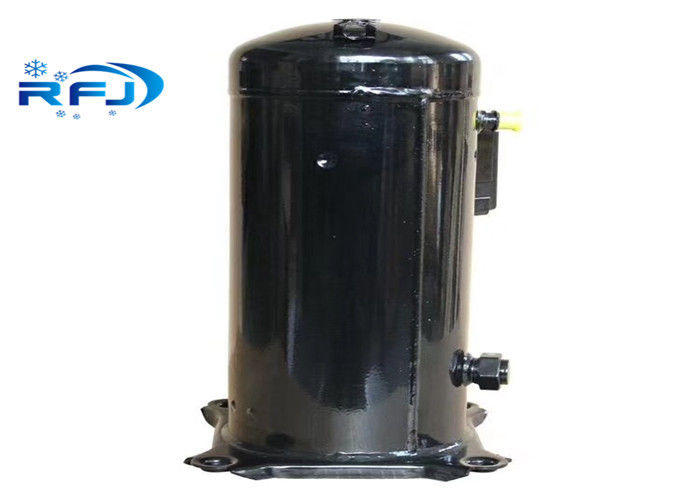

13hp Scroll Compressor 2m³/h Displacement ZFI59KQE-TFD-554 With Air Injection
ac compressor
,commercial refrigeration compressor
High-performance 13hp scroll compressor with air injection technology, designed for efficient refrigeration applications in cold room systems.
- Refrigerant: R404/R22 50Hz
- Temperature Range: Low Temperature
- Power Range: 2-15HP
- Multi-refrigerant Compatibility: R-404A, R-407A, R-134A (certain models) and R-22
- Axial and Radial Scroll Compliance: High tolerance to liquid slugging
- Operating Envelope: Large operating range with low condensing capabilities down to 10°C
- Liquid Injection: Easy, efficient and reliable with Discharge Temperature Control Valve (DTC)
- Technology: Scroll Digital® Technology available
- Competitive pricing through direct agency supply
- High-quality compressor construction
- High efficiency with low noise operation
- Designed for cold room applications
| Model | ZFI20KQE-TFD-551 | ZFI26KQE-TFD-551 | ZFI36KQE-TFD-551 | ZFI50KQE-TFD-551 |
|---|---|---|---|---|
| Displacement (M³/hour) | 9.0 | 13.7 | 16.0 | 25.0 |
| LRA(A) | 40 | 46 | 64 | 74 |
| RLA(A) | 5 | 6.4 | 8.6 | 8.9 |
| MCC(A) | 7 | 9 | 12 | 12.5 |
| Crank heater(W) | 70W | 70W | 70W | 70W |
| Discharge | 1 1/4" | 1 1/4" | 1 1/4" | 1 3/4" |
| Suction | 1" | 1" | 1 1/4" | 1 1/4" |
| Dimensions L (mm) | 257 | 308 | 308 | 363 |
| Dimensions W (mm) | 246 | 246 | 246 | 312 |
| Dimensions H (mm) | 438 | 438 | 438 | 546 |
| Oil fill(L) | 1.89 | 1.89 | 1.89 | 3.37 |
| Gross weight(kgs) | 39 | 39 | 39 | 63 |
| Model No. | Nom HP | Displ. cc/rev | -40°C | -35°C | -25°C | -15°C | -5°C | 0°C |
|---|---|---|---|---|---|---|---|---|
| ZFI20KQE-TFD | 4HP | 11.7 | 3.46 | 4.31 | 6.33 | 8.93 | 12.20 | 14.05 |
| ZFI26KQE-TFD | 6HP | 17.1 | 5.20 | 6.40 | 9.31 | 27.10 | 36.80 | 42.30 |
| ZFI36KQE-TFD | 7.5HP | 21.4 | 6.52 | 8.06 | 11.85 | 16.35 | 22.20 | |
| ZFI50KQE-TFD | 10HP | 29.1 | 8.94 | 11.05 | 16.00 | 22.40 | 30.40 | |
| ZFI59KQE-TFD | 13HP | 35.3 | 11.05 | 13.65 | 19.80 | 27.10 | 36.80 | |
| ZFI68KQE-TFD | 15HP | 42.4 | 12.55 | 15.50 | 21.50 |
Vapor injection is a versatile method that significantly improves system capacity and efficiency in commercial refrigeration applications. Traditionally requiring large screw compressors or multiple semi-hermetic reciprocating compressors, this technology is now available in a single Scroll® compressor.
Injecting vapor during the compression process boosts capacities and efficiencies substantially. The ZF*KVE family of high-efficiency refrigeration scrolls with vapor injection is specifically designed for low temperature applications using R404A and R507 refrigerants.
The vapor injection circuit functions similarly to a two-stage cycle with interstage cooling but within a single compressor. Liquid from the condenser is expanded through a valve into a heat exchanger acting as a subcooler, with the resulting superheated vapor injected into an intermediate port in the scroll compressor. This additional subcooling increases evaporator capacity, making it ideal for condensing units, parallel racks, and distributed refrigeration systems.
