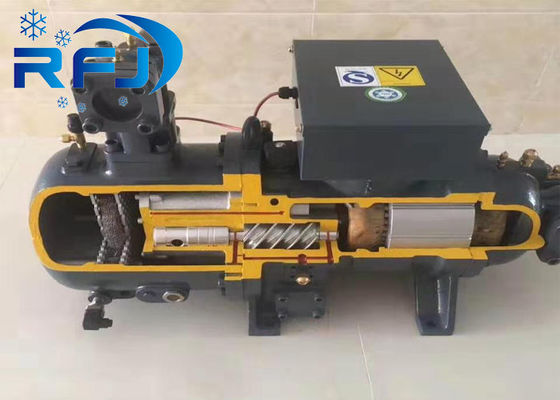

Hanbell RC2-200B-W Screw Refrigeration Compressor Semi Hermetic Compressor For Chillers
Hanbell RC2-200B Screw Refrigeration Compressor
,Semi Hermetic Screw Refrigeration Compressor
,Chillers Semi Hermetic Compressor
RC2-200A Hanbell RC2 Screw semi-hermetic Compressor for chillers
RC2 series compressors not only inherit the high efficiency and reliability of RC series, but also have the following new functions to meet different customer demands:
- For different refrigerant applications, operating conditions and power input, the corresponding motor with the best efficiency is designed
- Dual-capacitor adjustable application mode (multi-segment/non-segment) provides more precise and stable mechanism control capability (optional function)
- The design of floating medium pressure energy-saving hole enables the energy-saving valve to be used not only under full load, but also under partial load
- All models on sale
- Wide range of collocation
- High Efficiency Multinational Patent Rotor
- Design of High Efficiency Motor
- Long life bearing and high reliability
- Design of Rotor Protection with Double Shells
- Design of External Flange of Oil Separator
- Precision Volume Control
- Precise electronic control protection
- Optional external cooling system
| MODEL | COMPRESSOR | MOTOR | Lubricant charge | Oil Heater | Hydrostatic Pressure Test | WEIGHT | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Displacement 60/50Hz | Rated Speed 60/50Hz | VI Cap. Control (%) | Type | Nominal Hp | Starting | Voltage (V) | nsulation | Protection | ||||||||
| RC2-100B | 118/98 | 3550/2950 | 2.2-4.8 | 33,66,100 | 33~100 | 3 Phase, 2 Pole, Squirrel Cage, Induction Motor | 38/31 | Y-Δ PWS DOL | 208-575 | 380-415 | Class F | TC Protection | 7 | 150/300 | 42 | 280 |
| RC2-140B | 165/137 | 33,66,100 | 33~100 | 50/41 | 7 | 285 | ||||||||||
| RC2-180B | 216/180 | 33,66,100 | 33~100 | 66/55 | 7 | 335 | ||||||||||
| RC2-200B | 233/193 | 25,50,75,100 | 25~100 | 70/58 | 8 | 425 |
