Product Details:
Payment & Shipping Terms:
|
| Voltage: | 208-230v | Packing: | Wooden Case |
|---|---|---|---|
| Cylinder: | 4 | Type: | Compressor |
| Refrigerant: | R-507/404A | Power Source: | AC Power |
| High Light: | reciprocating refrigeration compressor,twin screw compressor |
||

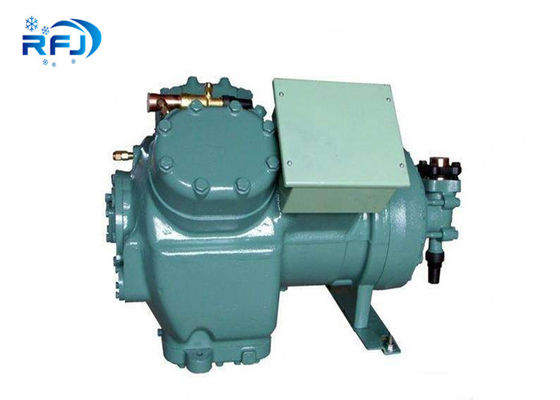

4 Cylinder Gray 15HP Carlyle Compressor R-507/404A Carrier Model 06ER150
| brand | carrier |
| model | 06ER150 |
| Horse power | 15 |
| Refrigerant | R-507/404A |
| Voltage | 208-230v |
| Oil charge(liters) | 6.62 |
| TYPE | Refrigeration Compressor |
| MOQ | 1 |
| packing | wooden case |
| weight(kg) | 195 |
Features and Benefits
1. Carlyle 06D/E semi-hermetic compressors are ideally suited for commercial refrigeration, air conditioning, process cooling, and environmental chambers.
2. The compressors may be operated at 50 or 60 hertz and are CSA (Canadian Standards Association),UL (Underwriters’ Laboratories), and ISO 9002 approved.
3. They are extremely flexible and may be used with many of the new HFC refrigerants such as R-507, R-404A, and R-134a, in addition to the conventional refrigerants (R-12, R-22, and R-502).
| MODEL NUMBER | HP | CMM@1450 rpm | Number of cylindres | Bore(cm) | Stroke(cm) | Oil charge(liters) | Net weight(kg) | RLA | LRA | Cooling capacity(50hz) |
| 06ER150 | 15 | 1.19 | 4 | 6.83 | 5.56 | 8.99 | 195 | 76 | 283 | 12.13 |
| 06ER165 | 20 | 1.61 | 6 | 6.83 | 5.04 | 8.99 | 218 | 90 | 345 | 15.71 |
| 06ER175 | 20 | 1.78 | 6 | 6.83 | 5.5 | 8.99 | 222 | 90 | 345 | 17.93 |
| 06ER099 | 30 | 2.34 | 6 | 6.83 | 7.3 | 8.99 | 227 | 130 | 506 | 24.99 |
