Product Details:
Payment & Shipping Terms:
|
| Certification: | CE | Type: | Evaporator |
|---|---|---|---|
| Product Name: | Screw Compressor | Warranty: | 1 Year |
| Voltage: | 460 Volts 3 Phase | Material: | Stainless Steel |
| Condition: | New | Color: | Green |
| Refrigeration: | Freon | Weight: | 165KG |
| High Light: | evaporator in refrigeration system,air cooler evaporator |
||

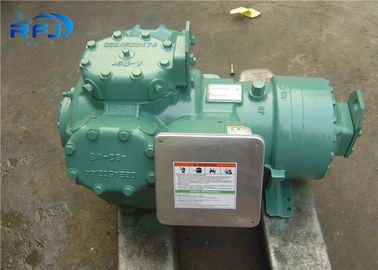

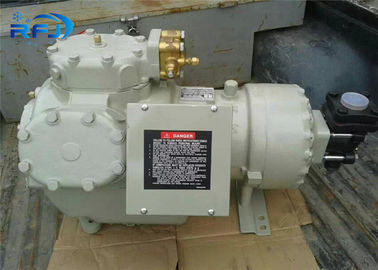

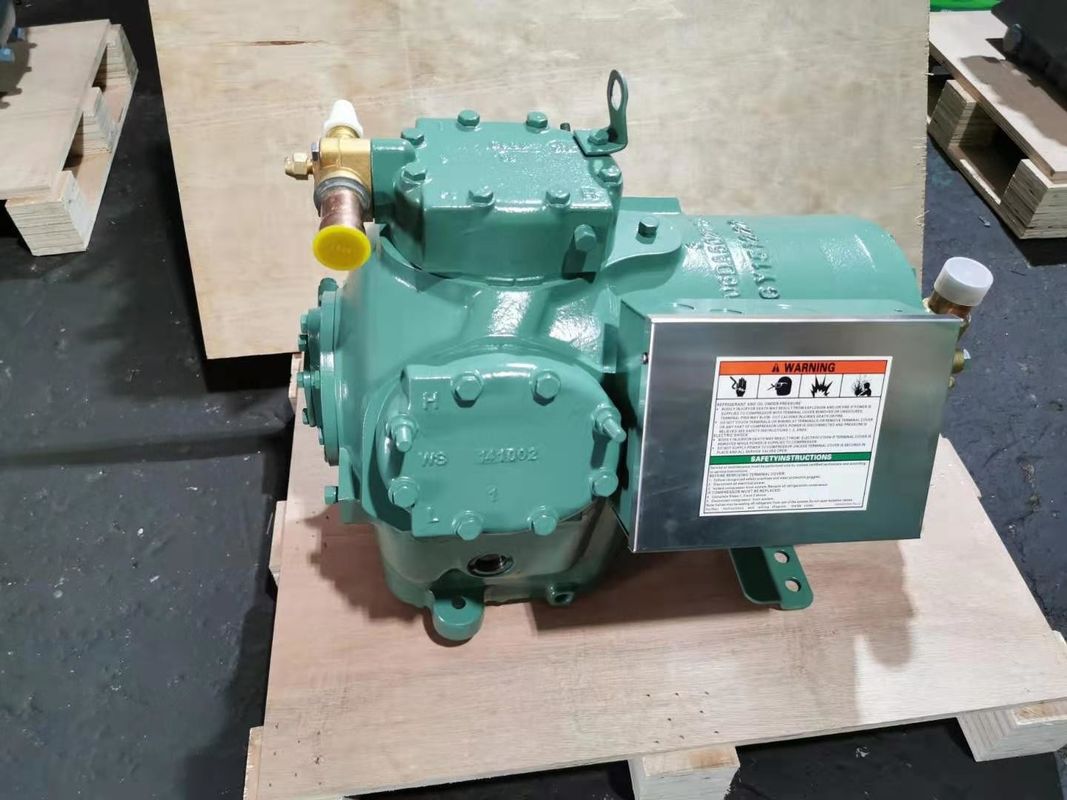

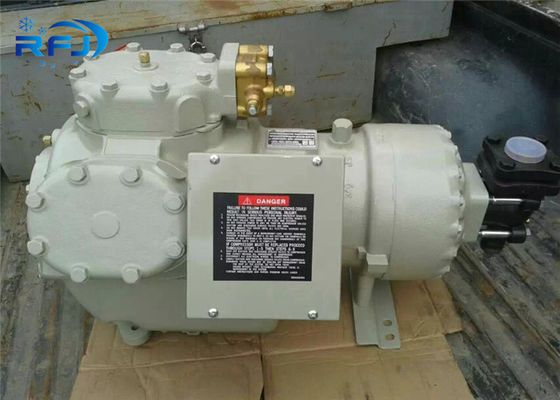

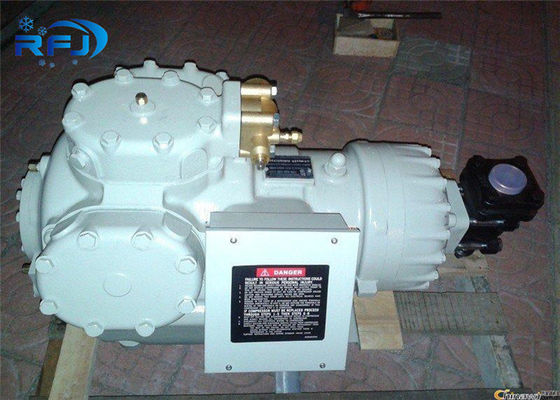

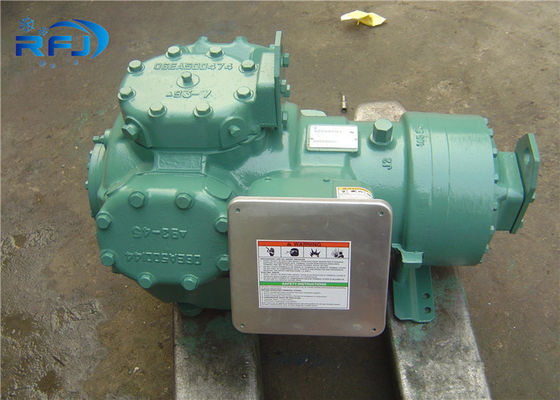

Carrier Screw Compressor 06DR3370DA3650 400/460 Volts 3 Phase with 10 HP
1, Product Description:
Model: 06DR3370DA3650
Voltage::460V
max pla :22.1
HS Code:8414301300
Color:Green
2, product feature and application:
Low Temperature Reciprocating Semi-Hermetic Compressor 06DR013 is application in refrigeration ,There is a specific contour on the piston surface, which makes the suction valve plate fit with the groove of the piston, so as to reduce the clearance, improve the capacity and efficiency,The connecting rod has a through hole, which can provide good bearing lubrication and extend the service life. Stable performance, can be widely used in various fields Compressors are available for operation in low temperature R-502, medium temperature R-12, and air conditioning R-22 applications.
Design modifications allow the use of HFC refrigerants R-134a, R-404A, R-407C, and R-507. This guide provides information and recommen dations for the successful application of compressors in A/C and refrigeration systems.
Maximum operating conditions of the compressor models are generally defined in the performance curves and will differ with each model. Operating conditions should be controlled so that the discharge gas does not exceed 275°F (135°C) at the discharge service valve and that oil temperature does not exceed 160°F (71°C). For HFC/POE applications the maximum recommended discharge temperature is 250°F (121°C).
3,Product details
| Totaline parts no. | HP | Low Temperature (R-404a) | ||
| Discharge gas (m3/min) | Cooling capacity(50Hz) (Kw) | Cooling capacity(60Hz) (Kw) | ||
| 06DR109 | 2 | 0.21 | 2.2 | 2.64 |
| 06DR013 | 3 | 0.31 | 2.6 | 3.12 |
| 06DR316 | 5 | 0.38 | 3.81 | 4.57 |
| 06DR718 | 5 | 0.43 | 4.96 | 5.95 |
| 06DR820 | 6.5 | 0.47 | 5.44 | 6.53 |
| 06DR724 | 6.5 | 0.56 | 5.72 | 6.86 |
| 06DR228 | 7.5 | 0.66 | 7.56 | 9.07 |
| 06DR337 | 10 | 0.88 | 10.28 | 12.34 |
| 06ER150 | 15 | 1.19 | 12.13 | 14.55 |
| 06ER165 | 20 | 1.53 | 15.71 | 18.55 |
| 06ER175 | 25 | 1.78 | 17.93 | 21.51 |
| 06ER099 | 30 | 2.34 | 24.99 | 29.99 |
4, Our main compressor lines are :
· compressors,
· Copeland scroll compressors: CR,VR, ZB ,ZR, ZF,ZP SERIES
· Copeland Semi-hermetic compressors: DL,D2,D4,D6,D8 SERIES
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Maneurop piston compressors:MT, MTZ, NTZ, MPZ SERIES
· Secop compressor, Carrier(Carlyle) compressor
· Hitachi compressor,Daikin compressor, Sanyo compressor
·Tecumseh compressor, LG compressor, Mitsubishi compressor,
·Toshiba compressor, Panasonic compressor, Embraci Aspera compressor
COMPRESSOR MODEL VOLTAGE MAX RLA X/L OR P/W CONTROL BOX MODEL 06DR1090GA3150 575 2.8 X/L 06DP140 06DR1090GA3250 208/230 8.6 X/L 06DP140 06DR1090GA3650 208/230 3.9 X/L 06DP140 06DR0130CA3150 575 5 X/L 06DP140 06DR0130CA3250 208/230 12.4 X/L 06DP140 06DR0130CA3650 460 6.2 X/L 06DP140 06DR3160CA3150 575 7.7 X/L 06DP140 06DR3160CA3250 208/230 19.3 X/L 06DP140 06DR3160CA3650 460 9.6 X/L 06DP140 06DR7180DA3150 575 7.7 X/L 06DP140 06DR7180DA3250 208/230 19.3 X/L 06DP140 06DR7180DA3650 460 9.6 X/L 06DP140 06DR8200DA3150 575 12.6 X/L 06DP140 06DR8200DA3250 208/230 31.4 X/L 06DP140 06DR8200DA3650 460 15.7 X/L 06DP140 06DR7240DA3150 575 12.6 X/L 06DP140 06DR7240DA3250 208/230 31.4 X/L 06DP140 06DR7240DA3650 460 15.7 X/L 06DP140 06DR2280DA3150 575 15.9 X/L 06DP140 06DR2280DA3250 208/230 39.5 X/L 06DP140 06DR2280DA3650 460 19.8 X/L 06DP140 06DR3370DA3150 575 17.9 X/L 06DP140 06DR3370DA3250 208/230 44.3 X/L 06DP160 06DR3370DA3650 460 22.1 X/L 06DP140 06DM8080GA3150 575 5 X/L 06DP140 06DM8080GA3250 208/230 12.4 X/L 06DP140 06DM8080GA3650 460 6.2 X/L 06DP140
