Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Color: | Blue |
---|---|---|---|
Net Weight: | 42 Kg | Capacity Control: | Fixed Speed |
Motor Protection: | Internal Overload Protector | Oil Charge [L: | 2 |
Type: | MTZ | Phase: | 3 |
Highlight: | evaporator in refrigeration system,air cooler evaporator |

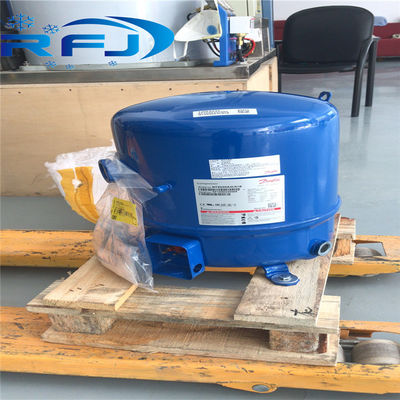

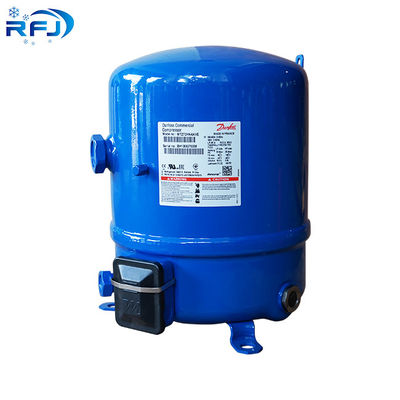

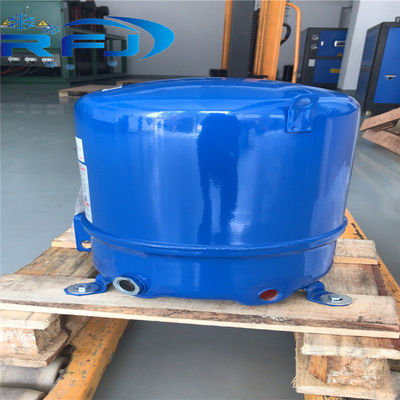

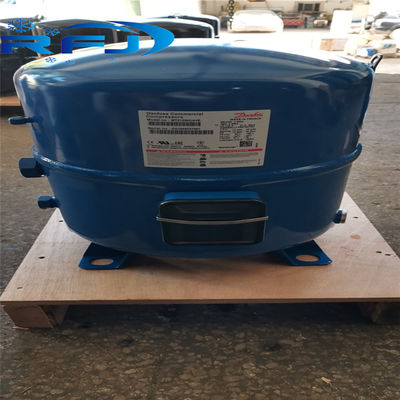

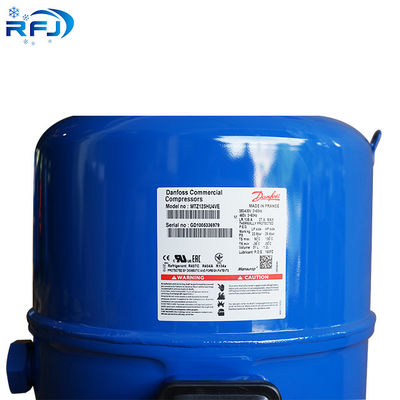

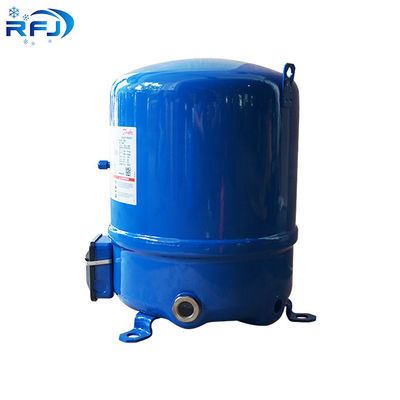

Threaded Fixed speed Reciprocating blue Compressor MT/MTZ80-4VI for industrial refrigeration systems
1, Product Description:
Colour:Blue
Compressor power supply [V/Ph/Hz]:400/3/50 460/3/60
Configuration code:Single
Connection type:Rotolock
Cylinder:2
Diameter [mm]:288 mm
Factory HP [bar]:25 bar
2, product feature and application:
High Temperature. BtuH Capacity @ 45°F Evap. 78103. Compressor
Maneurop MT/MTZ series compressors are of the hermetic reciprocating type and are designed for Medium and high evaporating temperature applications.
3,Product details
Model NO. | Nom HP | Displ. Cc/rev | Capacity R404a(w) | Electrical | Connections | Net weight(kg) | |||||||
MTZ32-5VI | 2.7 | 53.86 | 3230 | 4220 | 3670 | 4540 | 1 | 5.71 | |||||
MTZ36-4VI | 3 | 60.47 | 3800 | 4870 | 3670 | 4540 | 3 | 14.28 | 70 | 5/8 | 1/2 | 25 | 358 |
MTZ36-5VI | 3 | 60.47 | 3800 | 4870 | 3670 | 4540 | 1 | 6.43 | 30 | 5/8 | 1/2 | 25 | 358 |
MTZ40-4VI | 3.3 | 67.89 | 4280 | 5490 | 6900 | 8540 | 3 | 7.14 | 38 | 5/8 | 1/2 | 26 | 358 |
MTZ45-4VI | 3.8 | 76.22 | 4420 | 5840 | 7570 | 9660 | 3 | 6.78 | 48.5 | 7/8 | 3/4 | 36 | 415 |
MTZ51-4VI | 4.2 | 85.64 | 5290 | 6920 | 8910 | 11300 | 3 | 8.21 | 48.5 | 7/8 | 3/4 | 37 | 415 |
MTZ57-4VI | 4.8 | 96.13 | 6060 | 7880 | 10020 | 12520 | 3 | 8.57 | 64 | 7/8 | 3/4 | 37 | 415 |
MTZ65-4VI | 5.4 | 107.71 | 7080 | 9130 | 11540 | 14340 | 3 | 10 | 64 | 7/8 | 3/4 | 37 | 415 |
MTZ73-4VI | 6.1 | 120.94 | 7960 | 10230 | 12900 | 16010 | 3 | 12.14 | 80 | 7/8 | 3/4 | 39 | 415 |
MTZ81-4VI | 6.8 | 135.78 | 9160 | 11720 | 14680 | 18090 | 3 | 13.56 | 80 | 1-1/8 | 3/4 | 42 | 415 |
4.PACKING detail
5.Q&A:
(1)Q:What is the packaging and shipping method?
A: By Sea: Export wooden package,with refrigerant oil .
By Air: Full-sealed wooden package, without refrigerant oil.
(2)Q:Which port does you ship from?
A:Guangzhou/Shenzhen.
(3)Q:How long is the warranty period for this product?
A: 1 year.
6. Our main compressor lines are:
· compressors
· performer compressors: SM, SZ, SH SERIES
· commercial compressors: FR, SC SERIES
· Copeland compressors: VR, ZR, ZB, ZH SERIES
· Maneurop piston compressors:MT, MTZ NTZ, MPZ SERIES
7. Also. original valves, controls and selected parts:
· TE, TDE, TGE, PHT SERIES TERMOSTATIC EXPANSION VALVES
· ETS SERIES EXPANSION VAVLES
· EVR SERIES ECPANSION VAVLES AND
· KP1,KP5,KP15 SERIES PRESSURE CONTROLS
· DCL DML LIQUID LINE FILTER DRIERS
